SmartNode 4830 Getting Started Guide

Analog FXO

Applicable to SmartNodes equipped with FXO ports. The FXO ports are connected to analog phone lines via

cables terminated with RJ-11 connectors (see section

Note

The phone line socket (connector type and pinout) available from the public

network vary from country to country. Refer to technical information avail-

able from your local operator for additional cabling information.

RJ-11, male

Ring (-) 3

Tip (+) 4

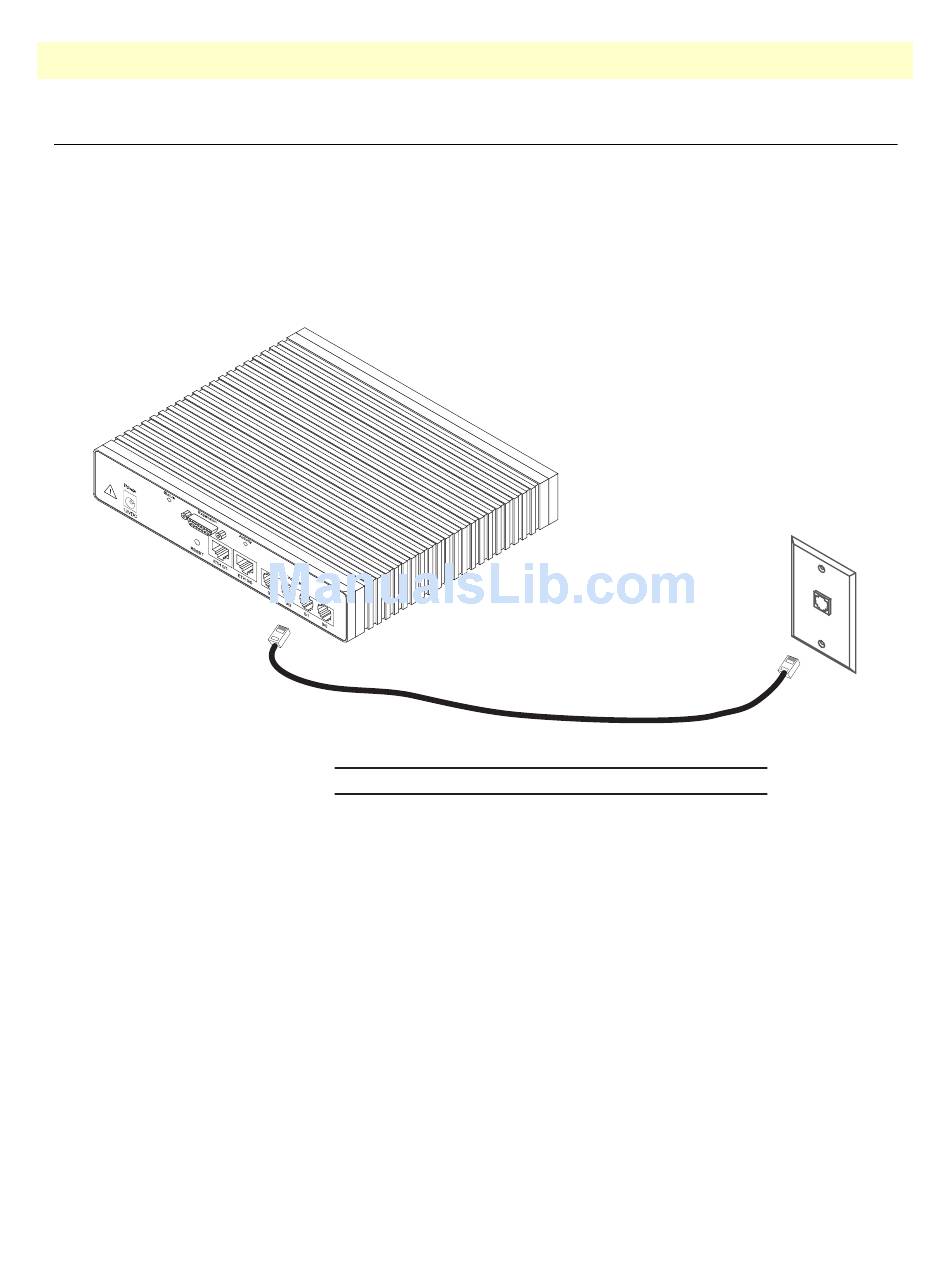

Figure 31. Connecting to an FXO line socket

"FXO port"

on page 79 for details on port pinouts).

C • Cabling

PSTN

wall plate

RJ-11, male

3 Ring (-)

4 Tip (+)
