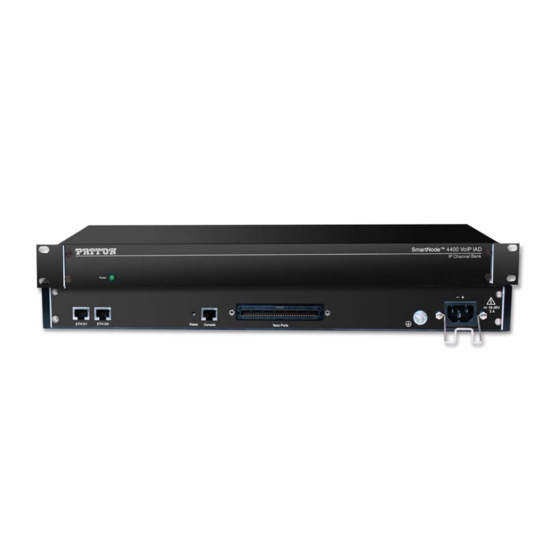

SmartNode 4400
IpChannel Bank
Quick Start Guide
Important
This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial
or residential environment.
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
Part Number: 07MSN4400-QS, Rev. A
Revised: October 8, 2009
Advertisement
Table of Contents
Related Manuals for Patton electronics SmartNode 4400
Summary of Contents for Patton electronics SmartNode 4400
- Page 1 For Quick For Quick Start Installation Start Installation SmartNode 4400 IpChannel Bank Quick Start Guide Important This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment.
- Page 2 Under no condition shall Patton Electronics be liable for any damages incurred by the use of this product. These damages include, but are not limited to, the following: lost profits, lost savings and incidental or consequential damages arising from the use of or...
-
Page 3: Safety When Working With Electricity

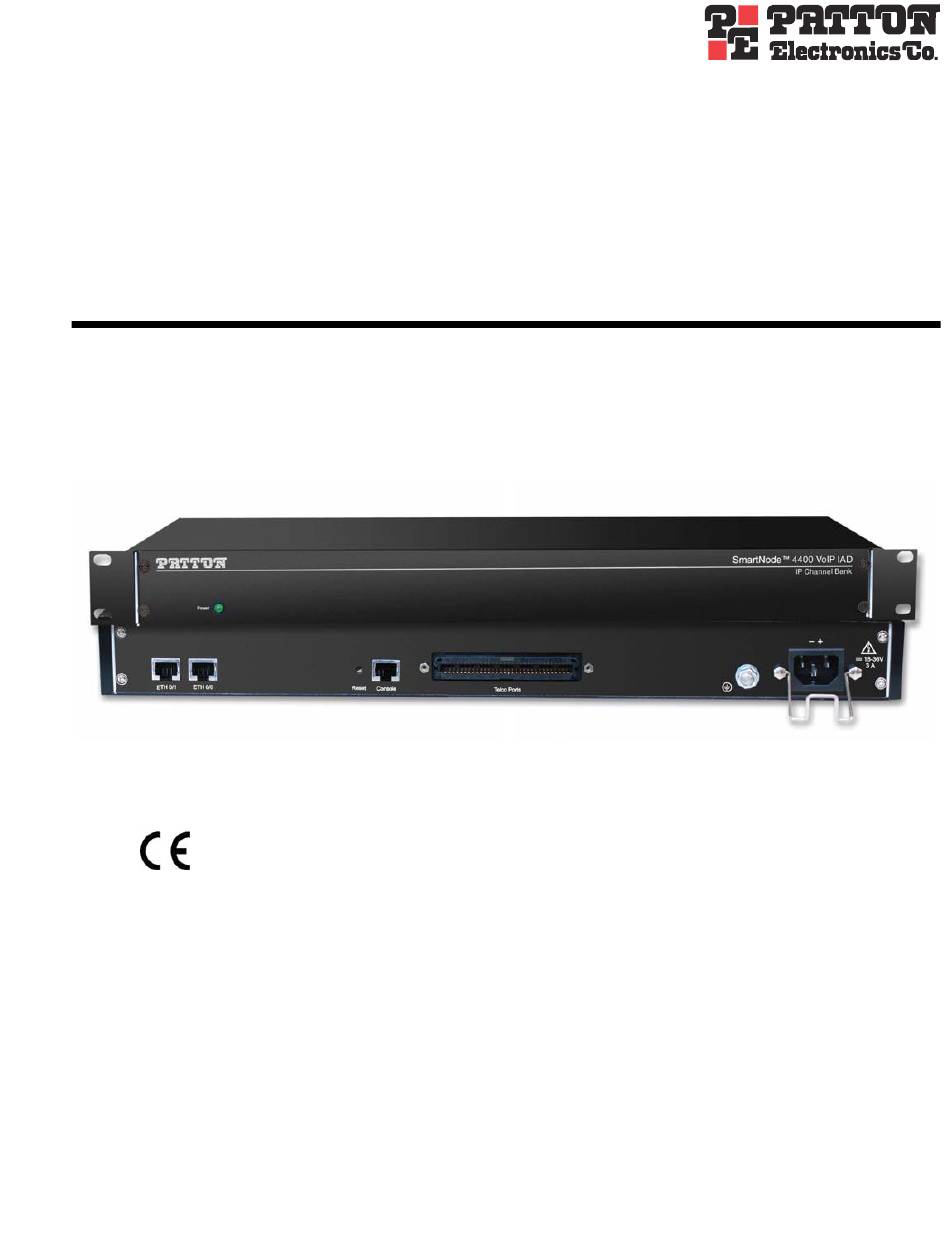

SmartNode 4400 Quick Start Guide Safety when working with electricity The SmartNode contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service per- sonnel. Opening the SmartNode case will void the warranty. WARNING Mains Voltage: Do not open the case the when the power cord is attached. - Page 4 SmartNode 4400 Quick Start Guide Introduction This Quick Start Guide leads you through the basic steps to set up a new SmartNode (see figure 1) and to download a configuration. Please note that this guide does not replace the detailed Software Configuration Guide and the Getting Started Guide on the CD-ROM and available online at www.patton.com/voip.
- Page 5 SmartNode 4400 Quick Start Guide Connecting a PC, logging in, and configuring the LAN IP address Connecting power and configuring the default IP address Connect the SmartNode to the mains power supply using the included power supply and cable. When the RUN LED stops blinking and remains lit, the SmartNode is ready.
-
Page 6: Changing The Ip Address
SmartNode 4400 Quick Start Guide 3. Type administrator as the login prompt and press the Enter key after the password prompt (do not type anything for the password). A prompt will appear consisting of the IP address and > character. - Page 7 SmartNode 4400 Quick Start Guide Connecting the SmartNode to the LAN The 4400 Ethernet ports are auto MDX, therefore a straight-through wired cable can be used for host and switch connections (see figure rt s lc o o le 0 /0...
-
Page 8: Additional Information
SmartNode 4400 Quick Start Guide Downloading a configuration example, adapting it to your network, and loading it onto the SmartNode Patton provides a collection of configuration templates on the CD-ROM that came with the SmartNode device—and also on the support page at www.patton.com/voip/appnotes.shtml—one of which may be simi- lar enough to your application that you can use it to speed up configuring the SmartNode. -
Page 9: Safety Compliance
SmartNode 4400 Quick Start Guide Compliance EMC compliance: • FCC Part 15, Class A • EN55022, Class A • EN55024 • EN-61000-3-2 Harmonics • EN-61000-3-3 Flicker • EN-61000-4-2 ESD • EN-61000-4-3 Radiated Immunity • EN-61000-4-4 EFT • EN-61000-4-5 Surge •... - Page 10 SmartNode 4400 Quick Start Guide NOTES NOTES...
- Page 11 SmartNode 4400 Quick Start Guide NOTES NOTES...
- Page 12 SmartNode 4400 Quick Start Guide NOTES NOTES...
