SmartNode 4830 Getting Started Guide
Ethernet 10Base-T and 100Base-T
Ethernet devices (10Base-T/100Base-T) are connected to the SmartNode over a cable with RJ-45 plugs. The
Ethernet ports support auto-MDI-X, so any standard Ethernet cable will work properly.
SmartNode: RJ-45, male
Tx+
1
Tx-
2
Rx+
3
Rx-
6
Ethernet 10Base-T and 100Base-T
Straight-through cable

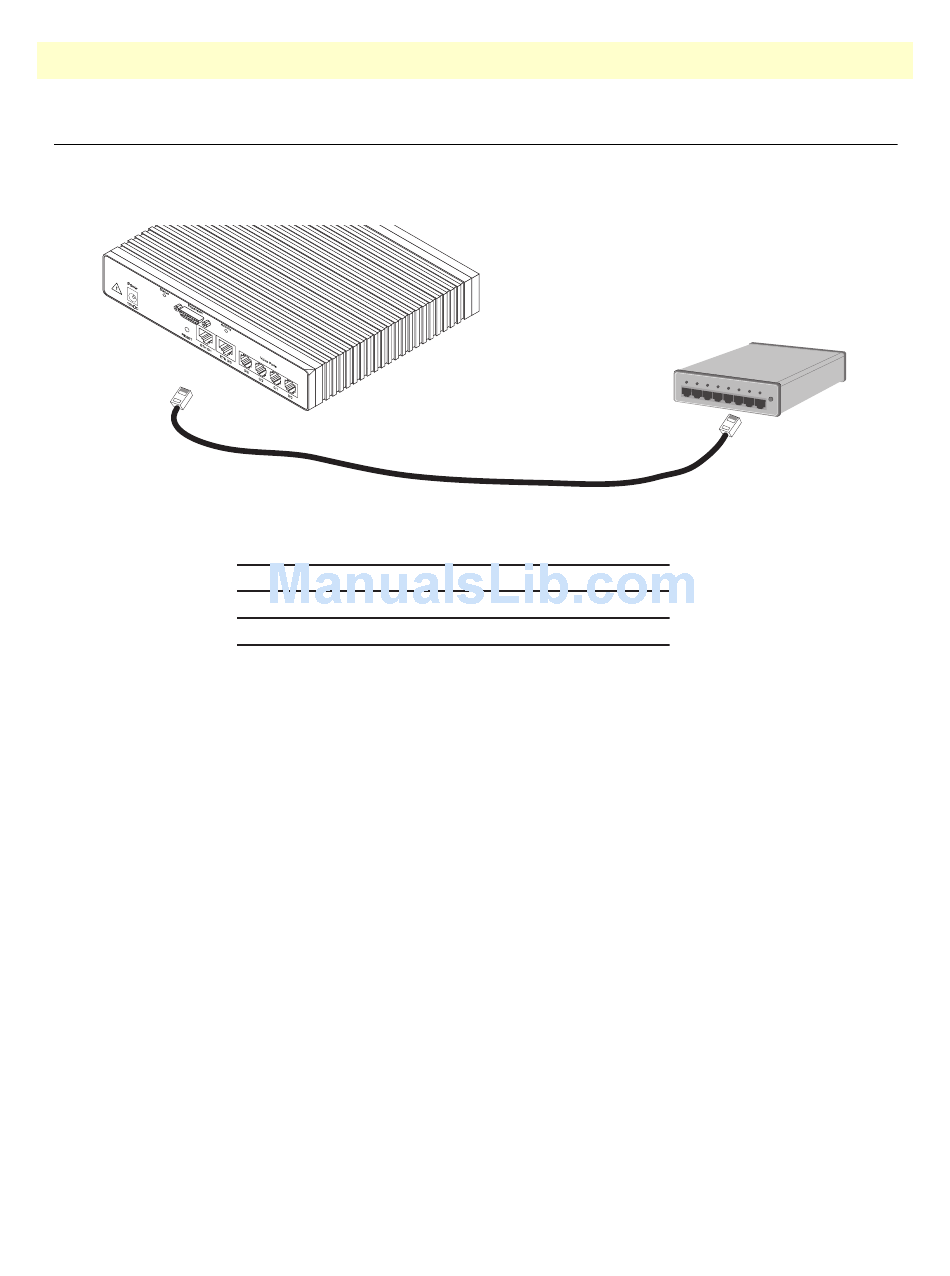

Figure 29. Ethernet straight-through
C • Cabling
Hub
Hub/switch: RJ-45, male
1 Rx+
2 Rx-
3 Tx+
6 Tx-
72
