SmartNode 4830 Series
Analog VoIP Integrated Access
Device
Quick Start Guide
VoIPon
www.voipon.co.uk
Approval
Models that are equipped with telecom interfaces have been approved for connection to the public telecommunication network as listed
under PSTN regulatory compliance.
Important
This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial
or residential environment.
sales@voipon.co.uk
Technical Support: +1 (301) 975-1007
Tel: +44 (0)1245 808195
Sales Office: +1 (301) 975-1000
E-mail: support@patton.com
WWW: www.patton.com
Document Number: 13219U7-001 Rev. C
Part Number: 07MSN4830-QS
Revised: May 16, 2007
Fax: +44 (0)1245 600030
Advertisement
Table of Contents
Related Manuals for Patton electronics SmartNode 4830 Series
Summary of Contents for Patton electronics SmartNode 4830 Series
-
Page 1: Quick Start Guide

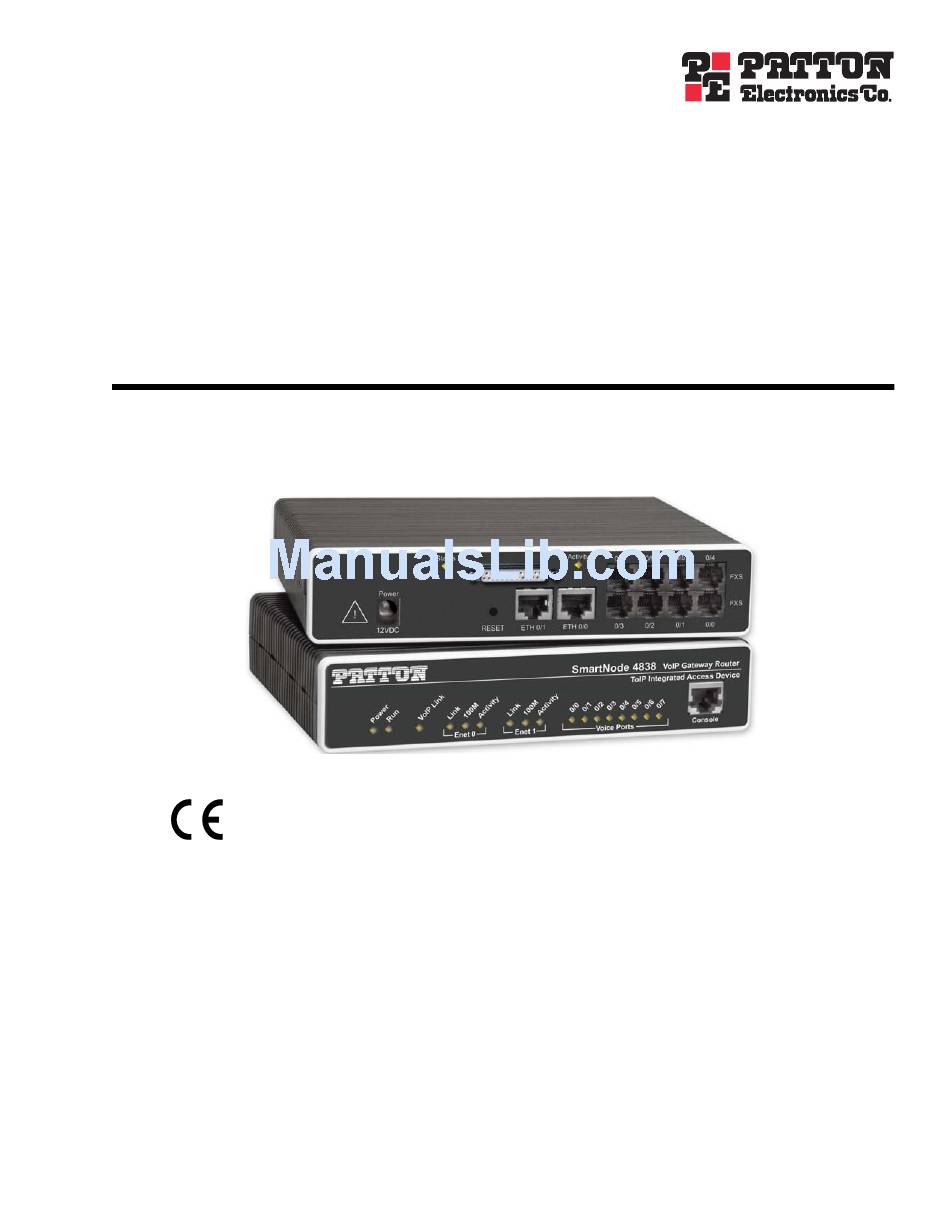

For Quick For Quick Start Installation Start Installation SmartNode 4830 Series Analog VoIP Integrated Access Device Quick Start Guide Approval Models that are equipped with telecom interfaces have been approved for connection to the public telecommunication network as listed under PSTN regulatory compliance. - Page 2 Patton, the Patton logo, and SmartNode are registered trademarks of Patton Electronics Company. The terms SmartWare and SmartView Management Center are trademarks of Patton Electronics Company. All other trademarks presented in this document are the property of their respective owners. Copyright ©...

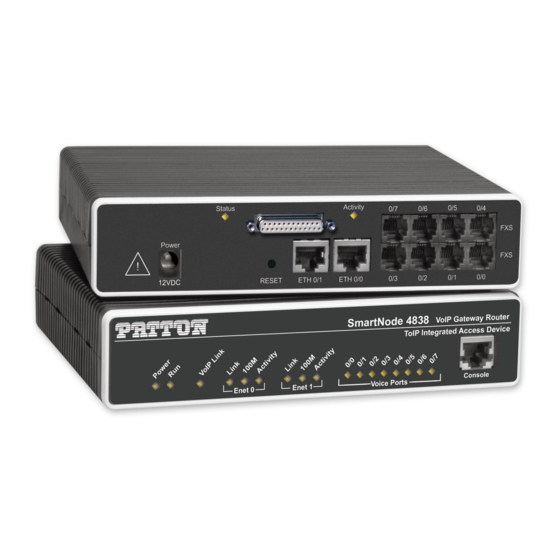

- Page 3 SmartNode 4830 Quick Start Guide Introduction This Quick Start Guide leads you through the basic steps to set up a new SmartNode (see figure 1) and to download a configuration. Please note that this guide does not replace the detailed Software Configuration Guide and the Getting Started Guide on the CD-ROM and available online at www.patton.com/voip Figure 1.
- Page 4 SmartNode 4830 Quick Start Guide Connecting a PC, logging in, and configuring the LAN IP address Connecting power and configuring the default IP address Connect the SmartNode to the mains power supply using the included power supply and cable. When the RUN LED stops blinking and remains lit, the SmartNode is ready.
-
Page 5: Changing The Ip Address
SmartNode 4830 Quick Start Guide 3. Type administrator as the login prompt and press the Enter key after the password prompt (do not type anything for the password). A prompt will appear consisting of the IP address and > character. login: administrator password: 172.16.40.1>... - Page 6 SmartNode 4830 Quick Start Guide Connecting the SmartNode to the LAN The 4830 Ethernet ports are auto MDX, therefore a straight-through wired cable can be used for host and switch connections (see Network interface Host Network interface Host You can check the connection with the ping command to another host on the local LAN. 172.16.1.99(if-ip)[eth0]#ping <IP Address of the host>...
-
Page 7: Additional Information
SmartNode 4830 Quick Start Guide Note If your application is unique and not covered by any of Patton’s configura- tion templates, you can manually configure the SmartNode instead of load- ing a configuration file template. In that case, refer to the SmartNode Series SmartWare Software Configuration Guide for information on configuring the SmartNode device. -
Page 8: Radio And Tv Interference (Fcc Part 15)
SmartNode 4830 Quick Start Guide Compliance EMC compliance: • FCC Part 15, Class A • EN55022, Class A • EN55024 Safety compliance: • UL60950-1/CSA C22.2 No. 60950-1 • IEC 60950-1 • EN60950-1 PSTN regulatory compliance: • FCC Part 68 • CS-03 •... -
