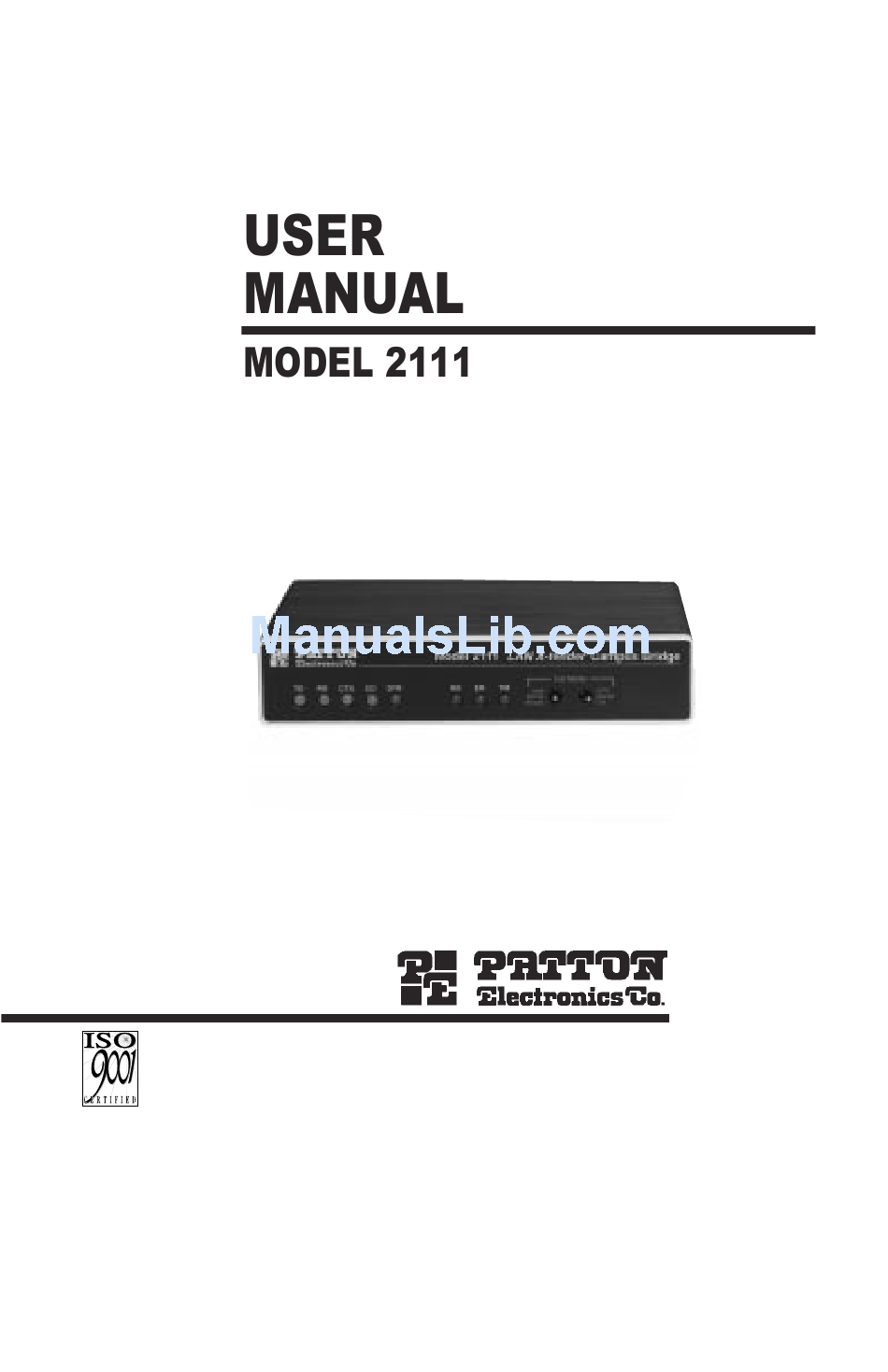

- Page 1 2-User Network Access Bridge Part# 07M2111-A Doc# 033071U, Rev. B Revised 1/23/08 C E R T I F I E D An ISO-9001 Certified Company SALES OFFICE (301)975-1000 TECHNICAL SUPPORT (301)975-1007 http://www.patton.com...
- Page 2 ECTION 1.0 Warranty Information...2 1.1 Radio and TV Interference 1.2. CE Notice 1.3 Service 2.0 General Information ...4 2.1 Features 2.2 Description 2.3 Typical Application 3.0 Installation ...6 3.1 Connecting the Twisted Pair Line Interface 3.2 Connecting the 10BaseT Ethernet Interface 3.3 Connecting Power 4.0 Operation ...10 4.1 Power- Up...
-
Page 3: Radio And Tv Interference
However, there is no guarantee that interfer- ence will not occur in a particular installation. If the Model 2111 does cause interference to radio or television reception, which can be deter-... - Page 4 Patton Electronics' technical staff is also available to answer any questions that might arise concerning the installation or use of your Model 2111. Technical Service hours: 8AM to 5PM EST, Monday through Friday. WARNING! nected to the public telephone network.
-
Page 5: General Information
You already own the twisted pair, why not use it to forward Ethernet data to another Ethernet LAN -- up to 5 miles away! Operating in pairs with a Model 2111-CO (looks like Central Office equipment) on one end and a Model 2111-CP (looks like Customer Premises equipment) on the other end, can automatically forward LAN broadcasts, multi-casts and frames across the 2-Wire twisted pair link. -
Page 6: Typical Application
2.3 TYPICAL APPLICATION The 2111-CO and 2111-CP work together to create an extension between 2 peer Ethernet LANs with all the benefits of MAC bridging. The following diagram shows a typical application Corporate Headquarters Model 2111-CO 2-Wire Leased Line Remote/Satellite Office Model 2111-CP Figure 1. -
Page 7: Connecting The Twisted Pair Line Interface
The Model 2111 requires no configuration. You only need to con- nect the Ethernet interface, line interface between the units and power. This section describes these connections. Power IEC Power Switch Jack Figure 2. Model 2111 Rear Panel. 3.1 CONNECTING THE TWISTED PAIR LINE INTERFACE... - Page 8 Interface jack. This Line Interface is a 2 wire interface. Figure 3. Model 2111 twisted pair line interface. Connect the Line interface of a Model 2111-CO to the Line interface of a Model 2111-CP with a twisted pair cable as...
- Page 9 3.2.2 Connecting the 10Base-T Ethernet Port to a PC (DTE) The Model 21111 10Base-T interface is configured as DTE (Data Terminal Equipment). If you wish to connect the 2111 to another DTE device such as a 10Base-T network interface card in a PC, you must construct a 10Base-T crossover cable as shown in the diagram below.
-
Page 10: Connecting Power
3.3 CONNECTING POWER The Model 2111 is available with a Universal AC power supply that is operable in power environments from 100 to 253VAC. No con- figuration is necessary for the power supply (See Appendix B for domestic and international power plug options). -
Page 11: Front Panel Led Status Monitors
4.1 POWER-UP To apply power to the Model 2111, first be sure that you have read Section 3.3, and that the unit is connected to the appropriate power source. Then power-up the unit using the rear power switch. - Page 12 Test Mode. The unit can be placed in test mode by the local or remote user. Glow red to indicate that the local Model 2111 has not yet connected with the remote. 4.3 ETHERNET LED STATUS MONITORS...
-
Page 13: Test Modes
The Local Line Loopback (LLB) test checks the operation of the local Model 2111, and is performed separately on each unit. Any data sent to the local Model 2111 in this test mode will be echoed (returned) back to the user device. - Page 14 If the test is working properly, the local modem's red “ER” LED will glow. A successful “511/E” test will confirm that the link is in place, and that the Model 2111’s built-in “511” generator and detector are working properly.
- Page 15 PATTON ELECTRONICS MODEL 2111 SPECIFICATIONS LAN Connection: MAC Address Table Size: MAC Address Aging: On-board Memory: Frame Latency: Transmission Line: Diagnostics: LED Status Indicators: Connectors: Power: Temperature Range: Altitude: Humidity: Dimensions: RJ-45, 10Base-T, IEEE 802.3 Ethernet 4096 entries MAC addresses deleted after 8 minutes inactivity 512 KB RAM;...
- Page 16 PATTON ELECTRONICS MODEL 2111 FACTORY REPLACEMENT PARTS AND ACCESSORIES Patton Electronics Model # Description 0805US ...American Power Cord 0805EUR...European Power Cord CEE 7 0805UK ...United Kingdom Power Cord 0805AUS ...Australia/New Zealand Power Cord 0805DEN...Denmark Power Cord 0805FR...France/Belgium Power Cord 0805IN...India Power Cord 0805IS ...Israel Power Cord...
- Page 17 MODEL 2111 INTERFACE PIN ASSIGNMENT 10BASE-T Interface Pin Description (RJ-45 Female Connector) (DTE Configuration) 1 TD+ (data output from 2111) 2 TD- (data output from 2111) 3 RD+ (data input to 2111) 4 (no connection) 5 (no connection) 6 RD- (data input to 2111)
- Page 18 APPENDIX D MODEL 2111 INTERFACE PIN ASSIGNMENT (continued) Line Interface Pin Description (RJ-45 Female Connector) Figure 3. Model 2111 twisted pair line interface. Copyright ©1999 Patton Electronics Company All Rights Reserved 1 (N/C) 2 (N/C) 3 (N/C) 4 (Tip) 5 (Ring)
- Page 20 Dear Valued Customer, Thank you for purchasing Patton Electronics products! We do appreciate your business. I trust that you find this user manual helpful. We manufacture one of the widest selections of data commu- nications products in the world including CSU/DSU's, network termina- tion units, powered and self-powered short range modems, fiber optic modems, interface converters, baluns, electronic data switches, data- line surge protectors, multiplexers, transceivers, hubs, print servers...
