Installing the E1 dual coaxial cables. If the PBX or switch connection provides dual coaxial cables for the E1
connection, the transmit cable from the PBX/switch connects to the RX coaxial connector. Similarly, the
receive cable from the PBX/switch connects to the TX coaxial connector.
WARNING
CAUTION
Installing the VoIP IAD
Pins not listed are not used.
Hazardous network voltages are present in the T1/E1 cables. If you detach
the cable, detach the end away from the IPLink first to avoid possible electric
shock. Network hazardous voltages may be present on the device in the area
of the T1/E1 port, regardless of power being on or off.
To prevent damage to the system, make certain you connect the
T1/E1 cable to the T1/E1 port only and not to any other RJ type
receptacle.

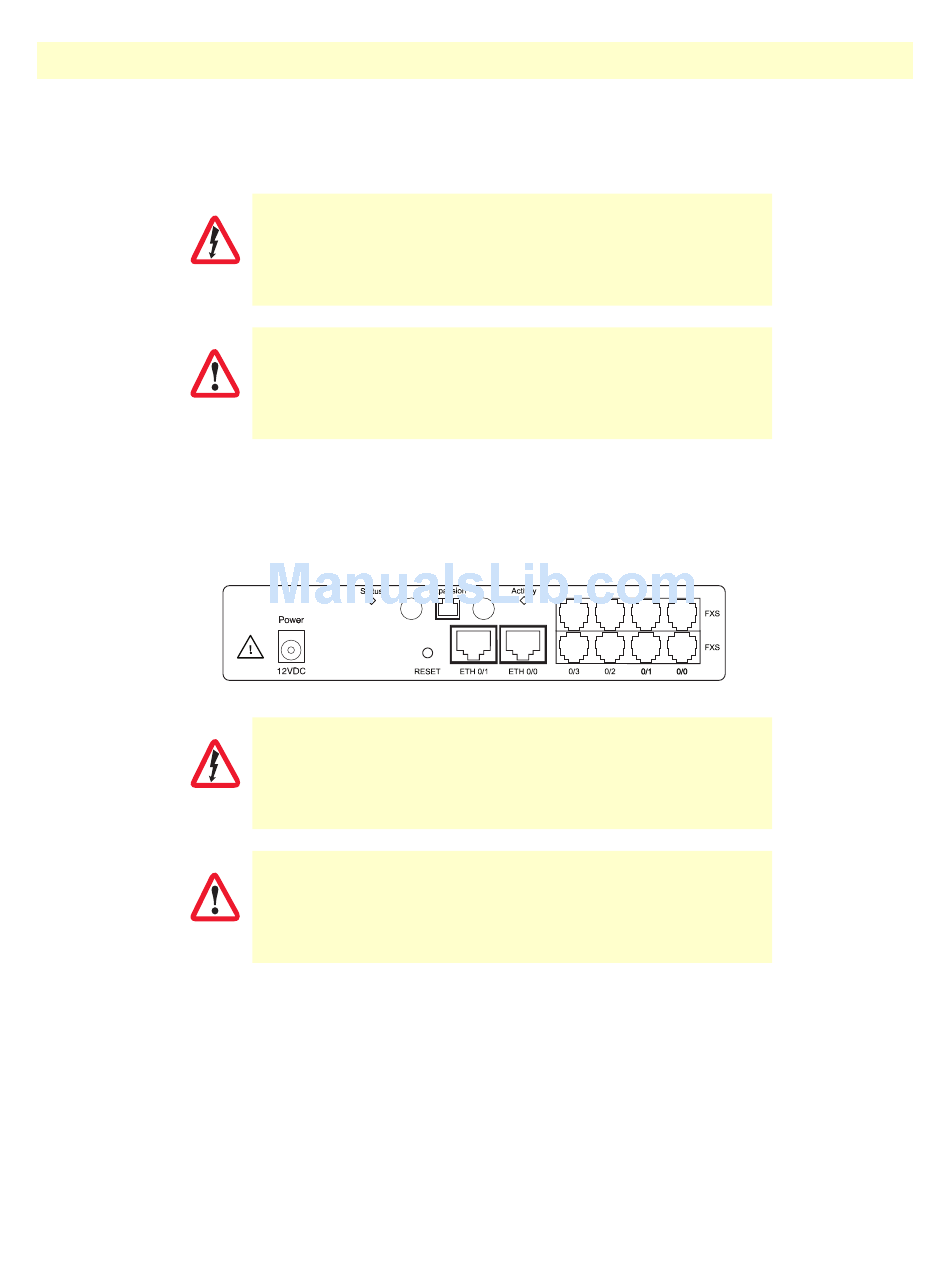

Figure 20. Rear panel of SN4830 T1/E1 -/K Model
RX
Hazardous network voltages are present in the T1/E1 cables. If you detach
the cable, detach the end away from the IPLink first to avoid possible electric
shock. Network hazardous voltages may be present on the device in the area
of the T1/E1 port, regardless of power being on or off.
To prevent damage to the system, make certain you connect the
T1/E1 cable to the T1/E1 port only and not to any other RJ type
receptacle.
3 • Hardware installation
