Summary of Contents for Patton electronics 1090

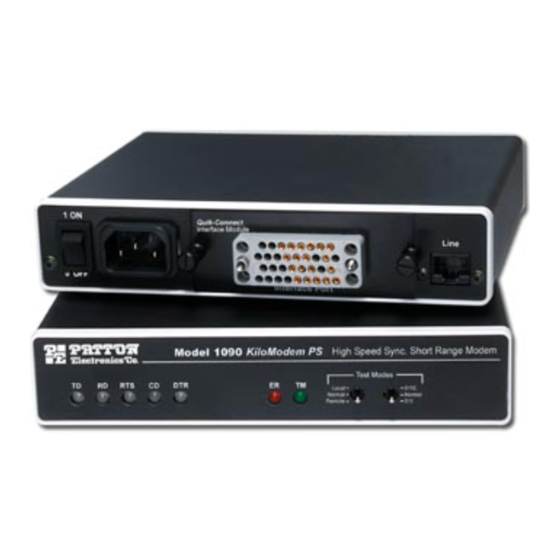

- Page 1 SERVICE MANUAL Model 1090, Model 1092, Model 1093, Model 1095, Model 1185, Model 2500, Model 2510, Model 2520 & Model 2703 Part# 07M1090SVC-C SALES OFFICE Doc# 032010U, (301) 975-1000 Rev. D TECHNICAL SUPPORT Revised 1/22/08 (301) 975-1007 An ISO-9001 http://www.patton.com...
- Page 2 1.0 SCOPE This manual covers Fuse Replacement and Power Line Voltage Settings for Patton Models 1090, 1092, 1093, 1095, 1185, 2500, 2510, 2520 and 2703. WARNING! Only Service Personnel are to access the area inside the plastic shield marked with the electric shock symbol.
- Page 3 2.0 SERVICE PROCEDURES This section describes the procedures for Power Line Voltage Settings and Fuse Replacement for Patton Models 1090, 1092, 1093, 1095, 1185, 2500, 2510, 2520 and 2703. Note: These procedures apply generally to all products listed above, which (products) will henceforth be referred to as “the unit”.
- Page 4 assembly back into the enclosure. Proper installation has been achieved when the all of the indicators and switches are aligned at the front panel and the rear panel bezel is fully mated into the enclosure. DO NOT FORCE THE UNIT INTO THE ENCLOSURE. THIS USUALLY INDICATES THAT THE PC BOARD WAS NOT INSERTED INTO THE 2 SLOTS PROPERLY.
- Page 5 (Step G is for Models 1090, 1092, 1093, 1095, 1185, 2500, 2510 and 2520.) G.) With a flat blade screw driver, gently pry off the fuse cover. DO NOT DISCARD THIS COVER! Pull out the fuse. Replace the fuse and reinstall the fuse cover.
- Page 6 L.) Line up the PC board with the two slots located on the rear panel bottom left and bottom right. Gently slide the PC board/rear panel assembly back into the enclosure. It is properly installed when the all of the indicators and switches are aligned at the front panel and the rear panel bezel is fully mated into the enclosure.
- Page 7 Electronics. You may also use the reference part numbers to order directly from the manufacturer. Patton Part Number Part Description Patton Models 1090, 1092, 1093, 1185, 2500, 2510, 2520, 2703 and 2703-X21 (120/230V switch-selectable units) 08242......Fuse 5x20mm, 100mA, 250V, Time-lag Littelfuse P/N 218.100...
- Page 8 Dear Valued Customer, Thank you for purchasing Patton Electronics products! We do appreciate your business. I trust that you find this user manual helpful. We manufacture one of the widest selections of data communications products in the world including CSU/DSU's, network termination units, powered and self-powered short range modems, fiber optic modems, interface converters, baluns, electronic data switches, data-line surge protectors, multiplexers, transceivers, hubs, print servers and much more.
