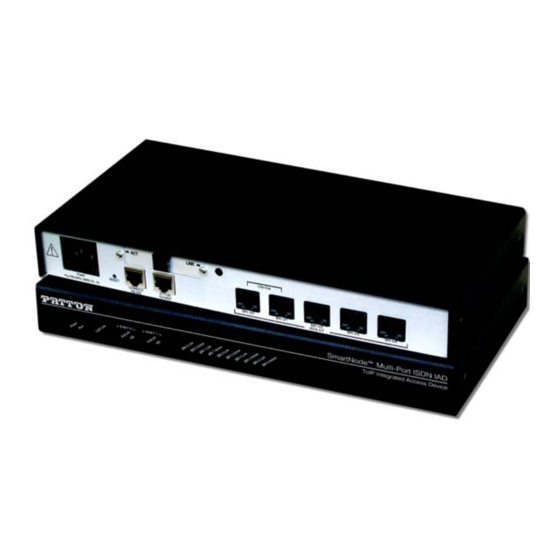

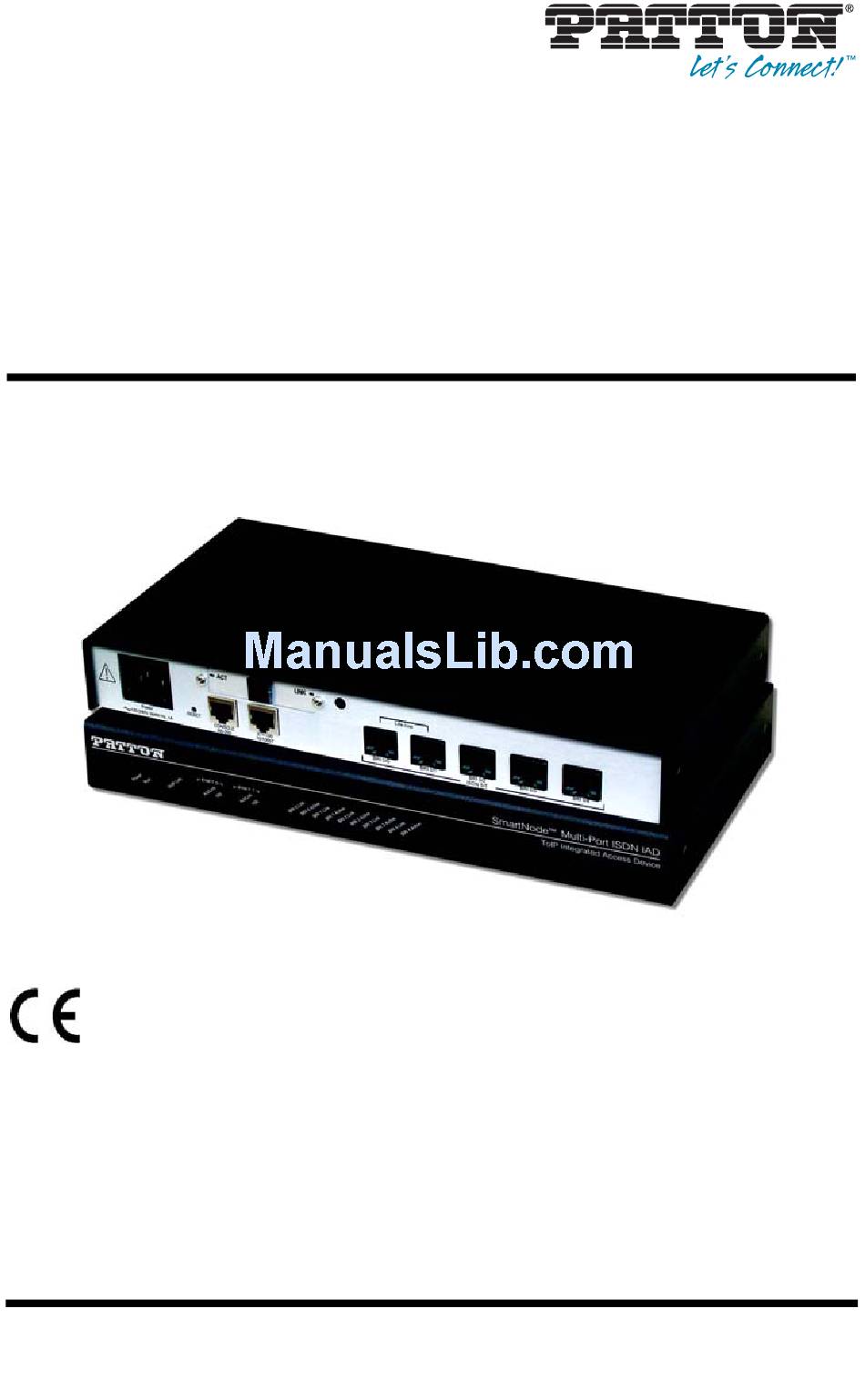

SmartNode 4654 and 4658 Series
ADSL2+ Multiport ISDN VoIP IAD
Quick Start Guide
Important
intended nor approved for use in an industrial or residential environment.
Approval—This device is approved for connection to the public ISDN telecommunication network,
over BRI/S0-ISDN interfaces.
Zulassung—Zugelassen für die Anschaltung an das öffentliche ISDN Telekommunikationnetz an
BRI/S0-ISDN Schnittstellen.
Aprobación—Este aparato está aprobado para conexión a red publica ISDN sobre interfaz BRI/S0.
Approbation—Cet appareil est approuve pour la connexion au reseau ISDN public avec les interfaces
BRI/S0.
Part Number: 07MSN4650A-QS, Rev. C
Revised: February 8, 2012
—This is a Class A device and is intended for use in a light industrial environment. It is not
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
Advertisement
Table of Contents
Related Manuals for Patton electronics SmartNode 4654 Series
Summary of Contents for Patton electronics SmartNode 4654 Series
-
Page 1: Quick Start Guide
SmartNode 4654 and 4658 Series ADSL2+ Multiport ISDN VoIP IAD Quick Start Guide Important —This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment. Approval—This device is approved for connection to the public ISDN telecommunication network, over BRI/S0-ISDN interfaces. -
Page 2: Connecting The Smartnode To Your Laptop Pc
• This device contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified ser- vice personnel. WARNING • Mains Voltage: Do not open the case the when the power cord is attached. -
Page 3: Configuring The Desired Ip Address
Connect the PC’s Ethernet port to LAN (ETH 0/0) port of the SmartNode 4650 ADSL2+. The SmartNode 4650 ADSL2+ Series is equipped with Auto-MDX Ethernet ports, so you can use straight-through Ethernet cables for host or hub/switch connections. (See The SmartNode comes with a built-in DHCP server to simplify configuration. Therefore, to automatically configure the PC for IP connectivity to the SmartNode, configure the laptop PC for DHCP. -
Page 4: Changing The Wan Ip Address
3.2 Login To access the SmartNode, start the Telnet application on your PC. Type the default IP address into the address field: 192.168.1.1. Accessing your SmartNode via a Telnet session displays the login screen. Type the factory default login: administrator and leave the password empty. Press the Enter key after the password prompt. - Page 5 PC hosts on LAN (ETH 0/)) port. The SmartNode 4650 ADSL2+ Series provides an auto-MDX feature for both Ethernet ports, so you can use a straight-through or cross-over cable to connect to a host or a switch (see figure...
-
Page 6: Loading The Configuration (Optional)
5.0 Loading the configuration (optional) Patton provides a collection of configuration templates on the support page at www.patton.com/smart- node—one of which may be similar enough to your application that you can use it to speed up configuring the SmartNode. Simply download the configuration note that matches your application to your PC. Adapt the config- uration as described in the configuration note to your network (remember to modify the IP address) and copy the modified configuration to a TFTP server. -
Page 7: Customer And Technical Support
A.0 Customer and Technical Support Toll-Free VoIP support: call sip:support@patton.com Online support: www.patton.com E-mail support: support@patton.com—answered within 1 business day Telephone support: Standard: +1 (301) 975-1007 (USA), Monday–Friday: 8:00 am to 5:00 pm EST (1300 to • 2200 UTC/GMT) Alternate: +41 (0)31 985 25 55 (Switzerland), Monday–Friday: 8:00 am to 5:00 pm CET (0900 to 1800 •... -
Page 8: Isdn Compliance
interference will not occur in a particular installation. If the SmartNode router does cause interference to radio or television reception, which can be determined by disconnecting the unit, the user is encouraged to try to correct the interference by one or more of the following measures: moving the computing equipment away from the receiver, re-orienting the receiving antenna and/or plugging the receiving equipment into a different AC outlet (such that the computing equipment and receiver are on different branches). -
Page 9: Authorized European Representative
B.6 Zulassung Zugelassen fur die Anschaltung an das öffentliche ISDN Telekommunikationnetz an BRI/S0-ISDN Schnittstellen. B.7 Authorized European Representative D R M Green, European Compliance Services Limited. Avalon House, Marcham Road, Abingdon, Oxon OX14 1UD, UK SmartNode 4654 & 4658 ADSL2+ Quick Start Guide... -
Page 10: Copyright Statement
Copyright statement Copyright © 2012, Patton Electronics Company. All rights reserved. The information in this document is subject to change without notice. Patton Electronics assumes no liability for errors that may appear in this document. Trademarks statement The term SmartNode is a trademark of Patton Electronics Company. All other trademarks presented in this docu- ment are the property of their respective owners. - Page 11 Notes ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________...
- Page 12 Notes ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ SmartNode 4654 & 4658 ADSL2+ Quick Start Guide...
