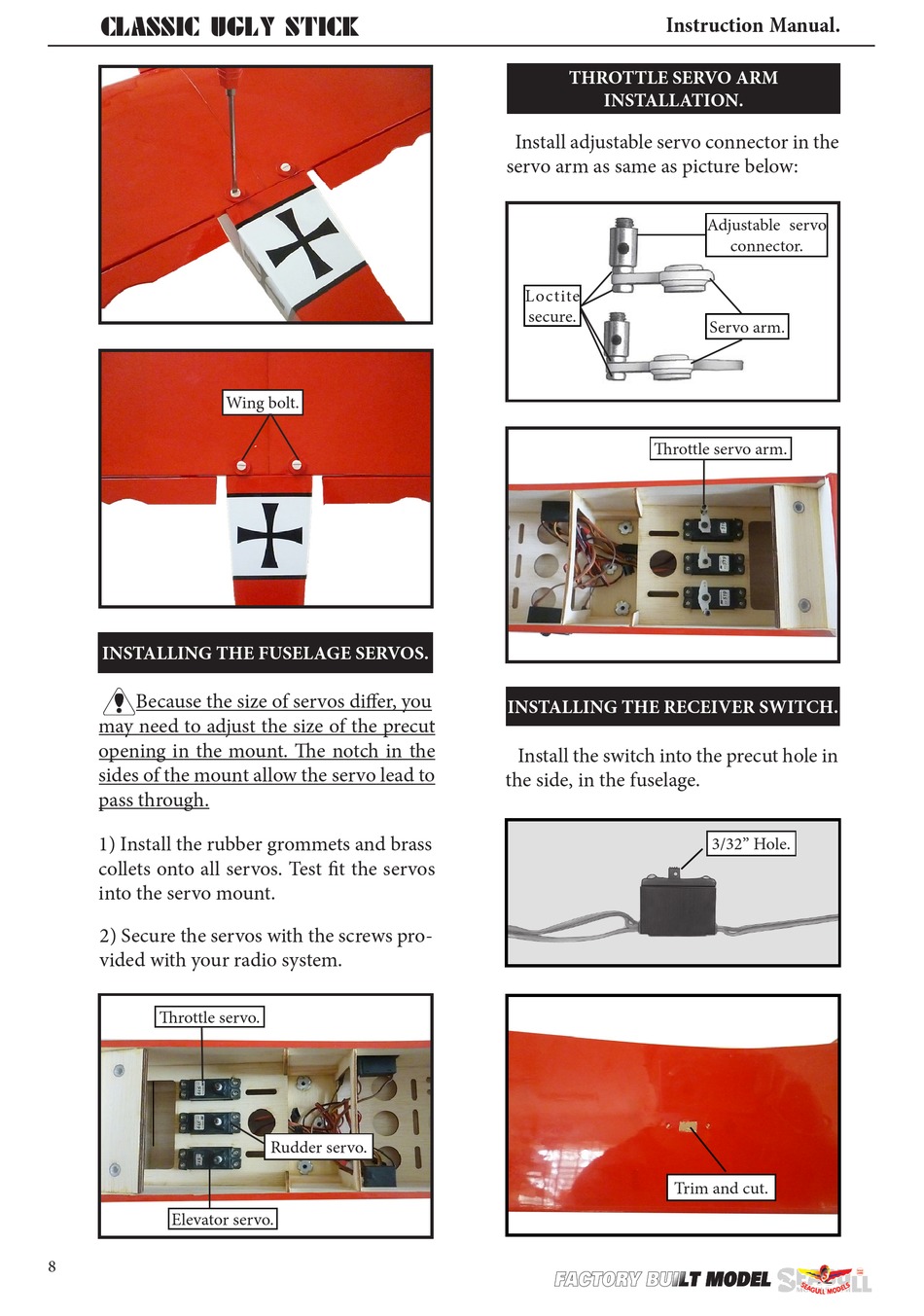

INSTALLING THE FUSELAGE SERVOS.

Because the size of servos differ, you
may need to adjust the size of the precut
opening in the mount. The notch in the
sides of the mount allow the servo lead to
pass through.
1) Install the rubber grommets and brass
collets onto all servos. Test fit the servos
into the servo mount.
2) Secure the servos with the screws pro-
vided with your radio system.
Throttle servo.
Elevator servo.
8
Wing bolt.
Rudder servo.
THROTTLE SERVO ARM
INSTALLATION.
Install adjustable servo connector in the
servo arm as same as picture below:
Loctite
secure.
INSTALLING THE RECEIVER SWITCH.
.
Install the switch into the precut hole in
the side, in the fuselage.
Instruction Manual.
Adjustable servo
connector.
Servo arm.
.
Throttle servo arm.
3/32" Hole.
Trim and cut.
