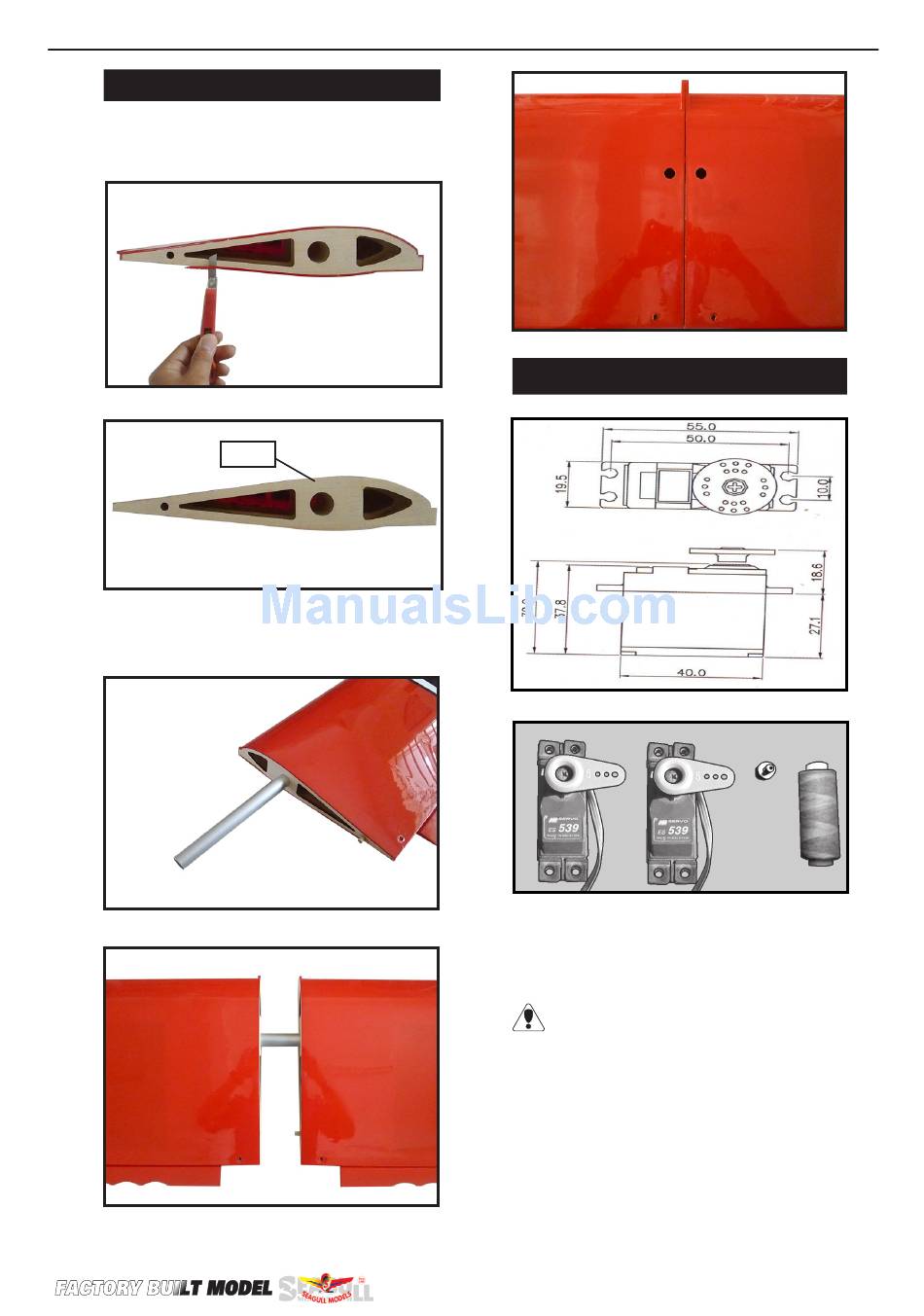

WING ASSEMBLY.

Please see below pictures.

INSTALLING THE AILERON SERVOS.

Epoxy.
Attach the aluminum tube into wing.
Servos
Small weight
.
.
Thread
1) Install the rubber grommets and brass
collets onto the aileron servo. Test fit the
servo into the aileron servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut openingin
the mount. The notch in the sides of the mount
allow the servo lead to pass through.
2) Using a small weight (Weighted fuel pick-
up works well) and thread, feed the string
through the wing as indicated.
