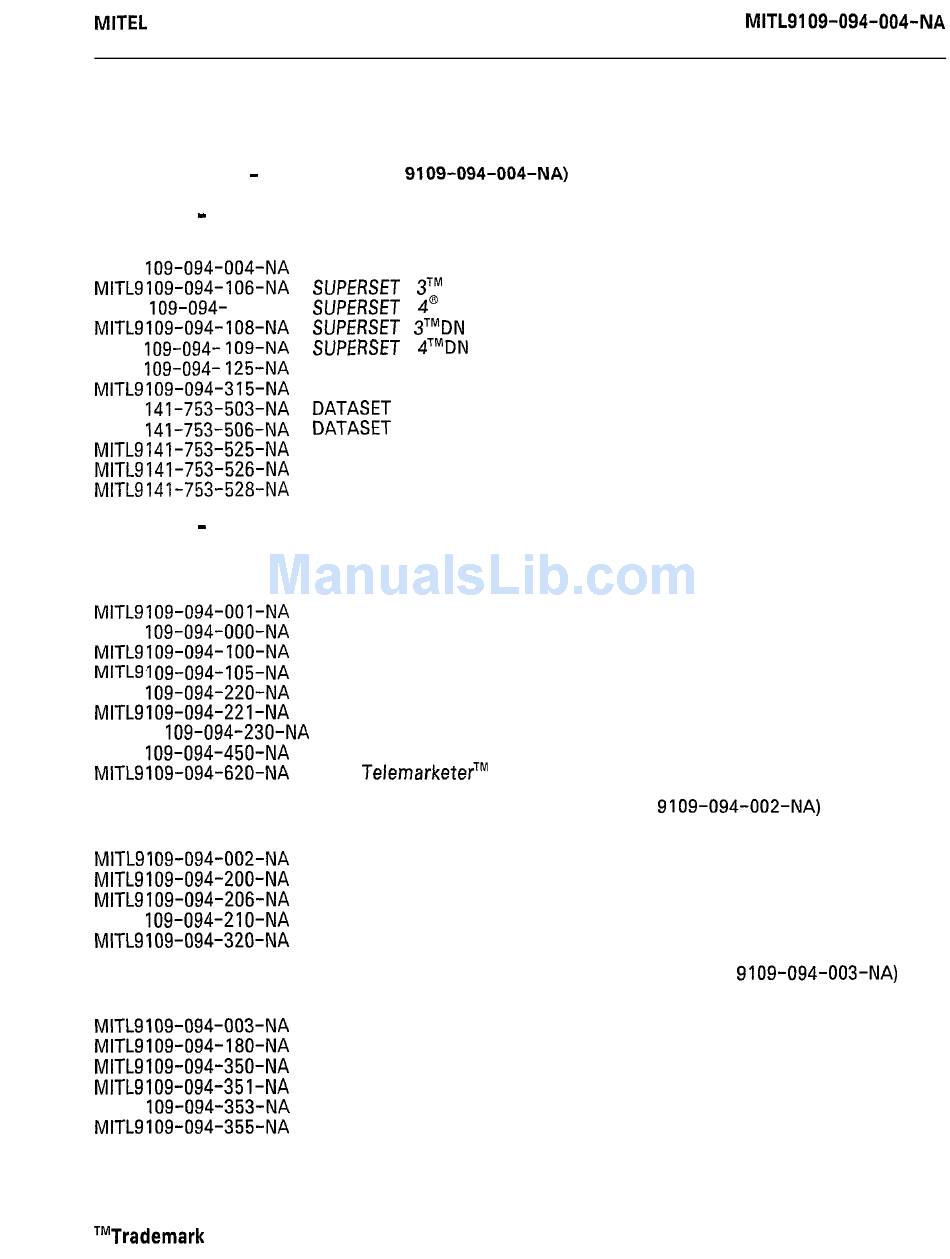

SX-200" DIGITAL
PRIVATE AUTOMATIC BRANCH EXCHANGE (PABX)
CONTROL SHEET - VOLUME 4 (PN 9109-094-004-NA)
PERIPHERALS
INFORMATION
CONTENTS - THIS VOLUME
Section
Number
MITLS 109-094-004-NA
MITLS 109-094- 107-NA
MITLS 109-094- 109-NA
MITLS 109-094- 125NA
MITLS 141-753-503-NA
MITLS 141-753-506-NA
CONTENTS - OTHER VOLUMES
Volume 1
GENERAL DESCRIPTION (PN 9109-094-001 -NA)
Section
Number
MITLS 109-094-OOO-NA
MITLS 109-094-220-NA
M I T L S 109-094-230-NA Tenanting
MITLS 109-094-450-NA
INSTALLATION AND CUSTOMER DATA ENTRY (PN 9109-094-002-NA)
Volume 2
Section
Number
MITLS 109-094-210-NA
ENGINEERING, MAINTENANCE and TROUBLESHOOTING- (PN 9109-094-003-NA)
Volume 3
Section
Number
MITLS 109-094-353-NA
@Copyright 1988, MITEL Corporation. All rights reserved.
@Registered Trademark of MITEL Corporation
Title
Volume 4 Index
Telephone
Telephone
Circuit
Card
Descriptions
Attendant
Console
Description
DATACABINET 9000
DATASHELF 9 100
Modem
Interconnect
Title
Documentation
Index
Description
Features
Description
Automatic Route Selection and Toll Control
Message
Detail
Traffic Measurement
Title
Volume 2 Index
Customer Data Entry (CDE)
Title
Information
General
Maintenance
SECTION MITL9199-094-904-NA
Information
Information
Panel
Recording
Application Package
Information
Issue 1, April 1988
Issue
Issue 1
Issue 1
Issue 1
Issue 1
'Issue 1
Issue 1
Issue 1
Issue 3
Issue 1
Issue 3
Issue 3
Issue 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Mitel SX-200

Summary of Contents for Mitel SX-200

  • Page 1 Section Number Volume 2 Index MITLS 109-094-210-NA Customer Data Entry (CDE) ENGINEERING, MAINTENANCE and TROUBLESHOOTING- (PN 9109-094-003-NA) Volume 3 Title Section Number Information MITLS 109-094-353-NA General Maintenance Information @Copyright 1988, MITEL Corporation. All rights reserved. @Registered Trademark of MITEL Corporation...
  • Page 2 SECTION MITL9109-094-106-NA MITEL STANDARD PRACTICE Issue 1, April 1988 SX-200” DIGITAL PRIVATE AUTOMATIC BRANCH EXCHANGE @Copyright 1988, MITEL Corporation. All rights reserved. of MITEL Corporation @Registered Trademark of MITEL Corporation...
  • Page 3 The information contained in this document is believed to be accurate in all respects but is not warranted by Mite1 Corporation (MITEL). The information is subject to change without notice and should not be construed in any way as a commitment by Mite1 or any of its affiliates or subsidiaries.

  • Page 4: Table Of Contents

    3 Telephone Description CONTENTS INTRODUCTION General ..........1 Reason for Issue .
  • Page 5 SECTION MITL9109-094-106-NA...

  • Page 6: Introduction

    3 Telephone Description INTRODUCTION General This Section describes physical electrical characteris- 1 .Ol tics of the SUPERSET 3TM electronic telephone set. An outline of installation procedures, set operation and maintenance is also in- cluded. Reason for Issue 1.02 This Section is issued to provide information about the SUPER- SET 3 telephone.
  • Page 7 SECTION MITL9109-094-106-NA Page 2...

  • Page 8: Description

    2. DESCRIPTION General 2.01 SUPERSEJ telephone microprocessor-controlled electronic telephone set employing integrated circuitry. Oper- ational features include, single activation, handsfree operation, user-programmed Speed dial keys and automatic selection of the Prime Line. Up to three lines can appear on the SUPERSEJ 3 telephone. Line appearances can be lines, trunks, or multiple appearances of the same line.
  • Page 9 SECTION MITLSI 09-094-106-NA Page 4...

  • Page 10: Functional Description

    3 Telephone Description 3. FUNCTIONAL DESCRIPTION General 3.01 Figure 3-1 shows the SUPERSET 3 Electronic Telephone Set; the face layout is shown in Figure 3-2. A description of the function of each key and display follows. All keys are noninterlocking. Line Select Keys 3.02 During CDE, the three Line Select keys are programmed to access lines and/or trunks.

  • Page 11: Speaker Volume

    SECTION MITL9109-094-I 06-NA speed dial numbers on selected speed dial keys. SPEAKER ON/OFF - This key allows the set user to receive or origi- nate calls without using the handset. Each time this key is pressed the set is switched between handset and Handsfree operation. phone during Handsfree operation, either to prevent transmission of local sound or to improve reception when the set is installed in a noisy environment.
  • Page 12 161 mm (6.31 in.) (8.66 in.) WEIGHT: 1 kg. (2.2 lb) Figure 3-l SUPERSET 3 Electronic Telephone Set Page 7...
  • Page 13 SECTION MITL9109-094-106-NA RINGER VOLUME PITCH LINE IDENTIFICATION C O N T R O L C O N T R O L S W I T C H H O O K SPEAKER VOLUME C O N T R O L SPEAKER - ASSEMBLY INDICATORS...

  • Page 14: Shipping And Receiving

    4. SHIPPING AND RECEIVING General 4.01 The SUPERSET 3 telephone is shipped in a single carton. 4.02 The SUPERSET 3 telephone is disassembled into main assem- bly, handset, handset cord, and line cord. Additionai items in- clude identification cards (for telephone numbers and lines), clear plastic lens these...
  • Page 15 SECTION MITL9109-094-106-NA Page 10...

  • Page 16: Installation

    3 Telephone Description 5. INSTALLATION WARNING ANY CONNECTION OF THIS SET TO AN OFF PREMISE APPLICATION, AN OUT OF PLANT APPLICATION, OR TO ANY OTHER EXPOSED PLANT APPLICATION MAY RESULT IN A SAFETY HAZARD, AND/OR DEFECTIVE OPERATION, AND/OR EQUIPMENT DAMAGE. General 5.01 Installers should not use a hand test telephone (butt-in) to...
  • Page 17 SECTION MITL9109-094-106-NA Page 12...

  • Page 18: Test Procedures

    3 Telephone Description 6. TEST PROCEDURES General Perform these test procedures as operational tests when in- 6.01 stalling a SUPERSEJ 3 telephone after initial installation of a system. 6.02 Whenever a SUPERSET 3 telephone is connected to an ‘operat- ing system, or the system has just been powered up, the test is run automatically and the following results appear.

  • Page 19: Issue

    MITEL STANDARD PRACTICE SECTION MITL9199-094-107-NA Issue 1, April 1988 SX-200” DIGITAL PRIVATE AUTOMATIC BRANCH EXCHANGE (PABX) @Copyright 1988, MITEL Corporation. All rights reserved, of MITEL Corporation @Registered Trademark of MITEL Corporation...
  • Page 20 SECTION MITL9109-094-107-NA NOTICE The information contained in this document is believed to be accurate in all respects but is not warranted by Mite1 Corporation (MITEL). The information is subject to change without construed notice and should not be in any way as a commitment by Mite1 or any of its affiliates or subsidiaries.
  • Page 21 CONTENTS INTRODUCTION ..... General ......
  • Page 22 SECTION MITL9109-094-107-NA LIST OF ILLUSTRATIONS (CONT’D) TITLE PAGE FIGURE Telephone ......3 - 2 4 Telephone and Optional Support .

  • Page 23: Introduction

    1. INTRODUCTION General 1 .Ol This Section describes general, physical electrical characteristics of the SUPERSET 4@ electronic telephone set. It also outlines major features, installation, operation, maintenance information. Reason for Issue 1.02 This Section is issued to describe the SUPERSET 4 telephone. Page 1...
  • Page 24 SECTION MITL9109-094-107-NA Page 2...

  • Page 25: General Description

    2. GENERAL DESCRIPTION General 2.01 The SUP’ERSET 4 telephone is an advanced microprocessor- controlled telephone set, employing digitally-controlled inte- grated circuitry and liquid crystal displays (LCD). 2.02 The SUPERSET 4 telephone provides visual features such as line status indication, time and date display, caller identification and word prompts facilitate...
  • Page 26 SECTION MITL9109-094-107-NA Page 4...

  • Page 27: Physical Description

    4 Telephone information 3. PHYSICAL DESCRIPTION General 3.01 The SUPERSET 4 telephone body and handset are of plastic construction. The dimensions of the SUPERSET 4 telephone, with handset on-hook, are given in Figure 3-l. 3.02 The body and handset are connected together with a modular detachable handset cord, plugged into the side of the body.

  • Page 28: Keypad Module

    SECTION 09-094-l 07-NA Keypad Module 3.09 The keypad module contains a standard 12-key keypad, six softkeys, and four feature keys. Line Selection/Repertory Dial Module 3.10 line selection/repertory dial module contains line select/speed dialing keys, a HOLD key, an LCD line status dis- play, and an LCD feature display.
  • Page 29 95.25 (3.75 in.) 203.2 (8.0 in.) 264.16 (10.4 in.) Figure 3-l SUPERSET 4 Telephone Dimensions Page 7...

  • Page 30: Line Selection/Repertory Dial Module

    SECTION MITL9109-094-107-NA LOUDSPEAKER VOLUME CONTROL SPEAKER RINGER VOLUME CONTROL ASSEMBLY , LINE IDENTIFICATION CARD LINE -SELECT/SPEED CALL BUTTONS ASSEMBLY “ h o l d ’ B U T T O N ‘LINE SELECTION/ REPERTORY DIAL MODULE BUTTON ‘mic. on/off BUTTON MICROPHONE Figure 3-2 SUPERSET 4 Telephone...

  • Page 31: Telephone And Optional Support

    REAR S U P P O R T (OPTIONAL) Figure 3-3 SUPERSET 4 Telephone and Optional Support Page 9...
  • Page 32 SECTION MITL9109-094-107-NA Page 10...

  • Page 33: Functional Description

    4 Telephone Information 4. FUNCTIONAL DESCRIPTION General SUPERSEJ 4 telephone face layout is shown in Figure 4-l. 4.01 The following describes the function of each key and display; all keys noninterlocking. Line Select/Speed Dial Keys 4.02 There are a total of 15 line select/speed call keys. During CDE 14 of these can be programmed as line select keys, (one key is designated as the Prime line).

  • Page 34: Line Status Display

    SECTION MITLSI 09-094-l 07-NA 4.07 After the DISPLAY key is pressed, the actual feature to be displayed is selected by: Pressing a line select/speed dial key - for line or caller identification, or speed dial number Pressing a softkey under the prompt associated with the feature. (To clear the display, press the EXIT softkey).

  • Page 35: Superset

    4 Telephone information 4.15 FEATURES DISPLAY AREA. The words displayed in this area indicate the features that may be selected at any time. Those features which are not in the Class of Service are not displayed. Display of the words is initiated by pressing the DISPLAY FEATURES key.

  • Page 36: Softkey Prompt Display Area

    SECTION MITL9109-094-107-NA 5:ACC CODE Account Code. It may be necessary for a user to enter an account code before being allowed access to a trunk; or a user may require an SMDR record of an account number against a call. In either case, the user must press the SELECT FEATURES key and dial ‘5’.
  • Page 37 Message: CONSECUTIVE ERRS Meaning: This is displayed when a series of data transfer errors has been detected by the host PABX. If the error occurs during a call, the audio may be lost, and the features become inoperative. If the error occurs while the set is idle, no calls can be made or received at the set.

  • Page 38: Telephone Keys And Displays

    SECTION MITL9109-094-107-NA LINE STATUS DISPLAY LINE SELECT/ SPEED DIAL KEYS HOLD KEY FEATURES a b c display select -features FEATURE KEVS speaker on/off Figure 4-1 SUPERSET 4 Telephone Keys and Displays Page 16...

  • Page 39: Superset 4 Telephone Line Status Display Symbols

    MEANING DESCRIPTION SYMBOL LINE IDLE NO SYMBOL IN DISPLAV INCOMING CALL BETWEEN THESE TWO SYMBOLS LINE BUSY DISPLAY SOLID SQUARE AT THIS SET LINE BUSV AT DISPLAY SOLID CIRCLE ANOTHER SET CALL ON HOLD DISPLAY ALTERNATES AT THIS SET BETWEEN SOLID AND CLEAR CALL ON HOLD AT ANOTHER SET ON AND OFF...

  • Page 40: Telephone Features Display Layout

    SECTION MITL9109-094-107-NA FEATURES FEATURES DISPLAY ALPHANUMERIC AREA DISPLAY AREA AREA : : : : : ::::: ::.:: : : : : : . ..m..... .
  • Page 41 4 Telephone Information Line Appearances 4.23 A line is said to “appear” at a SUPERSET 4 telephone if the line has been assigned to one of the available positions on the line status display and can therefore be selected or accessed by the set user.
  • Page 42 SECTION MITL9109-094-107-NA Page 20...

  • Page 43: General

    PACKAGING General 5.01 The SUPERSET 4 telephone is shipped in a single carton, as shown in Figure 5-1. 5.02 On delivery at the destination, carefully unpack the SUPERSET telephone carton and check that all items are present and undamaged. Retain some sets of packaging material for reshipment of any damaged items.

  • Page 44: Telephone And Packaging

    SECTION MITL9109-094-107-NA HANDSET Figure 5-1 SUPERSET 4 Telephone and Packaging Page 22...

  • Page 45: Installation And Maintenance

    4 Telephone Information INSTALLATION MAINTENANCE WARNING ANY CONNECTION OF THIS SET TO AN OFF PREMISE APPLICATION, AN OUT OF PLANT APPLICATION, OR TO ANY OTHER EXPOSED PLANT APPLICATION MAY RESULT IN A SAFETY HAZARD, AND/OR DEFECTIVE OPERATION, AND/OR EQUIPMENT DAMAGE. Note: Do not attempt to use a hand test telephone (butt in) to check 4 telephone lines.

  • Page 46: Maintenance

    SECTION MITL9109-094-107-NA . Install the line identification card and protective lens onto the main assembly. Connect the line cord to the telephone jack. 6.04 Installation of a SUPERSET 4 telephone into a powered-up sys- tem consists of: Ensuring the local modular telephone outlet is connected to a or COV line card or interface.
  • Page 47 EXAMPLE OF TELEPHONE NUMBER IDENTIFIED ON TELEPHONE NUMBER IDENTIFICATION CARD TELEPHONE NUMBER IDENTIFICATION CARD MAIN AiSEMBLY REAR SiPPORT (OPTIONAL) Figure 6-l SUPERSET 4 Telephone Assembly Page 25...
  • Page 48 SECTION MITL9109-094-107-NA Page 26...

  • Page 49: Superset 4 Telephone Test Procedures

    7. SUPERSET 4 TELEPHONE TEST PROCEDURES General Perform these SUPERSEJ b-test 7.01 procedures as operational tests after initial installation of a system. 7.02 Whenever a SUPERSEJ 4 telephone is connected to an operat- ing system, or the system has just been powered up, this test is run automatically.

  • Page 50: Installer Loop Test Routines

    SECTION MITL9109-094-107-NA T A B L E 7 - 1 INSTALLER LOOP TEST ROUTINES Verification Action Notes Step Accessing Test Routines off-hook (handset handsfree). Dial tone returned. Line status display indicates line busy at this set. “TEST! PRESS KEYS” displayed. Dial Loop Test Access Code.
  • Page 51 TABLE 7-l (CONT’D) INSTALLER LOOP TEST ROUTINES Action Verification Step Notes Line Select Keys, Hold Key, Line Status Display, and Tone Ringer Test Press the red hold key and each line The line status display next to each key (except hold) is activated to select key in turn.
  • Page 52 SECTION MITL9109-094-107-NA FEATURES DISPLAY 3:AUT0 ANS NAME SAVE CALL FWD REMINDER READ MSG SPEED CALL S W A P S P L I T ON OFF CAMP ON CALLBACK HANG-UP OVERRIDE SEND MSG CANCEL NO PROGRAM RELEASE - NIGHT ANS P I C K U P I H E L P C A L L REDIAL WITH RELATED LOOP TEST...
  • Page 53 SECTION 09-094-l 08-NA MITEL STANDARD PRACTICE Issue 1, April 1988 SX-200” DIGITAL PRIVATE AUTOMATIC BRANCH EXCHANGE @Copyright 1988, MITEL Corporation. All rights reserved. of MITEL Corporation @Registered Trademark of MITEL Corporation...
  • Page 54 The information contained in this document is believed to be accurate in all respects not warranted by Mite1 Corporation (MITEL). The information is subject to change without notice and should not be construed in any way as a commitment by Mite1 or any of its affiliates .or...

  • Page 55: Line.appearances

    3DN Set information CONTENTS PAGE INTRODUCTION General ..........1 Reason for Issue .
  • Page 56 SECTION 09-094-l 08-NA...

  • Page 57: Introduction

    INTRODUCTION General 1 .Ol This Section describes the general, physical, and electrical characteristics of the SUPERSET 3TMDN electronic telephone set when used as part of an SX-ZOO@ DIGITAL PABX. It also includes a brief description of major features, operation and installation. Reason for Issue 1.02 This Section is issued to describe the SUPERSET 3DN tele- phone.
  • Page 58 SECTION MITL9109-094-l OS-NA Page 2...

  • Page 59: General Description

    3DN Set Information 2. GENERAL DESCRIPTION General 2.01 The SUPERSET 3DN telephone is a desk-top electronic tele- phone with many features that enhance communications modern business environment. It sits on a desk or workstation, and may be used with its handset or in handsfree mode. Figure 2-l shows a SUPERSET 3DN telephone while Figure 2-2 shows the layout of its faceplate.
  • Page 60 SECTION MITL9109-094-108-NA Figuie 2-l SUPERSET 3DN Telephone Page 4...
  • Page 61 3DN Set Information LINE - A P P E A R A N C E KEYS SPEAKER. mute program HANDSET MICROPHONE Figure 2-2 SUPERSET 3DN Faceplate Layout Page 5...
  • Page 62 SECTION MITL9109-094-108-NA Page 6...

  • Page 63: Physical Description

    3DN Set Information 3. PHYSICAL DESCRIPTION General The SUPERSET 3DN telephone dimensions are: 3.01 length 240 mm (9.45 in.) width 155 mm (6.10 in.) height 106 mm (4.17 in.). 3.02 The faceplate of the set is divided into four functional areas: handset, speaker microphone...
  • Page 64 SECTION 09-094-l 08-NA Page 8...

  • Page 65: Functional Description

    4. FUNCTIONAL DESCRIPTION Fixed Function Keys 4.01 Surrounding the dial pad are ten fixed function keys; their func- tions are as follows: HOLD Key: Pressing the red HOLD key places the current call on hard hold. The call may be retrieved by pressing the appropriate line select key.

  • Page 66: Feature Access Keys

    SECTION MITL9109-094-108-NA and returns dial tone. The user dials another number. Hanging up at this point transfers the held party to the dialed number. Pressing the TRANS/CONF key again when the called party answers reconnects the held party, forming a conference. correct internal or external number entered from this set.

  • Page 67: Speed Dial

    Trade Calls (Swap) - the user can alternate between two calls, having one on hold and being in conversation with the other. 4.07 The CDE-programmable feature keys which provide LCD indica- tion include: Auto Answer - the set rings once and then automatically answers the call by switching into handsfree mode.
  • Page 68 SECTION MITL9109-094-108-NA Page 12...

  • Page 69: Telephone Operation

    5. TELEPHONE OPERATION General 5.01 This Part describes basic telephone call handling. Part 6 de- SUPERSEJ scribes additional features available with the telephone. Originating Calls 5.02 To originate a call: Pick up the handset, Press the SPEAKER key. The set selects the prime line. If the prime line is busy, the set selects the first available outgoing line, starting from the lowest line appearance key.

  • Page 70: Call Transfer/Conferencing

    (ringing, busy, or answered), then the user is rung back and reconnected to the party on hold. Ringer Pitch Adjustment The SX-200 DIGITAL System must have an access code as- 5.11 signed to the Tone Demonstration Package. Dial the access code followed by 33.

  • Page 71: Data Cartridge Operation

    3DN Set Information 6. DATA CARTRIDGE OPERATION General This is only a brief description of data call operations possible 6.01 with the SUPERSET 3DN telephone data cartridge and feature keys. F o r m o r e i n f o r m a t i o n o n d a t a c a l l s , r e f e r t o S e c t i o n To originate a data transceiver (DTRX) call from the SUPERSET 3DN telepone: Press the CALL/ATTN key.
  • Page 72 SECTION MITL9109-094-I 08-NA Page 16...

  • Page 73: General

    3DN Set Information 7. LINE APPEARANCES General A line is said to “appear” at a SUPERSEJ 3DN telephone if the 7.01 line has been assigned to one of the twelve available positions on the Line Status Display and can be selected or accessed by the set user.
  • Page 74 SECTION MITL9109-094-108-NA DESCRIPTION MEANING SYMBOL LINE IDLE NO SYMBOL IN DISPLAV DISPLAV ALTERNATES INCOMING CALL BETWEEN THESE TWO SYMBOLS LINE BUSY DISPLAY SOLID SQUARE AT THIS SET LINE BUSY AT DISPLAY SOLID CIRCLE ANOTHER SET CALL ON HOLD DISPLAV ALTERNATES AT THIS SET BETWEEN SOLID AND CLEAR CALL ON HOLD AT...

  • Page 75: Shipping And Receiving

    3DN Set Information 8. SHIPPING AND RECEIVING General SUPERSEJ 3DN telephone is shipped in a single carton. 8.01 8.02 The SUPERSEJ 3DN telephone disassembles into main assem- bly, handset, and handset cord. Additional items include iden- tification cards (for telephone numbers and lines), protective covers for these cards, reference guide, installation guide, and warranty tag.
  • Page 76 SECTION MITL9109-094-l OS-NA Page 20...

  • Page 77: Installation

    3DN Set Information 9. INSTALLATION WARNING ANY CONNECTION OF THIS SET TO AN OFF PREMISE APPLICATION, AN OUT OF PLANT APPLICATION, OR TO ANY OTHER EXPOSED PLANT APPLICATION MAY RESULT IN A SAFETY HAZARD, AND/OR DEFECTIVE OPERATION, AND/OR EQUIPMENT DAMAGE. 9.01 Do NOT connect SUPERSET 3DN telephones in parallel, to stan-...
  • Page 78 MITEL STANDARD PRACTICE Issue 1, April 1988 SX-200” DIGITAL PRIVATE AUTOMATIC BRANCH EXCHANGE @Copyright 1988, MITEL Corporation. All rights reserved, @Registered Trademark of MITEL Corporation...
  • Page 79 The information contained in this document is believed to be accurate in all respects but is not warranted by Mite1 Corporation (MITEL). The information is subject to change without notice and should not be construed in any way as a commitment by Mite1 or any of its affiliates or subsidiaries.

  • Page 80: Packaging

    4DN Telephone information CONTENTS PAGE INTRODUCTION General ..........1 Reason for Issue .

  • Page 82: Introduction

    1 .Ol This Section describes the general, physical, and electrical characteristics of the SUPERSET when used as part of an SX-200@ DIGITAL PABX. It also includes a brief description of major features, operation, and installation. Reason for Issue 1.02 This Section is issued to describe the SUPERSET 4DN tele- phone.
  • Page 83 Page 2...

  • Page 84: General Description

    (LCD). The SUPERSEJ 4DN telephone can be used only with MITEL SUPERSEJ 4DN telephone provides the following features: single key feature activation up to 12 line appearances automatic selection of primary line...
  • Page 85 Page 4...

  • Page 86: Physical Description

    4DN Telephone Information 3. PHYSICAL DESCRIPTION 3.01 The SUPERSET 4DN telephone dimensions are: length 240 mm (9.45 in.) width 155 mm (9.35 in.) height 106 mm (4.17 in.). 3.02 Figure 3-l shows a SUPERSET 4DN telephone, while Figure 3-2 shows the SUPERSET 4DN telephone faceplate.
  • Page 87 Figure 3-l SUPERSET 4DN Telephone Page 6...
  • Page 88 LIQUID CRVSTAL C O N T R O L ..-...._ . . . _ .._ . _ . _ . . _ . _ .._ ___ S O F T K E V S SPEAKER mute...
  • Page 89 Page 8...

  • Page 90: Functional Description

    4DN Telephone Information 4. FUNCTIONAL DESCRIPTION The SUPERSET 4DN telephone face layout is shown in Figure 4.01 3-2. The following describes the function of each key and dis- play; all keys are noninterlocking. 4.02 Immediately below the LCD are six unlabelled keys (softkeys); their functions defined...

  • Page 91: Mute Key

    MUTE Key. The MUTE key, to the right of the volume keys, is used to 4.05 disable the microphone (when in Handsfree mode) so that con- versation near the set is not picked up and heard by the distant party. The microphone is disabled only while the key is pressed.
  • Page 92 DESCRIPTION M E A N I N G SYMBOL LINE IDLE NO SYMBOL IN DISPLAY DISPLAY ALTERNATES INCOMING CALL BETWEEN THESE TWO SYMBOLS LINE BUSY DISPLAV SOLID SQUARE AT THIS SET LINE BUSY AT DISPLAY SOLID CIRCLE ANOTHER SET CALL ON HOLD DISPLAY ALTERNATES AT THIS SET BETWEEN SOLID AND CLEAR...
  • Page 93 The CDE-programmable feature keys which are valid for the 4.15 4DN telephone include: Auto Answer - the set rings once and then automatically answers the call by switching into handsfree mode. DTRX). Refer Section Description more information. u s e d t o t e r m i n a t e t h e c a l l . R e f e r t o S e c t i o n Data Disc Do Not Disturb - incoming calls receive busy tone and the set does...

  • Page 94: Telephone Operation

    4DN Telephone Information 5. TELEPHONE OPERATION General This Part describes basic telephone call handling with the 5.01 able at the set. Originating Calls 5.02 To originate a call: Pick up the handset, or press the SPEAKER key for Handsfree operation. This step can be omitted if Immediate Line Selection is enabled.

  • Page 95: Call Transfer/Conferencing

    Press the New Call softkey. If the set is in handsfree mode, it returns to the idle state; if the handset is in use, the set returns dial tone. If the set has a call on consultation hold, this call is reconnected.
  • Page 96 Adjust the ringer pitch. The Volume UP key increases the pitch; the Volume DOWN key decreases the pitch. Press the SUPERKEY. This saves the pitch setting, stops the ringer and returns the set to its normal state. Page 15...
  • Page 97 Page 16...

  • Page 98: Data Cartridge Operation

    6. DATA CARTRIDGE OPERATION General 6.01 This is only a brief description of data call operations possible with the SUPERSET 4DN telephone data cartridge and feature keys. F o r m o r e information o n d a t a c a l l s , r e f e r t o S e c t i o n To originate a data transceiver (DTRX) call from the SUPERSEJ 4DN telephone:...
  • Page 99 Page 18...

  • Page 100: Line Appearances

    7. LINE APPEARANCES General 7.01 A line is said to “appear” at a SUPERSET 4DN telephone if the line has been assigned to one of the line appearance keys and can be selected or accessed by the set user. A line can be pro- grammed to appear at one set, at more than one set, or more than once at a particular set.
  • Page 101 Page 20...

  • Page 102: General

    4DN Telephone information 8. PACKAGING General SUPERSEJ 8.01 4DN telephone is shipped in a single carton. 8.02 On delivery at the destination, carefully unpack the SUPERSEJ 4DN telephone carton and check that all items are present and undamaged.’ Retain some packaging reshipment damaged...
  • Page 103 Page 22...

  • Page 104: Installation And Maintenance

    4DN Telephone Information 9. INSTALLATION AND MAINTENANCE WARNING ANY CONNECTION OF THIS SET TO AN OFF PREMISE APPLICATION, AN OUT OF PLANT APPLICATION, OR TO ANY OTHER EXPOSED PLANT APPLICATION MAY RESULT IN A SAFETY HAZARD, AND/OR DEFECTIVE OPERATION, AND/OR EQUIPMENT DAMAGE. Installers should not attempt to use a hand test telephone (butt 9.01 in) to check SUPERSET...

  • Page 105: Environmental Specifications

    install the line identification card and protective cover onto the main assembly. Connect the line cord to the telephone jack (which has been connected to the Digital Line Card within the PABX). Environmental Specifications Operating Environment: Ambient Temperature: 4 to 49°C (39.2 to 120°F). Ambient Humidity: 10 to 90% RH, noncondensing.
  • Page 106 SECTION MITLSI 09-094-125-NA MITEL STANDARD PRACTICE Issue 1, March 1988 SX-200” DIGITAL PRIVATE AUTOMATIC BRANCH EXCHANGE (PABX) CIRCUIT CARD DESCRIPTIONS @Copyright 1988, MITEL Corporation. All rights reserved, @Registered Trademark of MITEL Corporation...
  • Page 107 The information contained in this document is believed to be accurate in all respects but is not warranted by Mite1 Corporation (MITEL). The information is subject to change without notice and should not be construed in any way as a commitment by Mite1 or any of its affiliates or subsidiaries.
  • Page 108 Circuit Card Descriptions CONTENTS PAGE INTRODUCTION General ..... . . , ...., 1 Reason for Issue .
  • Page 109 SECTION MITL9109-094-q 25-NA CONTENTS (CONT’D) 12. DTMF RECEIVER/RELAY MODULE ........Brief Description .

  • Page 110: Table Title Page

    Circuit Card Descriptions CONTENTS (CONT’D) PAGE 20. DIGITAL LINE CARD General Description ........Facilities .
  • Page 111 SECTION MITL9109-094-125-NA...

  • Page 112: Introduction

    Card Descriptions INTRODUCTION General 1 .Ol This Section describes the digital cards in the SX-200@ DIGITAL PABX. Figure 1-I shows the front faces of some of these digital cards. Reason for Issue 1.02 This Section is issued to provide a general description of the digital circuit cards in the SX-200 DIGITAL PABX.
  • Page 113 SECTION MITL9109-094-125-NA LINE 10 LINE 2 0 LINE 3 0 TRUNK 0 LINE 4 0 T R U N K 0 z LINE M O D U L E LINE 5Og INDICA- INDICA- LINE 6 E T O R S T O R S LINE 7 :: LINE 90 g...

  • Page 114: Main Control Card

    Circuit Card Descriptions 2. MAIN CONTROL CARD D e s c r i p t i o n 2.01 The Main Control card performs all call processing for the entire system, and peripheral control operations for Bays 1 2. It maintains overall control through communication with the Bay Control card or Peripheral Control Card in each bay.

  • Page 115: Operation

    SECTION MITL9109-094-125-NA Operation 2.03 The Main Control Card (MCC) must not be inserted or removed with the power on. Damage to onboard circuits may result. 2.04 The correct Decryption Module must be installed, or the disk software will not run. 2.05 At power-up the Main Control Card is held reset for about 1 second after the power supply voltages reach their normal...
  • Page 116 Circuit Card Descriptions MODULE Figure 2-1 Main Control Card and Decryption Module Page 5...
  • Page 117 SECTION MITL9109-094-125-NA Page 6...

  • Page 118: Decryption Module

    Circuit Card Descriptions 3. DECRYPTION MODULE Brief Description 3.01 The Decryption Module plugs into the lower front corner of the Main Control Card. The Decryption Module must be present during power-up and system operation. Figure 2-1 shows the location of the Decryption Module on the Main Control Card. There are 3 Decryption Modules for Generic 1003, as follows: FK3 - Basic System FK4 - ACD...
  • Page 119 SECTION MITL9109-094-125-NA Page 8...

  • Page 120: Ram Module

    Circuit Card Descriptions 4. RAM MODULE Brief Description 4.01 The RAM Module carries the dynamic memory required for program storage and call processing work areas. It plugs into a 96-pin DIN connector on the lower part of the Main Control Card. Mechanical support is provided by standoffs.
  • Page 121 SECTION MITL9109-094-125-NA Page 10...

  • Page 122: Dx Module

    Circuit Card Descriptions 5. DX MODULE Brief Description 5.01 The DX Module plugs into the upper back corner of the Main Control Card, using the two 96-pin DIN connectors. Facilities 5.02 Facilities on the DX Module include: Main DX Matrix Peripheral DX Matrix Dial Tone filter Bay 1 and 2 access logic.
  • Page 123 SECTION MITL9109-094-125-NA Page 12...

  • Page 124: Tl Clock Module

    Every 100 ms the Tl Trunk card sends a counter value repre- senting the phase difference between the incoming Tl clock and the SX-200 DIGITAL system clock. On the Tl Clock Module a Digital to Analogue converter generates a corresponding voltage to control the clock oscillator.
  • Page 125 SECTION MITL9109-094-125-NA Page 14...

  • Page 126: Bay Control Card

    Circuit Card Descriptions 7. BAY CONTROL CARD General 7.01 The Bay Control Card is required in the lower rightmost slot of all digital bays, except Bays 1 and 2. On 672-port systems, a Bay Control card is required in every bay. This card must NOT be inserted or removed with the power on.
  • Page 127 SECTION MITL9109-094-125-NA Page 16...

  • Page 128: Peripheral Control Card

    Circuit Card Descriptions 8. PERIPHERAL CONTROL CARD Brief Description 8.01 The Peripheral Control card is located in slot 20 of an analog peripheral shelf. It controls the analog cards on instructions from the Main Control Card. Figure 8-l shows the front faces of the Peripheral Control Card,...
  • Page 129 SECTION MITL9109-094-125-NA CARD - E X T R A C T O R SYSTEM RESET - BUTTON PLANE BUTTON 7-SEGMENT DISPLAYS MASTER R E S E T MAIN CONTROL DIGITAL PERIPHERAL CARD CARD INTERFACE C O N T R O L BAV CONTROL CARD CARD...

  • Page 130: Digital Interface Card

    Circuit Card Descriptions 9. DIGITAL INTERFACE CARD Brief Description 9.01 The Digital Interface card is installed in slot 18 of an analog peripheral shelf. It interfaces the analog shelf to the Main Con- trol card. The card is illustrated in Figure 9-l. Facilities 9.02 Facilities for the Digital Interface card include:...
  • Page 131 SECTION MITL9109-094-125-NA Figure 9-l Digital Interface Card Page 20...

  • Page 132: Universal Card

    Circuit Card Descriptions 10. UNIVERSAL CARD Brief Description 10.01 The Universal card interfaces up to four modules to the back- plane in any of the digital peripheral bays. The card and three of the available modules are illustrated in Figure IO-I. Parts 15 through 18 describe the available modules.
  • Page 133 SECTION MITL9109-094-125-NA 10.08 Each of the four module positions are assigned Universal card tip and ring connections as shown below. Module Tip/Ring Module Position Page 22...
  • Page 134 Circuit Card Descriptions - S W I T C H E&M TRUNK MUSIC ON C O N S O L E HOLD/PAGER M O D U L E MODULE MODULE LED’s MODULE 1 I MODULE 4 A L A R M UNIVERSAL CARD Figure 10-l Universal Card and Modules Page 23...
  • Page 135 SECTION MITL9109-094-125NA Page 24...
  • Page 136 Circuit Card Descriptions 11. CONSOLE MODULE Brief Description 11.01 The Console Module plugs into the Universal Card and provides the interface between the console and the main and bay pro- cessors. Electrical Description 11.02 There are four channels of data to the console, multiplexed into a 256 kb/s PCM line.
  • Page 137 SECTION MITL9109-094-I 25-NA Page 26...
  • Page 138 Circuit Card Descriptions 12. DTMF RECEIVER/RELAY MODULE Brief Description 12.01 DTMF Receiver/Relay Module facilitates reception decoding of DTMF dialing. Main Components 12.02 Major components of the DTMF Receiver/Relay Module are: 8870 DTMF receiver (four) Parallel bus interface Guard time circuit (four) General Purpose relays (two).
  • Page 139 SECTION MITL9109-094-125-NA TABLE 12-1 DTMF CODES DTMF DIGIT Data Output DS3 DS2 Dl DO 1 1 1 0 1 1 0 1 1 0 0 1 0 1 1 1 0 1 0 1 0 0 1 1 0 0 0 0 1 1 1 0 1 1 0 0 1 0 1...
  • Page 140 Circuit Card Descriptions 13. E&M TRUNK MODULE Brief Description 13.01 The E&M Trunk Module plugs into the Universal Card. It pro- vides interface to Type 1 or Type 5 E&M trunks. 13.02 The module has a power rating of 3. Because of this, a maxi- mum of three of these modules can be used per Universal Card.
  • Page 141 SECTION MITL9109-094-125-NA Trunk Types 13.05 The E&M trunk module applies signals to the M lead and moni- tors the E lead. In the on-hook condition, the Type 1 interface grounds the M lead; an open presented to the E lead indicates idle, a grounded E lead indicates an incoming call.

  • Page 142: Electrical Description

    Circuit Card Descriptions 14. MUSIC ON HOLD/PAGING MODULE Brief Description 14.01 The Music on Hold/Paging module provides an input for music on hold, a paging output and a relay to switch an external paging amplifier. The module plugs into the Universal card. The Music on Hold/Paging module has a power rating of 1.
  • Page 143 SECTION MITL9109-094-125-NA Page 32...

  • Page 144: Facilities

    Circuit Card Descriptions 15. DID TRUNK CARD Brief Description 15.01 The DID trunk card contains six l-way Direct Inward Dial cir- cuits. It plugs into the digital peripheral bay. One-Way Direct inward Dialing (DID) provides for direct access to PABX subscriber lines from the public telephone network.
  • Page 145 SECTION MITL9109-094-125-NA grounded and Tip is at -48 Volts. There are two types of controlled address signaling: Delay Dial and Wink Start. 15.08 A Delay Dial signal must start no later than 150 ms after trunk seizure. It is held until the PABX is ready to receive dialing. The minimum hold time is 140 ms.

  • Page 146: Brief Description

    Circuit Card Descriptions 16. LWGS TRUNK CARD Brief Description 16.01 The Loop Start/Ground Start trunk card mounts in any digital bay and interfaces six trunk circuits to the system. The card is 158 mm high x 368 mm long (6.2 in. x 14.5 in.). Figure 16-1 illustrates the card and the LUGS jumper.
  • Page 147 SECTION MITLSI 09-094-l 25-NA MARKED END S H O W N F O R LOOP START TRUNK - - - - - - - - + - - - - - - - + - - - - - - - - TRUNK Figure 16-1 Loop Start/Ground Start Card and Jumper Location Page 36...
  • Page 148 Circuit Card Descriptions Operation - Ground Start 16.08 To place an outgoing call, the Trunk card grounds the Ring lead. The CO responds by grounding the Tip lead. The Trunk then places a termination across Tip and Ring and ungrounds the Ring lead. The CO then sends dial tone, indicating that it is ready to receive dialing.
  • Page 149 SECTION MITL9109-094-125-NA Page 38...

  • Page 150: Facilities

    Circuit Card Descriptions 17. ONS LINE CARD WARNING ANY CONNECTION OF THIS CARD TO AN OFF PREMISE APPLICA- TION, AN OUT OF PLANT APPLICATION, OR TO ANY OTHER EXPOSED PLANT APPLICATION MAY RESULT IN A SAFETY HAZARD, AND/OR DEFECTIVE OPERATION, AND/OR EQUIPMENT DAMAGE. General Description 17.01...

  • Page 151: Message

    SECTION MITL9109-094-125-NA 17.08 When the telephone is off-hook, the line circuit status LED on the front panel lights. The line circuit maintains a constant 26 maximum 600 ohms including the telephone set. 17.09 The ONS line card supports the Message Waiting feature. A high voltage (-140 Vdc) is applied to the Ring terminal of the line, lighting a neon lamp on the subscriber’s set.

  • Page 152: Operation

    Circuit Card Descriptions 18. OPS LINE CARD Brief Description 18.01 The OPS Line Card contains six Off-Premises line circuits. An Off-Premises (OPS) Line circuit is used where the line goes outside the building housing the PABX and may be exposed to ex- traneous high voltages or induced currents (e.g., lightning).

  • Page 153: Electrical Description

    SECTION MITL9109-094-125-NA 18.08 When a call is directed to the set, a relay closes, sending ringing voltage to the set. The ringing relay drops out when loop current flow indicates that the telephone has been answered. (Off-hook condition). Electrical Description 18.09 Line protection comprises high voltage varistors to energy dump ground from Tip and Ring and fusible links incorporated in the battery feed resistors.

  • Page 154: Cov Line Card

    Circuit Card Descriptions 19. COV LINE CARD WARNING ANY CONNECTION OF THIS CARD TO AN OFF PREMISE APPLICA- TION, AN OUT OF PLANT APPLICATION, OR TO ANY OTHER EXPOSED PLANT APPLICATION MAY RESULT IN A SAFETY HAZARD, AND/OR DEFECTIVE OPERATION, AND/OR EQUIPMENT DAMAGE. General 19.01 The COV Card is installed in a digital peripheral bay to interface up to six SUPERSEJ 3TM or SUPERSEJ 4@ telephones to the bay...
  • Page 155 SECTION MITL9109-094-125-NA Electrical Description 19.05 Control information from the backplane is converted to a 32 data stream. The audio in- formation is taken from the 2 Mb/s data link, converted to analog audio combined with control information transmission the set. Conversely, the audio and ASK data signals from the set are separated and converted.

  • Page 156: Superset

    SUPERSET 3TMDN and SUPERSET tains asynchronous line circuits (MITEL Digital Network Interface Circuit), and is a low power digital card which can plug into any slot within a digital bay. 20.02 The card is 158 mm high x 368 mm long (6.2 in. x 14.5 in.).

  • Page 157: Dnic

    Note: The main loop and the bridge tap must NOT have any devices connected to them other than the SX-200 Digital Line Card must and one Digital set or console; the third tip ring pair unterminated. Page 46...

  • Page 158: Electrical Description

    Circuit Card Descriptions 21. POWER FAIL TRANSFER CARD (6 CIRCUIT) Brief Description 21.01 The Power Fail Transfer card allows six telephones, defined by the customer, to place and receive outside calls while the sys- tem is inoperative due to a power failure or other major fault. The sets must be industry standard, rotary dial or DTMF, according to trunk 21.02 Power Fail Transfer cards mount on the right wall of the cabi- net, as seen from the rear door.

  • Page 159: Operation

    SECTION MITL9109-094-125-NA Operation 21.08 Power Fail Transfer occurs under any of the following con- ditions: failure of the commercial AC power supply operation of the force transfer switch failure of the -28 V power supply to the Main Control Card loss of sanity (malfunction) in the Main Control Card.
  • Page 160 Circuit Card Descriptions OPTIONAL LWGS CONVERSION MODULE FOR PFT CARD Figure 21-1 Power Fail Transfer Card Page 49...
  • Page 161 SECTION MITL9109-094-125-NA Page 50...

  • Page 162: Switch Matrix Card

    22.01 The Switch Matrix Card resides in a dedicated card slot directly to the right of the MCC in the control bay of the 672-port SX-200 DIGITAL PABX. It expands the DX switching matrix, the static non-volatile RAM, and the resources of the 7720 Digital Signal Proces- sor.
  • Page 163 SECTION MITL9109-094-125-NA P a g e...

  • Page 164: Tl Digital Trunk Card

    23.08 The telephone company provides on-site Tl termination equip- ment, the Channel Service Unit (CSU). Shielded twisted pair cables are run from the CSU to the SX-200 DIGITAL backplane. The Tl Trunk card...

  • Page 165: Electrical Description

    SECTION MITL9109-094-125-NA Electrical Description 23.10 in the transmit direction, the data from the system PCM link must be converted from the Mite1 ST-BUS format of 32 chan- nels at 2.048 MBit/set to the Tl format of 24 channels at 1.544 To match the number of data channels, the TI card skips every fourth channel on the ST-BUS links.
