Status Reporting Features - ProCurve 6200yl Management And Configuration Manual

Using the ProCurve Web Browser Interface

Status Reporting Features

Status Bar
(page 5-22)
Tab Bar
Button Bar
Port Utiliza-
tion Graphs
(page 5-17)
Port Status
Indicators
(page 5-19)
Alert Log
(page 5-20)
Alert Log
Control Bar

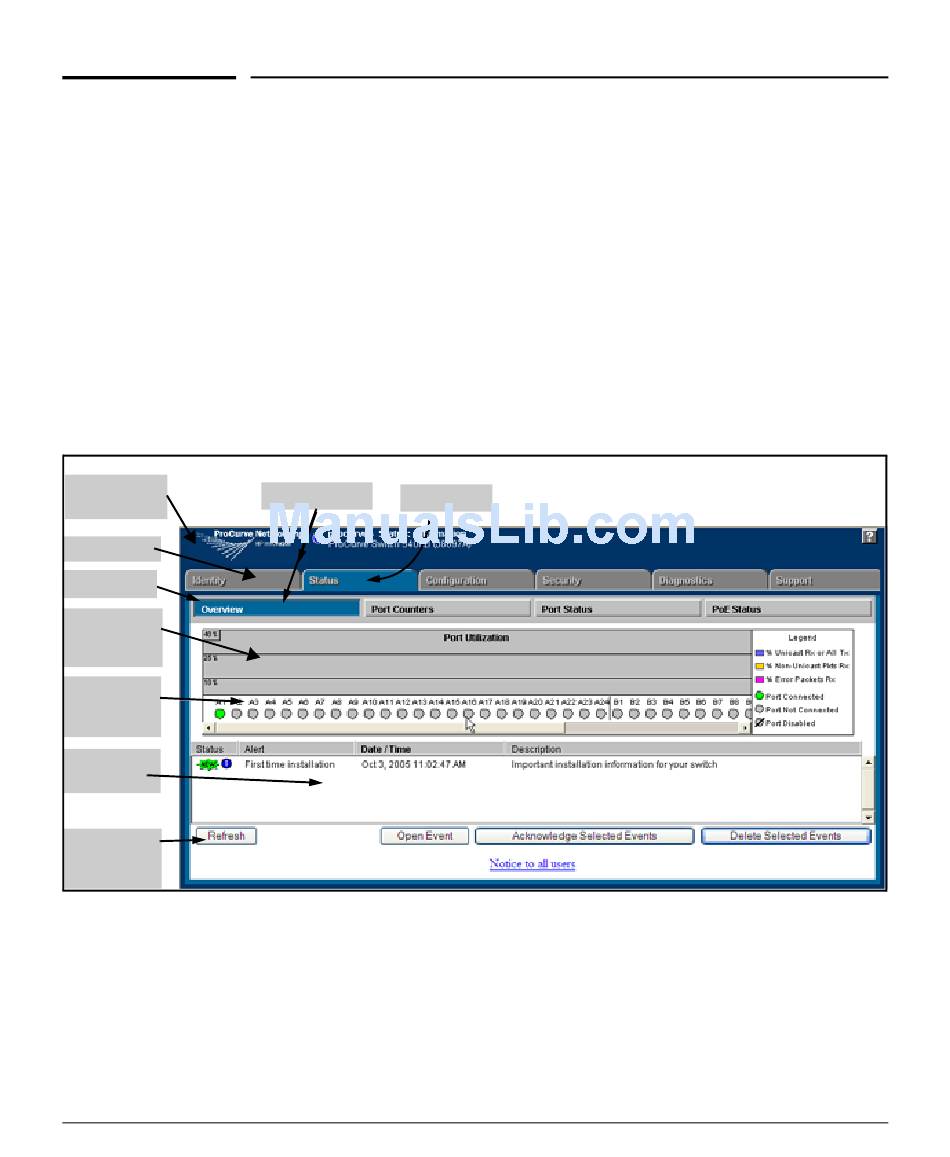

Figure 5-8. The Status Overview Window
5-16
Status Reporting Features
Browser elements covered in this section include:
The Overview window (below)
■
■ Port utilization and status (page 5-17)
■ The Alert log (page 5-20)
The Status bar (page 5-22)
■
The Overview Window
The Overview Window is the home screen for any entry into the web browser
interface.The following figure identifies the various parts of the screen.
Active Button
Active Tab
Policy Management and Configuration. PCM can perform network-wide
policy management and configuration of your switch. The Management Server
URL field (page 5-13) shows the URL for the management station performing
that function. For more information, refer to the documentation provided with
the PCM software.
