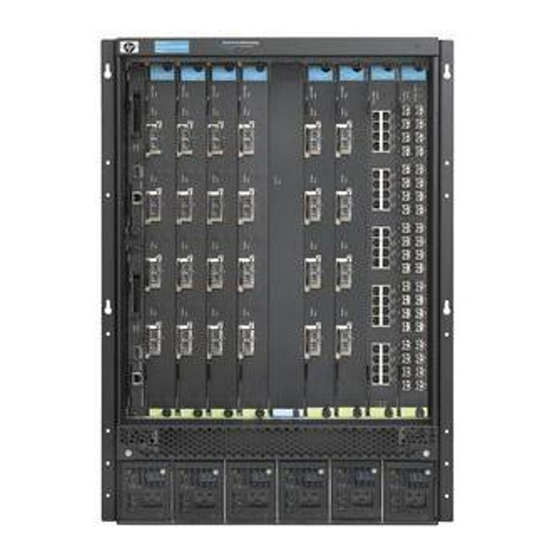

Read Me First
for the ProCurve Routing Switch 9408sl
Covering Software Release 02.1.00c (July 2005)
Contents:
■
■
Software Updates Are Free! . . . . . . . . . . . . . . . . . . . 2
■
from the Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
■
Updating Software . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important! Required Fan Threshold Settings

Users Must Change SFM Defaults in 02.1.00c
Although software version 02.1.00c corrected the default fan temperature thresholds for interface modules, it did not
correct the values for the Switch Fabric Module (SFM). Users are advised to modify the SFM fan temperature
thresholds and to save that setting in the config file. HP recommends the same thresholds for the SFM that are now
recommended (and are now defaults) for the interface modules. Use these commands to apply and save the new
recommended SFM fan temperature thresholds:
ProCurveRS(config)# fan-threshold switch-fabric low 50 med 46 55 med-hi 51 60 hi 56 85
ProCurveRS(config)# write mem
The ProCurve 9408sl Routing Switch exceeds 100 lbs. (44 kg) without
modules and power supplies installed. To avoid personal injury, re-
duce weight of chassis by removing all modules and power supplies
from chassis prior to lifting or moving.
When handling, two or more people are required.
Product Documentation Set. . . . . . . . . . 11
■
■
Power Supplies . . . . . . . . . . . . . . . . . . . . 13
Included Components. . . . . . . . . . . . . . . 14
■
Less Work, More Network
http://www.procurve.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9408sl and is the answer not in the manual?

Questions and answers

Related Manuals for ProCurve 9408sl

Summary of Contents for ProCurve 9408sl

  • Page 1: Table Of Contents

    ProCurve Routing Switch 9408sl Covering Software Release 02.1.00c (July 2005) The ProCurve 9408sl Routing Switch exceeds 100 lbs. (44 kg) without modules and power supplies installed. To avoid personal injury, re- duce weight of chassis by removing all modules and power supplies from chassis prior to lifting or moving.

  • Page 2: Software Updates Are Free

    Register for Automatic Notification of Updates. From the free software updates page you can also register to automatically receive email notice of new updates for your managed ProCurve networking products. Just follow the instructions on that page for how to receive the update notices.

  • Page 3: Downloading Switch Software And Documentation From The Web

    The sequence for a complete system upgrade is: A. Upgrade the management module’s monitor and boot images B. Upgrade the management module’s ProCurve software image C. Upgrade the interface module’s monitor and boot images D. Upgrade the interface module’s ProCurve software image E.
  • Page 4 PCMCIA flash card inserted in slot 1 or 2. 2. Copy the new ProCurve software image from the TFTP server or a flash card in slot 1 or 2 to the management module’s code flash. To perform this step, enter one of the following commands at the Privileged EXEC level of the CLI: •...
  • Page 5 1 or 2. 2. Copy the new ProCurve software image from the TFTP server or a flash card in slot 1 or 2 to all interface modules or an interface module in a specified chassis slot. To perform this step, enter one of the following commands at the Privileged EXEC level of the CLI: •...
  • Page 6 (called lp-primary-0 or lp-secondary-0) and stores it in its code flash. If you copy the new ProCurve software image to a specified chassis slot, the management module does not make a copy of the image.
  • Page 7 | slot2 lp <image-name> fpga-pbif <chassis-slot-number> If you specify the module-type (e.g., 4x10g), the ProCurve 9408sl copies the PBIF images for that particular module only. If you specify all without a module-type, the system copies the appropriate PBIF images to their corresponding modules.
  • Page 8 <slot-number> command at the Privileged EXEC prompt. Downloading a New Image Using a Script With software version 02.1.00c, you can create a script to download new software images to your ProCurve 9408sl. Use this command to download an image using a script: syntax: copy tftp system <ip_addr>...
  • Page 9 # Note: If one <spec_line> fails to parse, or it fails to copy, the script is aborted. Sample Install Script The following example script installs software files on a ProCurve 9408sl using files previously stored on a TFTP server. The script must be stored in the same directory as the image files. Be sure to change the script to match your needs, as noted in the script comments.
  • Page 10 # ii. If any line fails, script aborts! Users MUST verify results! # iii. After files are installed, 9408sl must be rebooted for the upgrade to take effect. # SYNTAX: copy tftp system <ip-addr> <script-filename>...

  • Page 11: Product Documentation Set

    This guide is included on the Documentation CD shipped with your HP product. The latest version is also available on the ProCurve website. Topics Specific to the 9300 Series Routing Switches •...
  • Page 12 Installation and Basic Configuration Guide for the ProCurve 9408sl Routing Switch This is a printed guide that describes the ProCurve 9408sl and provides procedures for installing modules and AC power supplies into the ProCurve 9408sl, cabling the 10 Gigabit Ethernet interface ports, and performing a basic configuration of the software.

  • Page 13: Powering Up A Device Having Multiple Power Supplies

    This is a printed instruction sheet describing the correct preparation and procedure for removing and installing XENPAK optics on the J8174A 2-port 10 Gigabit Ethernet module. This sheet is shipped with the Procurve 9300M Management modules and is also available on both the Documentation CD shipped with your HP product and on the ProCurve website.

  • Page 14: Included Components

    The mark is your assurance that the power cord can be used safely with the switch or routing switch. Console Cable Connects a terminal or PC to a serial port on a ProCurve 9408sl management module for direct-connect access to management using the Command Line Interface (CLI). CESD Grounding Tap Kit Use the Cable Electrostatic Discharge (CESD) Grounding Tap before connecting Category 5 or better UTP copper networking cables to the routing switch.
  • Page 15 -- The page left blank intentionally--...
  • Page 16 Techncial information in this document is subject to change without notice. © Copyright 2005 Hewlett-Packard Development Company, L.P. All rights reserved. Reproduction, adaptation, or translation without prior written permision is prohibited except as allowed under the copyright laws. July 2005 Manual Part Number 5092-1797 Printed in USA...
