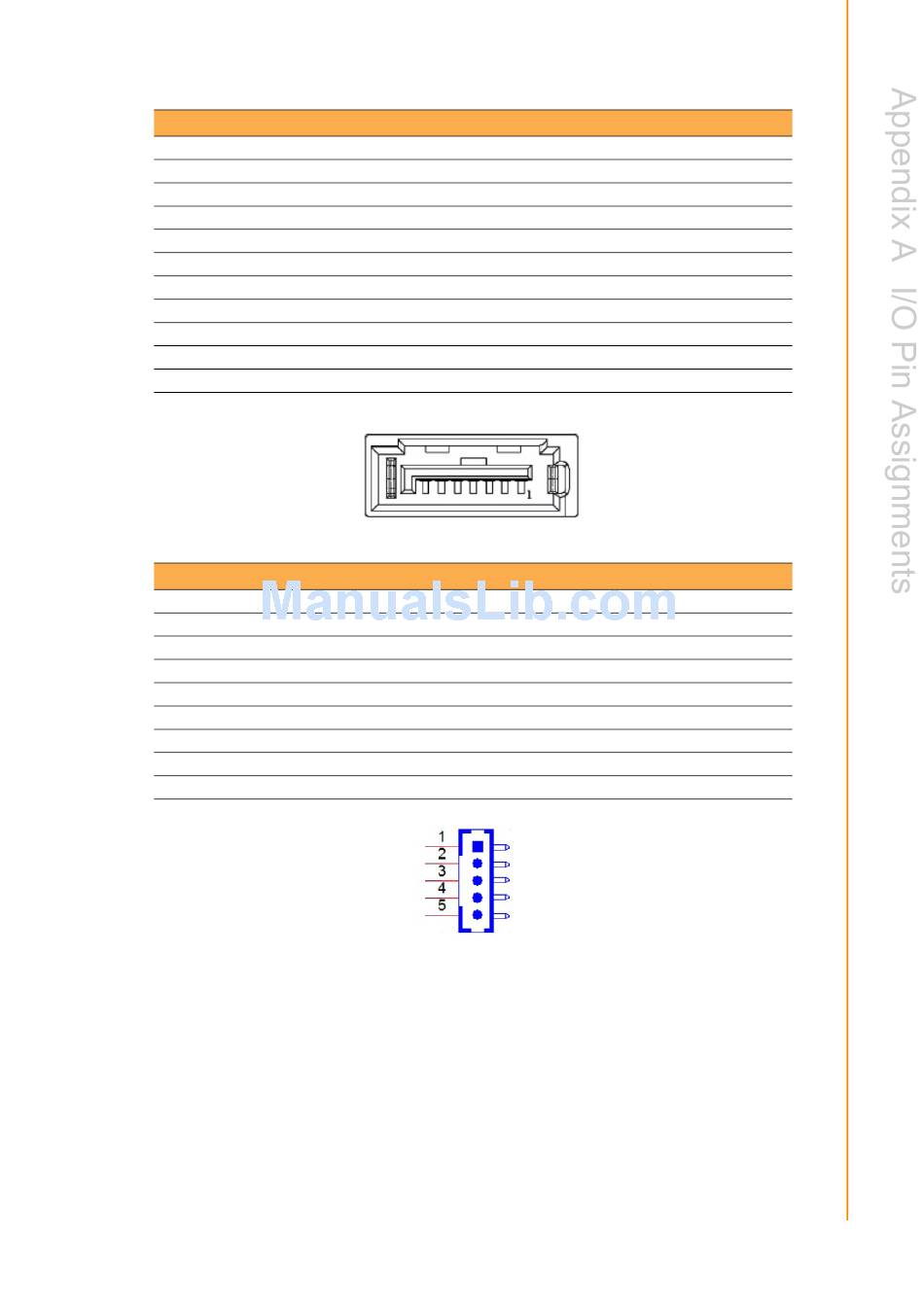

Table A.5: CN5: SATA

Part Number 1654004659
Footprint WF_5P_98_BOX_D
Description Wafer Box 5P 2.5 mm 180D(M) DIP 2503-WS-5
Pin Pin Name
1 GND
2 TX+
3 TX-
4 GND
5 RX+
6 RX-
7 GND
Table A.6: CN9:Touch
Part Number 1655005110
Footprint WF_5P_100_RA_D
Description Wafer 5P 2.54 mm 90D(M) DIP 2542-WR-5
Pin Pin Name
1 Y+
2 Y-
3 SENSE
4 X+
5 X-
