3.4 WLAN Installation

Reserve two locations for the external antenna, one at the I/O port, the other on the
rear cover. Users can choose the location according to their requirements.
1.

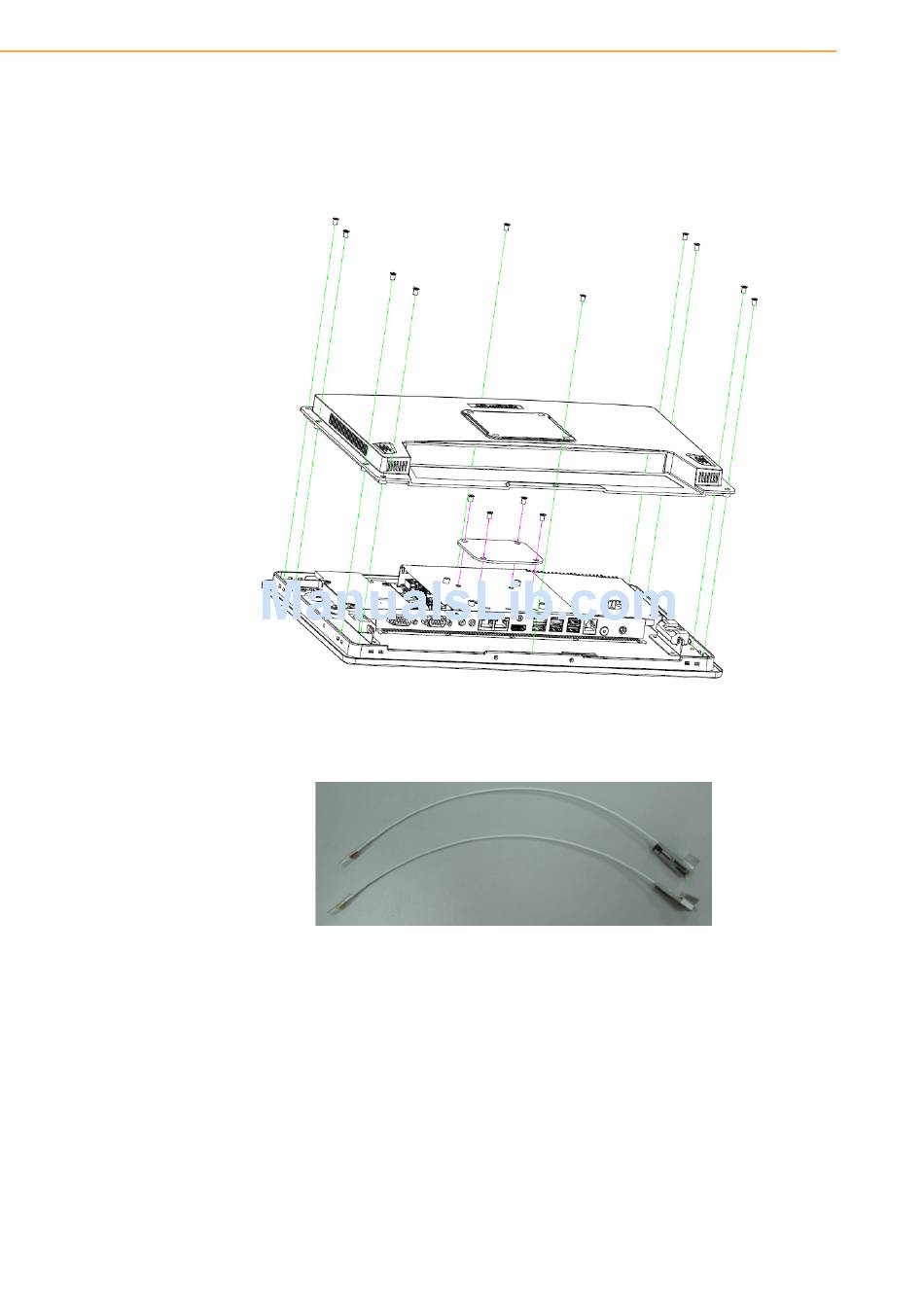

Remove the 10 screws from the back cover.
2.
Remove the 6 screws on the reinforced board.
3.
Coaxial cable (Advantech P/N: 1750006682-01)
UTC-318 User Manual
16
