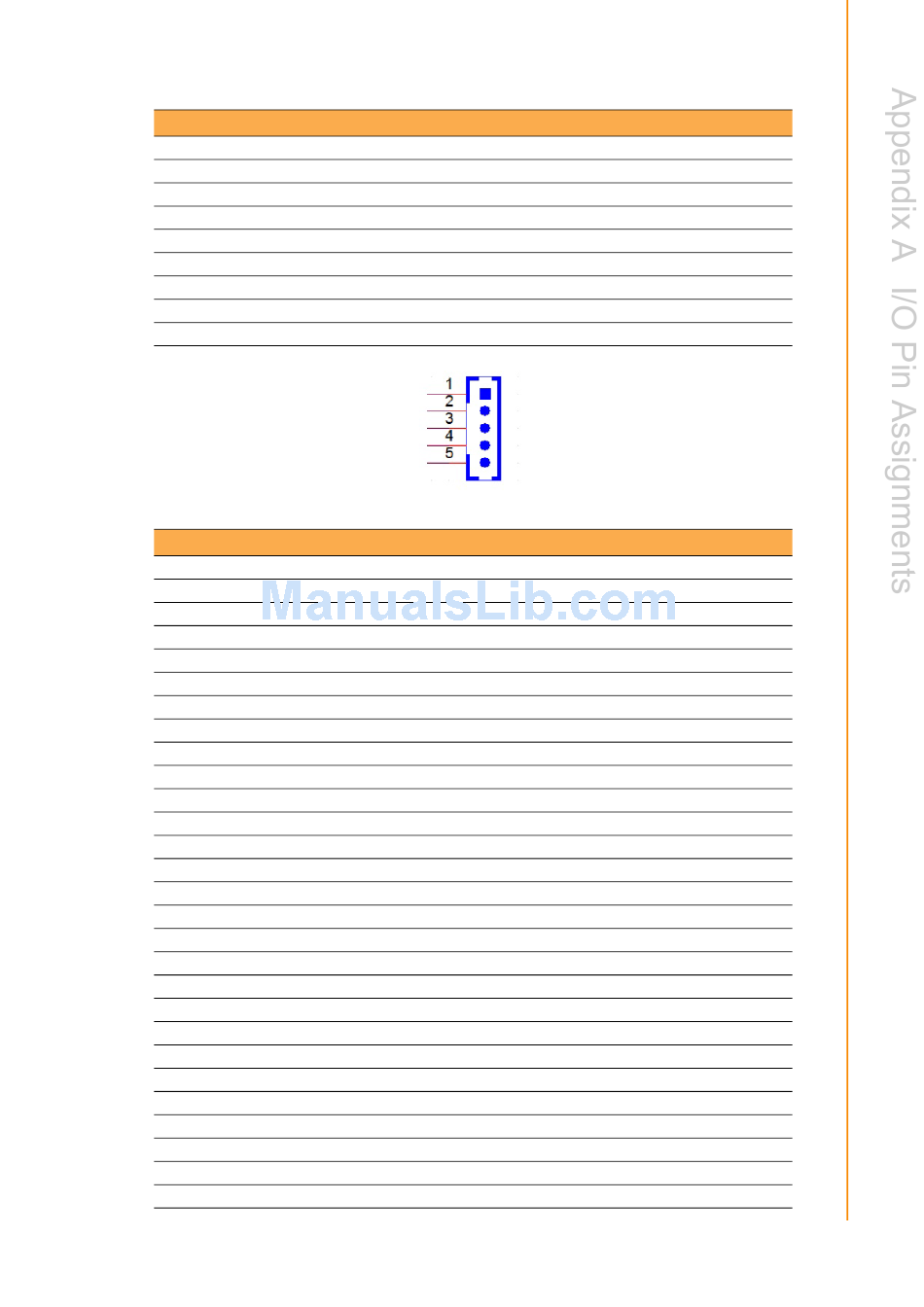

Table A.3: CN3: SATA POWER

Part Number 1659254005
Footprint SATA_7P_WATM-07DBN4A3B8UW_D
Description Serial ATA 7P 1.27 mm 180D(M) DIP WATM-07DBN4A3B8
Pin Pin Name
1 +3.3 V
2 GND
3 +5 V
4 GND
5 +12 V
Table A.4: CN4: LVDS
Part Number 1653920200
Footprint SPH20X2
Description B/B Conn. 40P 1.25 mm 90D SMD DF13-40DP-1.25V(91)
Pin Pin Name
1 +3.3 V or +5 V
2 +3.3 V or +5 V -
3 GND
4 GND
5 +3.3 V or +5 V
6 +3.3 V or +5 V
7 LVDS0_D0-
8 LVDS1_D0-
9 LVDS0_D0+
10 LVDS1_D0+
11 GND
12 GND-
13 LVDS0_D1-
14 LVDS1_D1-
15 LVDS0_D1+
16 LVDS1_D1+
17 GND
18 GND
19 LVDS0_D2-
20 LVDS1_D2-
21 LVDS0_D2+
22 LVDS1_D2+-
23 GND
24 GND
