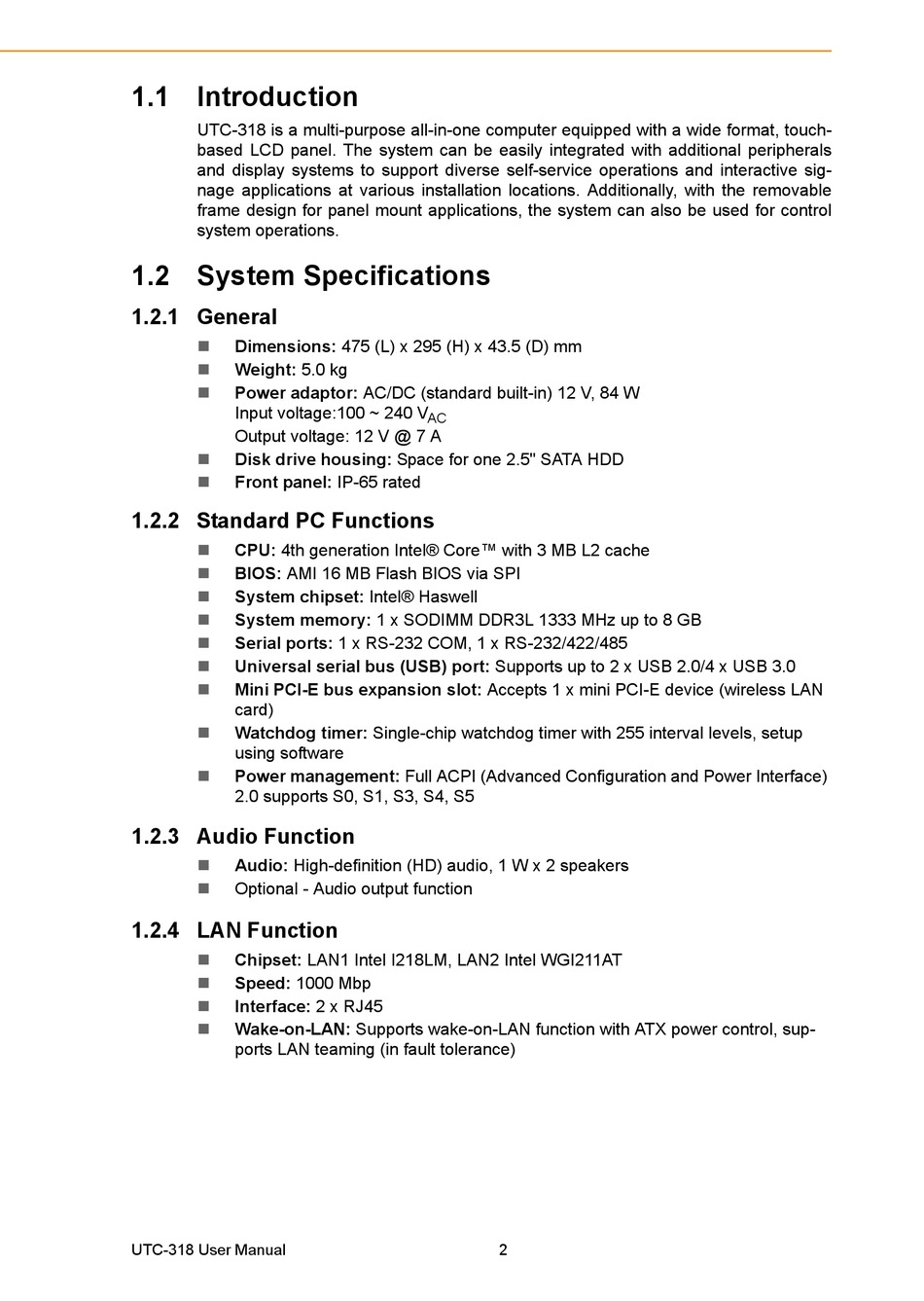

1.1 Introduction

UTC-318 is a multi-purpose all-in-one computer equipped with a wide format, touch-
based LCD panel. The system can be easily integrated with additional peripherals
and display systems to support diverse self-service operations and interactive sig-
nage applications at various installation locations. Additionally, with the removable
frame design for panel mount applications, the system can also be used for control
system operations.

1.2 System Specifications

1.2.1 General

 Dimensions: 475 (L) x 295 (H) x 43.5 (D) mm
 Weight: 5.0 kg
 Power adaptor: AC/DC (standard built-in) 12 V, 84 W
Input voltage:100 ~ 240 V
Output voltage: 12 V @ 7 A
 Disk drive housing: Space for one 2.5" SATA HDD
 Front panel: IP-65 rated

1.2.2 Standard PC Functions

 CPU: 4th generation Intel® Core™ with 3 MB L2 cache
BIOS: AMI 16 MB Flash BIOS via SPI

System chipset: Intel® Haswell

 System memory: 1 x SODIMM DDR3L 1333 MHz up to 8 GB
 Serial ports: 1 x RS-232 COM, 1 x RS-232/422/485
 Universal serial bus (USB) port: Supports up to 2 x USB 2.0/4 x USB 3.0
 Mini PCI-E bus expansion slot: Accepts 1 x mini PCI-E device (wireless LAN
card)
 Watchdog timer: Single-chip watchdog timer with 255 interval levels, setup
using software
 Power management: Full ACPI (Advanced Configuration and Power Interface)
2.0 supports S0, S1, S3, S4, S5

1.2.3 Audio Function

 Audio: High-definition (HD) audio, 1 W x 2 speakers
 Optional - Audio output function

1.2.4 LAN Function

 Chipset: LAN1 Intel I218LM, LAN2 Intel WGI211AT
 Speed: 1000 Mbp
 Interface: 2 x RJ45
 Wake-on-LAN: Supports wake-on-LAN function with ATX power control, sup-
ports LAN teaming (in fault tolerance)
