2.1 Quick System Tour

Before setting up UTC-318, take a moment to familiarize yourself with the location
and purpose of the controls, drives, connectors, and ports, as illustrated below.
When the UTC-318 is upright, the front panel should appear as shown in Figure 2.1.
Located at the rear of the UTC-318 is the I/O section, as shown in Figure 2.2.
(The I/O section comprises serial, Ethernet, USB, HDMI, Line-Out/Mic-In, RJ11, and
DC-In ports, as well as a power button.)
UTC-318 User Manual

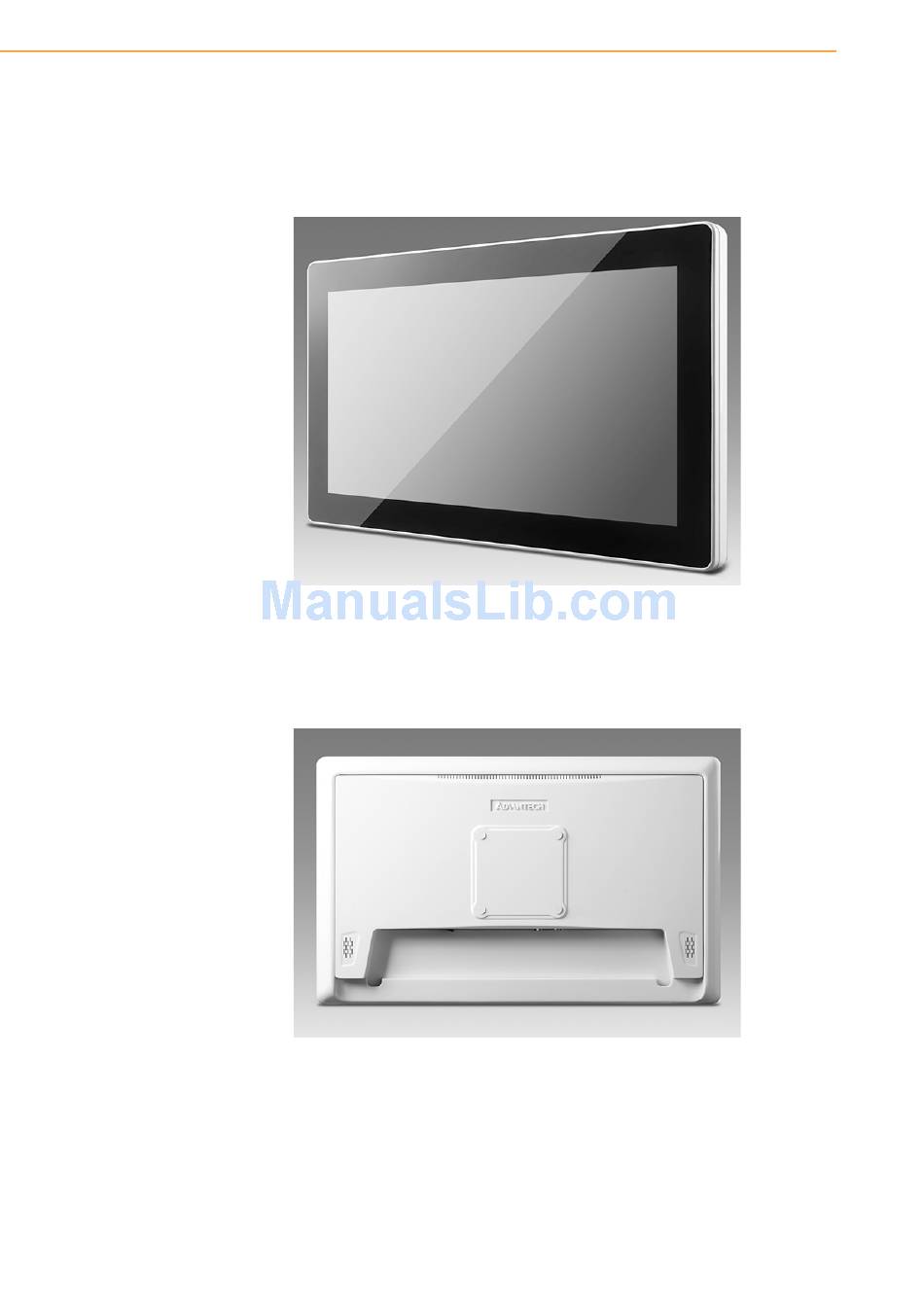

Figure 2.1 UTC-318 front view
Figure 2.2 UTC-318 rear view
