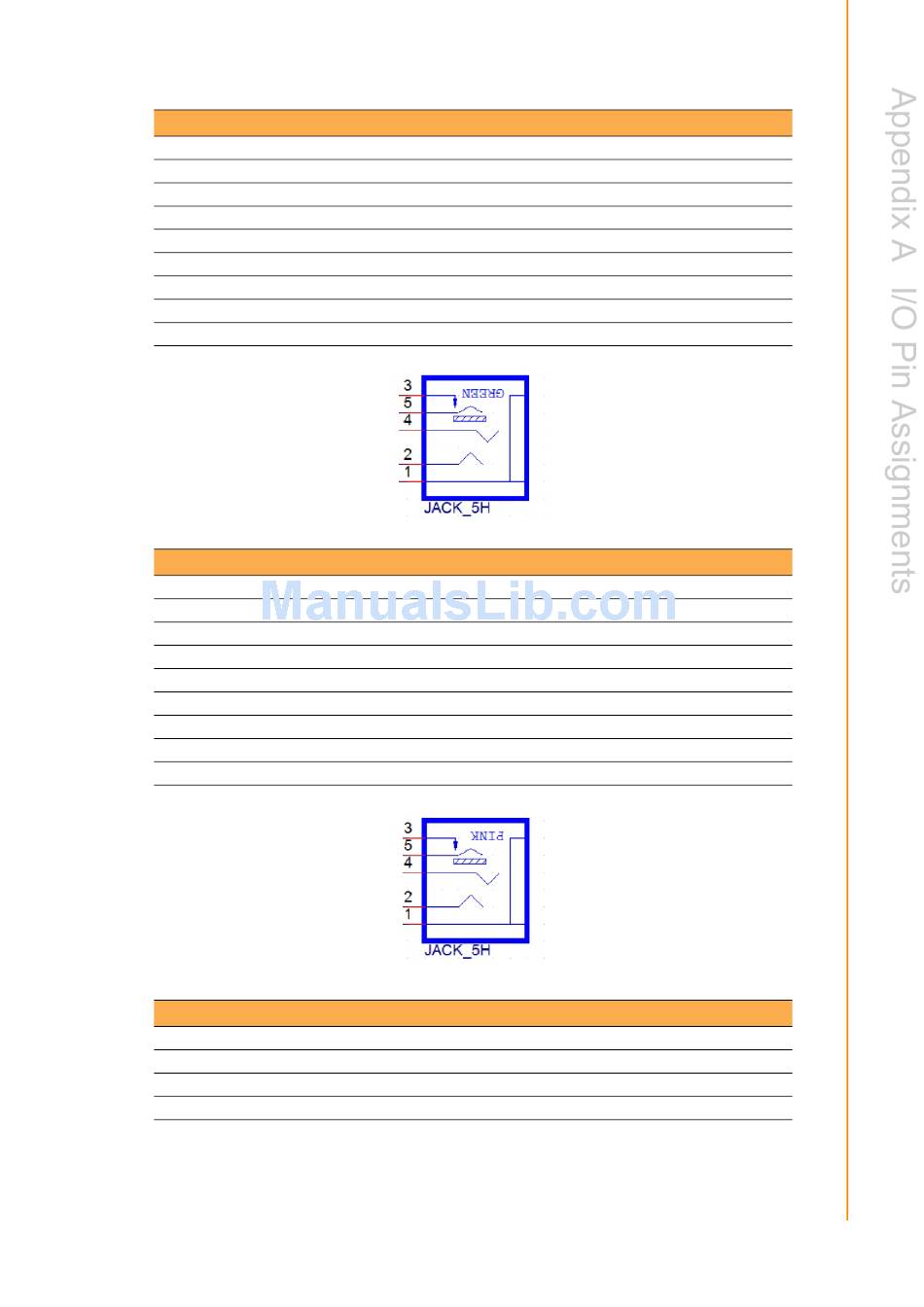

Table A.14: CN21: Line-Out
Part Number 1652001586
Footprint KUONYI_PJ-2508PC-5-L
Description Phone Jack 5P 3.5φ 90D(F) AZALIA GREEN DIP WO/P
Pin Pin Name
1 GND
2 OUT_L
3 JD
4 OUT_R
5 GND
Table A.15: CN22: Mic-In
Part Number 1652001584
Footprint KUONYI_PJ-2508PA-5-L
Description Phone Jack 5P 3.5φ 90D(F) AZALIA PINK DIP WO/Pb
Pin Pin Name
1 GND
2 MIC_L
3 JD
4 MIC_R
5 GND
Table A.16: CN17: LAN1/LAN2
Part Number 1652003274
Footprint RJ45_28P_RTB-19GB9J1A
Description Phone Jack RJ45 28P DIP RTB-19GB9J1A
Pin Pin Name
