3.4 WLAN Installation

Reserve two locations for the external antenna; one should be an I/O port, and the

other on the rear cover. However, customers can determine the specific location

according to their requirements.

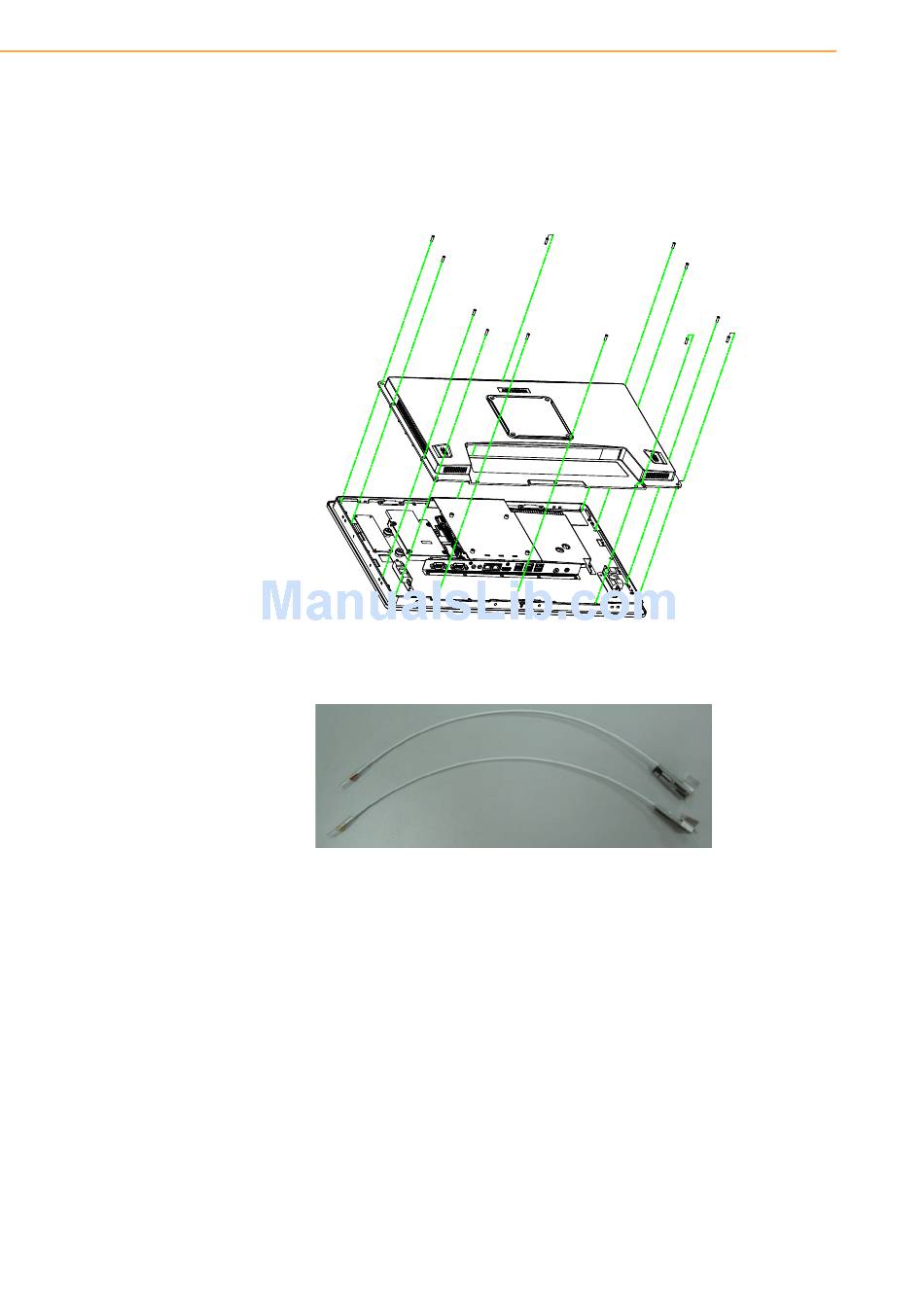

Remove the 10 screws on the rear cover.

Remove the 6 screws on the reinforced board.

Coaxial cable (Advantech P/N: 1750006682-01)

Connect the coaxial cable to "ANT1" on the WLAN card.
