43
11.2
SNMP Manager Functions Appendix B
The SNMP Manager allows the user to view alarm status, set date/time, issue controls, and perform a resync. The

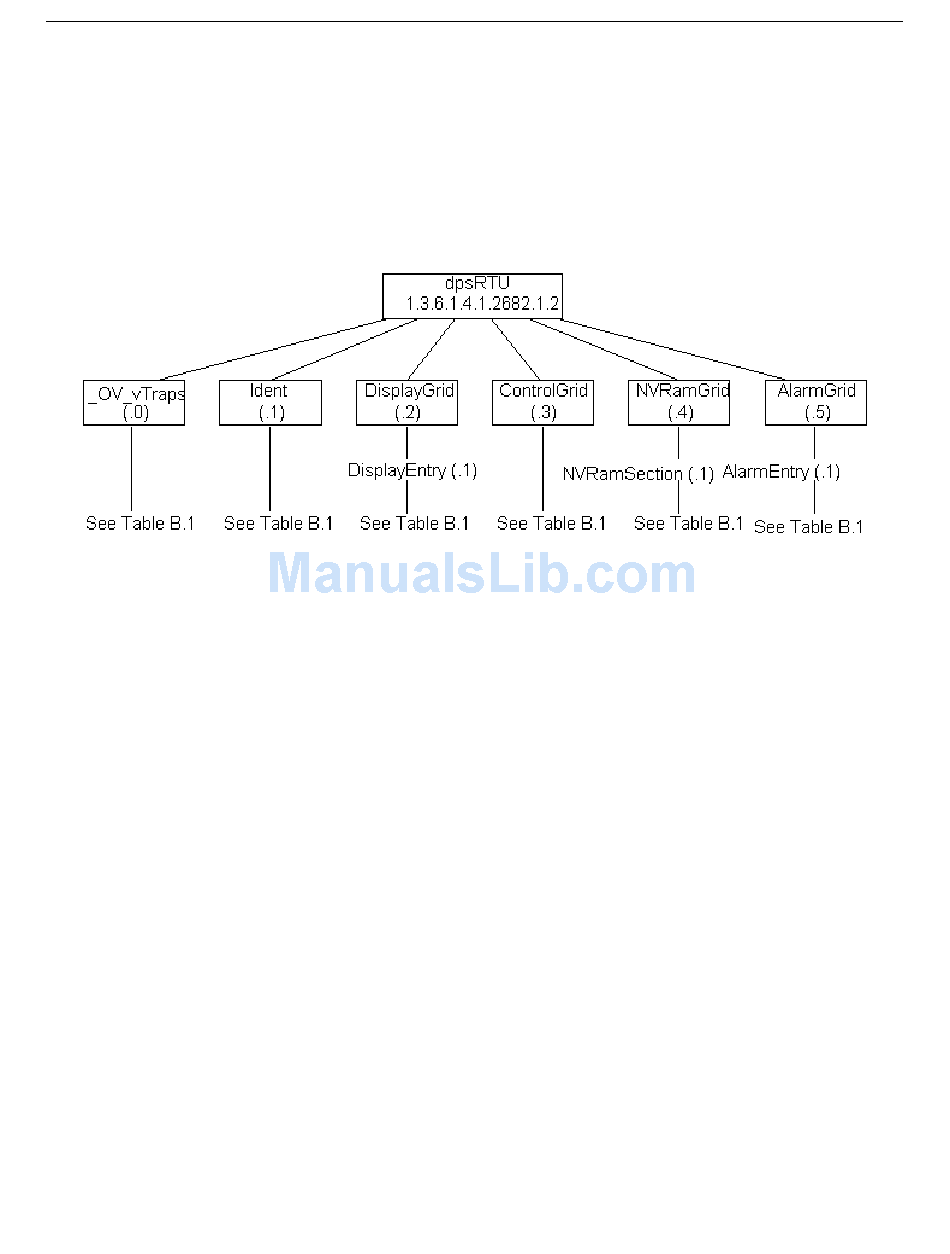

display and tables below outline the MIB object identifiers. Figure 1 begins with dpsRTU, however, the MIB
object identifier tree has several levels above it. The full English name is as follows:
root.iso.org.dod.internet.private.enterprises.dps-Inc.dpsAlarmControl.dpsRTU. Therefore, dpsRTU's full object
identifier is 1.3.6.1.4.1.2682.1.2. Each level beyond dpsRTU adds another object identifying number. For
example, the object identifier of the Display portion of the ControlGrid is 1.3.6.1.4.1.2682.1.2.3.3 because the
object identifier of dpsRTU is 1.3.6.1.4.1.2682.1.2 + the ControlGrid (.3) + the Display (.3).
