36
While the firmware load is in progress, the LEDs will display the following:
1. Alternating RED-GREEN-RED pattern when the firmware load software is detected.
2. ALL RED when waiting for DPSLOAD signal.
3. ALL GREEN when DPSLOAD signal received.
4. SLOW (1 LED step every 1.5 seconds) RED LED will walk while flash memory is being erased/overwritten.
5. FAST (5 LED steps every second) RED LED walk while data is received and written to memory.
6. Alternating ALL GREEN/ALL RED pattern when main application boots following the firmware load.
8.10

Protocol Window

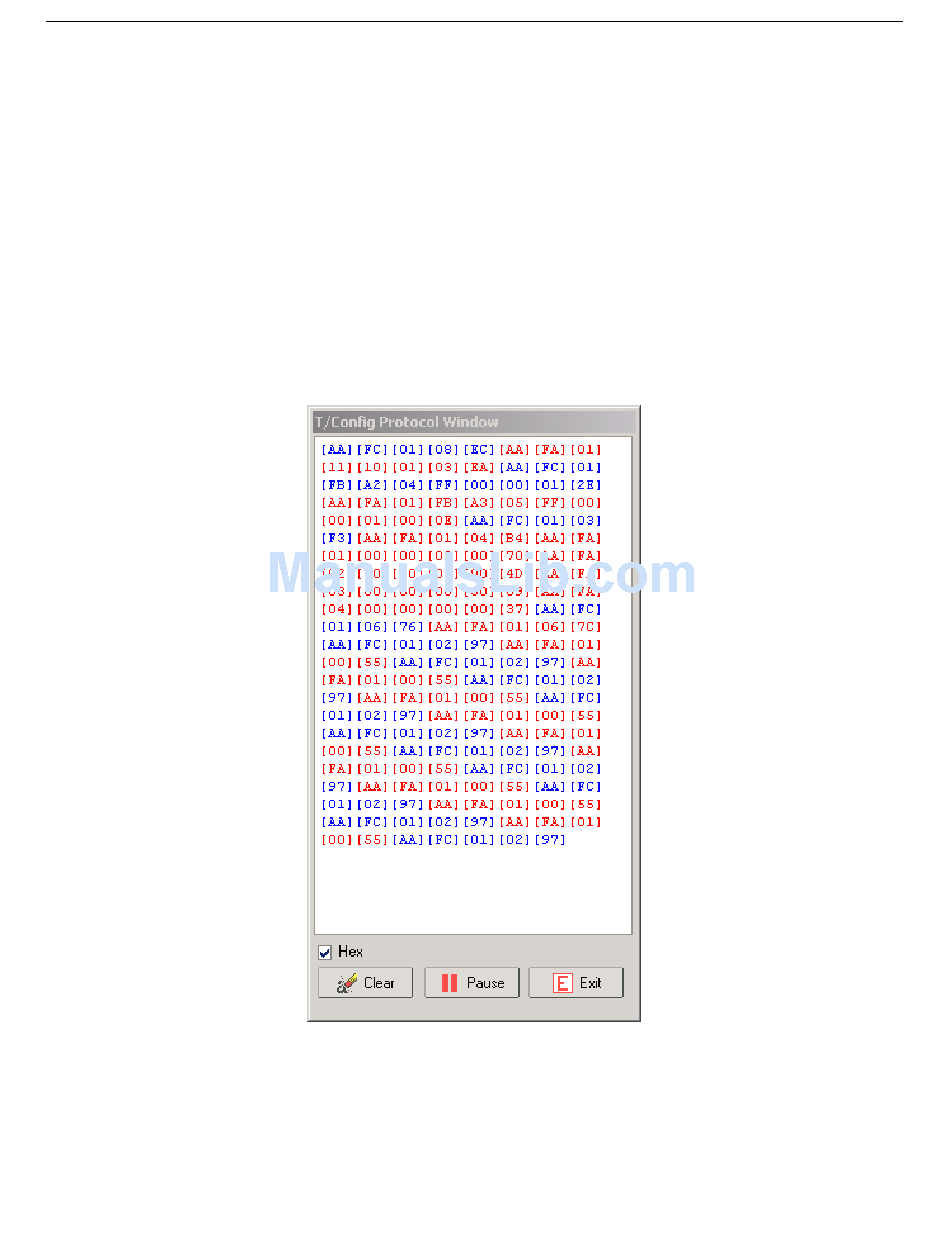

Fig. 41. Protocol window.
To access the Protocol window select it from the Action tab. The Protocol window displays the communication
traffic between the NetGuardian 480 and T/NG480. Click the buttons at the bottom of the Protocol window to
pause or clear the display.
