28

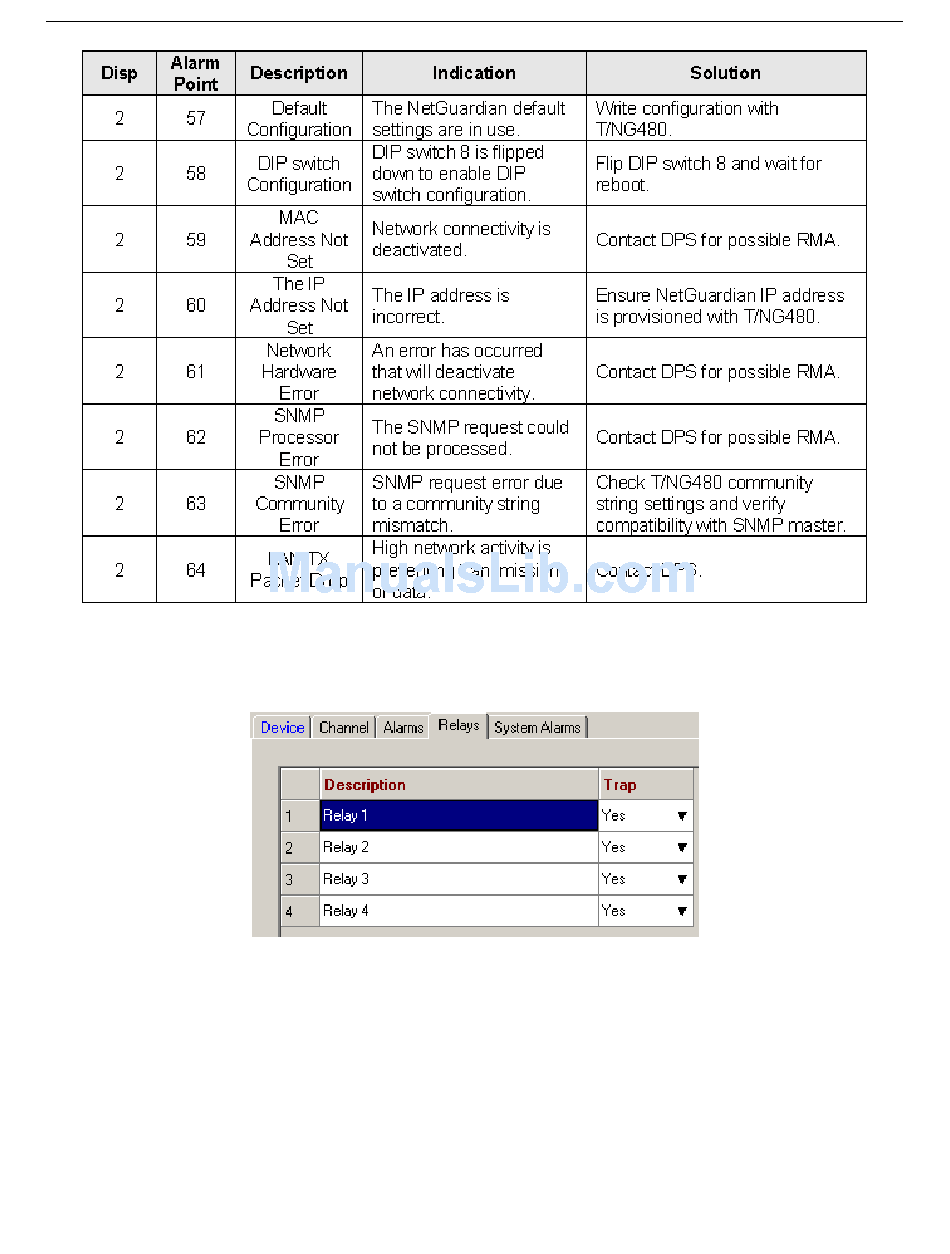

Table C. NetGuardian 480 System Alarms.
8.6.4
Relays Tab
Fig. 31. The Relays tab.
All 4 relays are configured from the Relays tab. Short (30 characters maximum) descriptions of the individual
alarm points may be entered in the description field for each relay. This is an optional step, but very useful.
You may choose to send an SNMP trap message for the relays by selecting Yes in the Trap fields. If you want to
send alarms to an SNMP manager you must select Yes from the Trap option. If you do not want to send an
SNMP trap message select No in the Trap field.
