Operation

Front Keys and display, menus, etc.
Graphical
Display
16 char. x 2 lines
LCD display
"Enter" key
"Up" arrow key
"Down" arrow key
Smartpack control unit

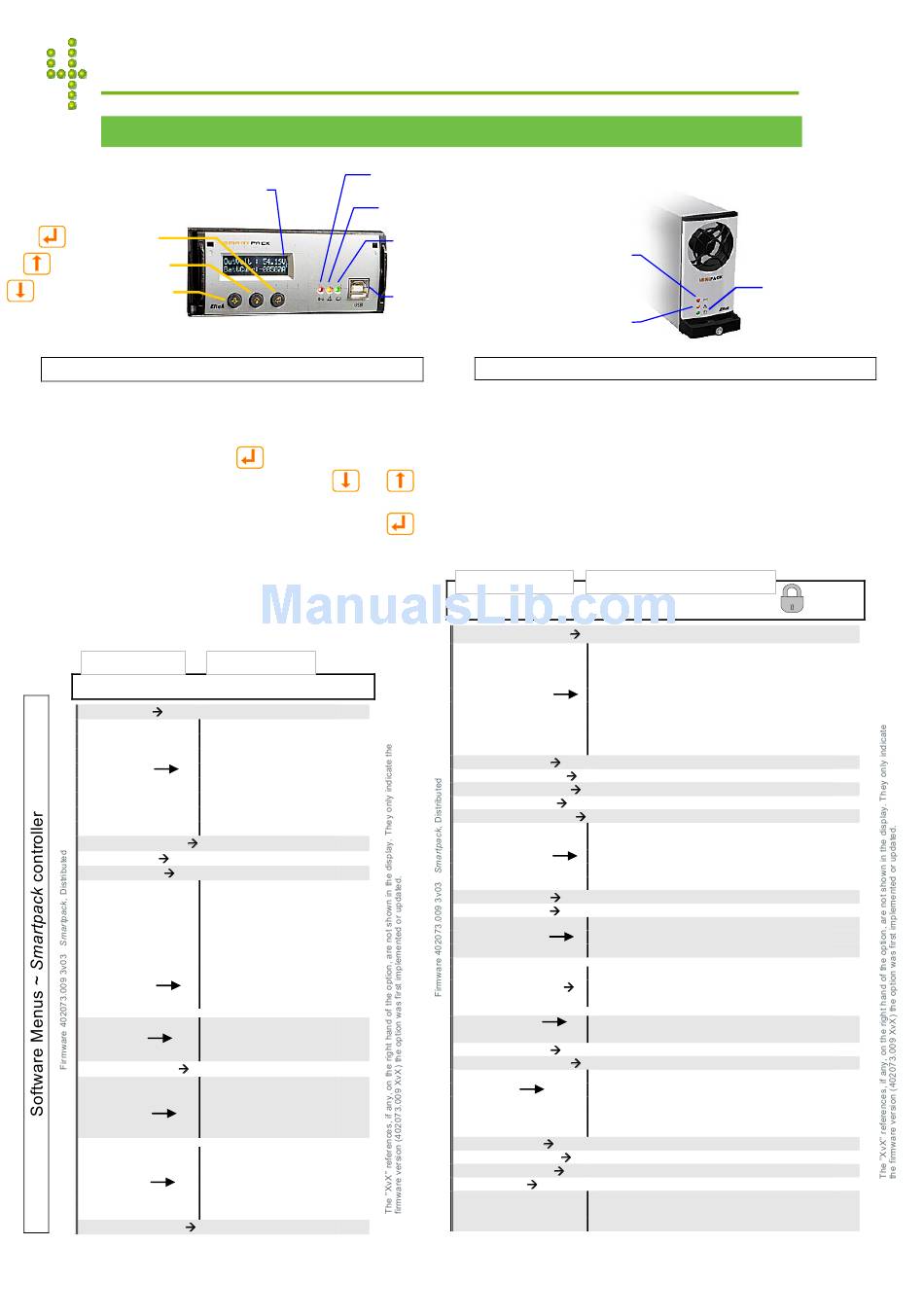

Smartpack Control Unit — front keys, display
Display: is in Status Mode (displays the system's
status) or in Menu Mode (displays the menu
structure).
Operation: Press on the
Status Mode to Menu Mode. Press the
keys to scroll up or down and navigate to find menu
options (function or parameter). Press then the
key to select the function.
Menus: When you "enter" Menu Mode (Level 1),
you access the User Options. You may also scroll
down to password protected Service Options.
Default password <0003> should be changed.
Level 2 Level 3
User menu <UserOption>
AlarmReset
NomVolt
BoostVolt
LoBattMaj
VoltageInfo LoBattMin
HiBattMaj
HiBattMin
LVBD
LVLD 1.1
DisplayMessages
SoftwareInfo
SerialNumber
Rectifier nn
SolarCharger nn
Module Info DCDC48 nn
DCDC24 nn
NoOfPhases nn
Mains Info MainsStatus
MainsVoltage
Temp Level Info
NoOfString Nn
BattStringCurr
BatteryInfo
BattStringTemp
BattBlockVolt
Battery
Load
Energy log Rectifier
Generator
SolarCharger
LoadMonitor Info Unit&Input ↑↓
12
Alarm
LED Lamp (red)
Warning
LED Lamp (yellow)
key to change from
or
↓↑
Message
Mod.Current↓↑
Mod.Serial #↓↑
Mod.InputVolt↓↑
3v03
Mod.Status↓↑
Mod.Temp↓↑
Mod.OutputVolt↓↑
Mod.SW Ver↓↑
3v03
3v03
3v03
Level ↓↑
↓↑
↓↑
↓↑
3v03
H-D-W-U↓↑
3v03
H-D-W-U↓↑
3v03
H-D-W-U↓↑
3v03
H-D-W-U↓↑
3v03
H-D-W-U↓↑
3v03
V-A-W-Total
Quick Start Guide Minipack PS System
Power
LED Lamp (green)
LED Lamp (red)
USB
0ype B port
Warning
LED Lamp (yellow)
Minipack Rectifier Module — front panel
Power LED is OFF (mains unavailable), Flashing
(controller accessing information) or ON (powered).
Warning LED is ON (derating or similar minor
warning), Flashing (over-voltage mode) or OFF (OK)
Alarm LED is ON (shutdown or similar major alarm)
or OFF (OK, no alarm)
Level 2
Service menu <ServiceOption>
Change Language
VoltAdjustment
VoltCalibration
ChangePassword
SetManBoostTime
Start/StopBoost
Auto Boost Config.
Batt Test Setup
Start/Stop Test
RemoveUnit(s)
Rectifier Setup
Charge Curr Lim.
Battery Setup
Output Control
Change Date/Time
RelayTest
BlockOutputs
BattLifeTime Rst
Reboot CtrlUnit
NoOfMains
EfficiencyManagr
Minipack
rectifier
Alarm
Level 3
↓↑
English
↓↑
NomVolt
↓↑
BoostVolt
↓↑
LoBattMaj
↓↑
LoBattMin
↓↑
HiBattMaj
↓↑
HiBattMin
↓↑
LVBD
↓↑
LVLD 1.1
↓↑
VoltCal
↓↑
Password
↓↑
Enable/Disable ↓↑ & Threshold ↓↑
Nxt Test DateTime Date ↓↑ Time ↓↑
↓↑
End Volt
MaxTestDur ↓↑
↓↑
Test Int
↓↑
Guard Time
↑ (Reset)
Rem
Rectifier ON/OFF
System ON/OFF
RectWalkInTime
Short/Long
Enable/Disable ↓↑
↓↑
MainsFeed
↓↑
GenFeed
↓↑
NumOfString
↓↑
CellCap Ah nn
VoltageCtrl / TempComp ↓
Date ↓↑ Time ↓↑
↑
Alarm Output 1
↑
Alarm Output 2
↑
Batt Contactor
↑
Load Contactor
Alarm Output nn ↑
Enter OutpBlocked / Exit OutpBlocked
Yes/No
↓↑
Disable
HE Priority
Enable
Redundancy(E/D)OffTime↓↑ShuffleTime↓↑
356808.103, 1v2-2008-10
Power
LED Lamp (green)
2v0
3v03
3v03
↓↑
3v03
↓↑
3v03
3v03
3v03
2v0
3v03
3v03
3v03
3v03
3v03
