Introduction

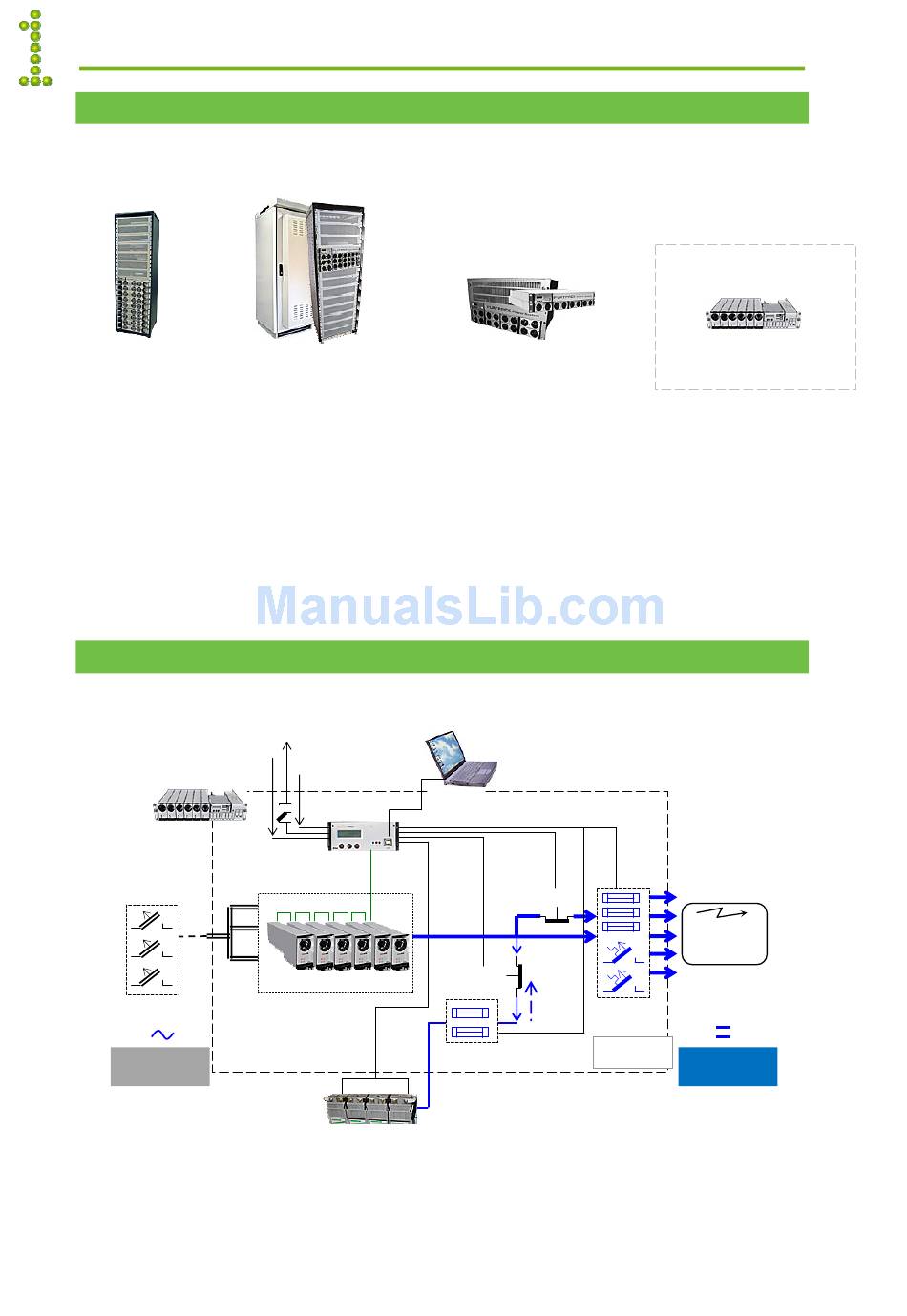

The Smartpack based Product Range
Eltek Valere's Smartpack based product range utilizes the Smartpack controller, and Flatpack2
rectifiers, Powerpack rectifiers and Minipack rectifiers as building blocks for implementing
effective DC power systems, suitable for a wide range of applications and power ratings.
Powerpack System Flatpack2 System, Cabinetized
Indoor and Outdoor Cabinets
Cabinetized systems are suitable for indoor or outdoor applications. In addition to the power
system and the distribution unit, the cabinet may also contain battery banks, additional distribution
and other dedicated equipment.
Integrated systems consist of the power system, which includes rectifiers and controller(s), and the
distribution unit (1U or 4U high). Integrated systems are sold primarily for mounting in existing
cabinets.
Powerpack systems are suitable for large Central Office power plants, and use three-phase rectifier
modules.
Minipack systems are suitable as small, stand-alone battery chargers and DC power supplies.
Brief System Description ⎯ Minipack
The Minipack PS system is a compact and cost-effective DC power supply system, specifically
developed for the telecom industry.
Alarm Outputs NC-C-NO
Digital Inputs
Minipack
AC Fuses,
external
(230V)
AC Supply
(Single- or
three-phase)
Example of a typical Minipack PS system for DC power supply of telecom equipment. The system
is supplied from an external AC mains supply, and is delivered in one power shelf for integration in
existing cabinets (integrated). An external battery bank is to be connected.
2
Flatpack2 System, Integrated
Remote
Monitoring
USB cable
Smartpack
(Ctrl. Unit)
CAN Bus
Minipack rectifiers
Symmetry
Alarm &
Battery
Temp. Sensor
Fuses
Battery string #1
Quick Start Guide Minipack PS System
4U and 1U Distributions
PowerSuite
Application
Fuse Alarm
LVLD
LVBD
Load Fuses
& MCBs
DC
distribution
Minipack System, Integrated
Telecom
equipment
DC Supply
48V
*
356808.103, 1v2-2008-10
