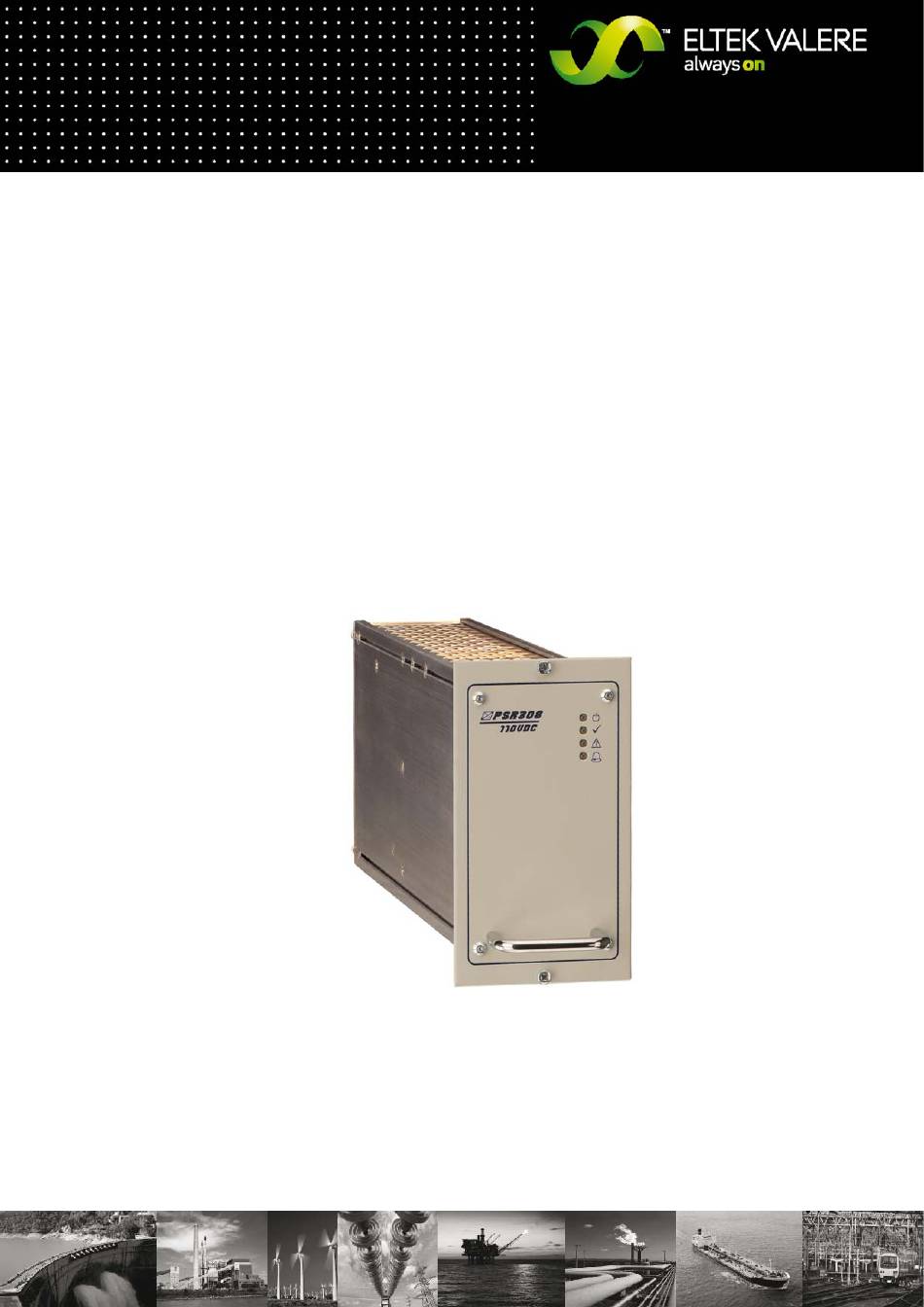

- Page 1 RECTIFIER PSR308 USER MANUAL UM_PSR308_E_R5.0...
- Page 2 ELTEK VALERE DEUTSCHLAND GmbH Industrial Division Schillerstraße 16 D-32052 Herford + 49 (0) 5221 1708-210 + 49 (0) 5221 1708-222 Email Info.industrial@eltekvalere.com Internet http://www.eltekvalere.com 2009. ELTEK VALERE DEUTSCHLAND GmbH. All rights reserved. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0...
- Page 3 Indication of the input voltage range/tolerance changed. 2009-01-22 Minor changes for technical data inserted. 2009-02-25 Minor changes for technical data inserted. 2009-04-22 Minor text modifications, section 4.7 “Default value setting 2009-07-10 for NiCd batteries” inserted. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0...
-
Page 4: Table Of Contents
Figure 4.) Male connector ..............................9 Figure 5.) Sub rack air flow .............................. 10 Figure 6.) Output power diagram........................... 12 Figure 7.) Screenshot “Special software for CAN-Dongle”..................14 Figure 8.) Module dimensions ............................18 ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 5: Safety Instructions/Waste Disposal Rules
The above statement from EU directive 2002/96/EC applies to all electric modules installed within EU countries. In countries outside the EU, different rules may apply regarding waste disposal of electric modules. For more information about waste disposal of your discarded equipment, contact your ELTEK VALERE INDUSTRIAL partner. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 6: General Information
AC input voltage tolerance: -20/+10% AC input current: 5.5A @120V /3.9A @230V Input Frequency: 47- 63 Hz Nominal Output Power: 800W (600W @ Vi < 173V For more specific data, see section 8. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 7: Available Options And Assembly Equipment
(e.g. for NiCd application). Figure 1.) DC Power Rack DCR PSR308-4.0 Figure 2.) DC Power Rack DCR PSR308-4.8 fully equipped with fully equipped with five rectifiers PSR308 and six rectifiers PSR308 one DC controller UPC3S ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 8: Front View/Front Led Panel
4.4 Two captive screws at the top and the bottom of the module are used for each module to secure it to the subrack (components of the module). Figure 3.) Front view ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 9: Rear Side Connection
Hardware coding CODE1 General fault (alarm) NC General fault (alarm) COM General fault (alarm) NO (+) output voltage sense link N-Input L1-Input Figure 4.) Male connector (shown from the rear side of the module) ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 10: Cooling/Air Flow Direction
Output current Module temperature Module status Furthermore the rectifier unit receives all threshold values through the CAN-Bus from the DC controller unit. REMARK: The CAN-Bus is not for external use! ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 11: Handling
Note: Before a module is to be removed, it must be switched off by the external input fuse! Caution: After switching off the module the internal capacitors are still fully charged. Do not touch connector pins as they can still be charged with dangerous voltage after disconnection. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 12: Charge Characteristic/Output Power Diagram
Io= Ponom : Vo Float charge voltage for lead acid batteries (24 cells) = 54.5V; Io= 800W : 54.5V= 14.7A Boost charge voltage for lead acid batteries (24 cells) = 57.6V; Io= 800W : 57.6V= 13.9A ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 13: Led Indications
Module Cooling plate temperature ≥80°C The device automatically switches off. temperature It automatically switches on when the cooling plate cools down to ≤70°C. *For factory set output voltage threshold values, see section 4.6 ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 14: Threshold & Default Values
CAN dongle and special software (see section 3.2 “Available Options and Assembly Equipment”). A specific manual is available on request. For the adjusting range of the output voltage please see section 8 “Technical Specifications”. Figure 7.) Screenshot “Special software for CAN-Dongle” ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 15: External Functions
If an external sensor lead is used for the output Check voltage, is the connection faultless? If the unit still does not work even though all checks have been done, contact your sales agent or the ELTEK VALERE DEUTSCHLAND service department. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 16: Technical Specifications
2.5V/cell; lead acid battery Output under voltage 20.4V 40.8V 91.8V 183.6V Vo< (factory set, 1.7V/cell; lead acid battery Default/threshold values for charging of NiCd batteries are settable using a CAN dongle and special software. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... - Page 17 Front panel: RAL 7035, neutral, black print RAL 9005 Compliances: CE conformity Compliance to safety EN60950-1; VDE0100 T410; VDE0110; EN50178; EN60146 standards Compliance to EMC EN55022/24 class “B“, ITE Devices; EN61000-4 T2-5 standards ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0...
-
Page 18: Dimensional Drawings
Rectifier PSR308 User Manual Page 18 of (20) 8.1 Dimensional drawings: Figure 8.) Module dimensions ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... -
Page 19: Notes
Rectifier PSR308 User Manual Page 19 of (20) 9. Notes ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSR308_ E_R5.0... - Page 20 Supplier: ELTEK VALERE DEUTSCHLAND GmbH Industrial Division Schillerstraße 16 D-32052 Herford + 49 (0) 5221 1708-210 + 49 (0) 5221 1708-222 Email Info.industrial@eltekvalere.com Internet http://www.eltekvalere.com 2009. ELTEK VALERE DEUTSCHLAND GmbH. All rights reserved.
