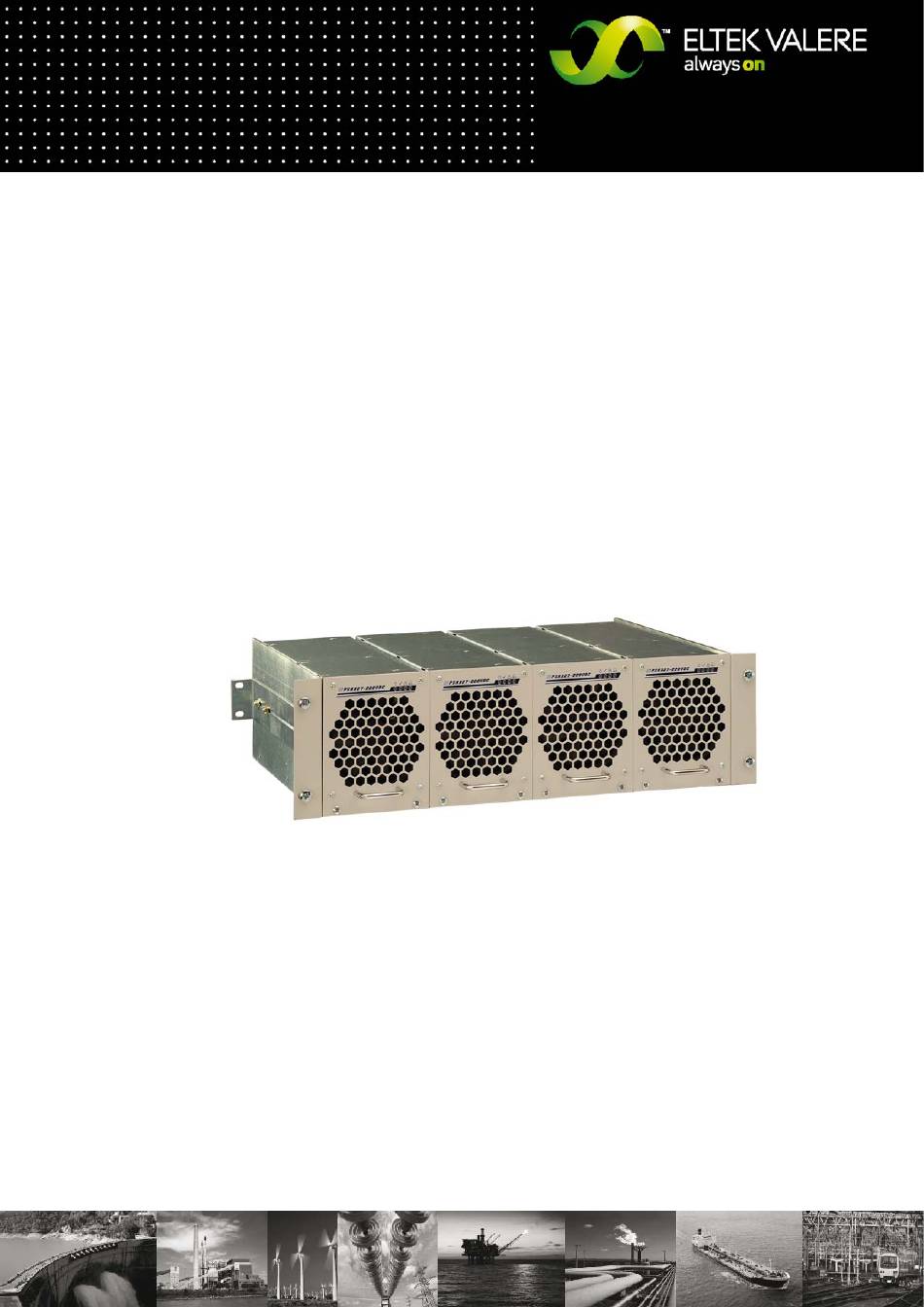

- Page 1 DC Power Rack DCR PSR327-10.8 LV/HV USER MANUAL UM_DCR_PSR327_10.8_E_R1.0...
- Page 2 ELTEK VALERE DEUTSCHLAND GmbH GB Industrial Schillerstraße 16 D-32052 Herford + 49 (0) 5221 1708-210 + 49 (0) 5221 1708-222 Email Info.industrial@eltekvalere.com Internet http://www.eltekvalere.com 2009. ELTEK VALERE DEUTSCHLAND GmbH. All rights reserved. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0...
- Page 3 Revision Description of change Writer Date Preliminary first edition 2007-12-17 First edition 2008-02-28 Minor text modifications, index of figures inserted 2008-05-19 New revision status numbering (X.X) introduced, layout 2009-06-08 adapted to DCR PSR327-8.1. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0...
-
Page 4: Table Of Contents
Figure 7) - CAN-Bus termination switches............................11 Figure 8) - Rear view.................................... 13 Figure 9) - Rear electric connectors..............................13 Figure 10) - Schematic diagram ................................ 15 Figure 11) - Rack dimensions ................................18 ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 5: Safety Instructions And Waste Disposal Rules
EU countries. In countries outside the EU, different rules may apply regarding waste disposal of electric devices. For more information about waste disposal of your discarded equipment, contact your ELTEK VALERE DEUTSCHLAND partner. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 6: General Information
Furthermore this rack is designed to be switched in parallel to the rack DCR PSR327-8.1 (for three rectifiers PSR327/312 and one DC controller UPC3) to extend the output power of the system. Block Diagram DCR PSR327-10.8 LV/HV Figure 1) - Block diagram ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 7: Possible Configurations
Output power of the rack, equipped with PSR327: Number of installed Output power (without Output power (n + 1) Output power (n + 2) Rectifiers (PSR327) redundancy) 2700W 5400W 2700W 8100W 5400W 2700W 10800W 8100W 5400W ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 8: Perspective View
Two captive screws are used for each module to secure it to the sub Component parts of the rack modules Optional Equipment Description Article Code Cover plate (with handle) to cover empty slots, 1/4 x 19’’, 3U, 881-MEC-BPL.03.21.B colour RAL 7035 ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 9: Cooling And Air Flow Direction
(see figure 3, item “A”) of 50 mm is required between the backplane of the rack and the rear cabinet wall as well as an unobstructed supply of air to the front of the modules. Figure 3) - Rack air flow ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 10: Handling
Figure 4) - Rack mounting points REMARK: Before assembling the rectifier modules, the following settings must be done on the empty rack: 1. CAN-Bus termination 2. CAN address designation For details, see the following sections. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 11: Communication Interface
ATTENTION: Missing terminations or too many terminations within the system can disturb the CAN-Bus communication. No more than two termination resistors should be activated on one bus and these should be located at both ends of the bus. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 12: Can Address Designation
After you have completed the settings, assemble the modules into the slots of the sub rack. Fill the rack beginning with the left slot. Unused PSR slots have to be covered with cover plates (see section 2.4 “Optional Equipment”). ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 13: Rear View/Electric Connectors
REMARK: The high voltage (HV) rack looks similar to the low voltage (LV) rack. The difference is, that the connector X8 (sensor input for voltage drop compensation) is not connected for the HV rack! ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 14: Connection Table
DC output (minus pole), connection 95mm 120mm 95mm 35mm 10mm with M8 bolt (brass) DC output (plus pole), connection 95mm 120mm 95mm 35mm 10mm with M8 bolt (brass) *Not connected for the HV-rack! ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 15: Schematic Diagram (Example Of Use)
An external separate fuse per each input is recommended! With this fuse each module individually can be switched ON/OFF and therefore unused slots are isolated (higher safety level). Recommended input fuses: 16A MCB, characteristic “B” ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 16: Maintenance
Dust inside the unit can be blown out with dry compressed air. The interval between the checks depends on ambient conditions of the installed system. For the exchange of defective fans in the rectifier modules, an additional instruction manual is available on request. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 17: Technical Specifications
Max. installation altitude Ambient temperature operation: -20°C...+55°C; storage: -40°C...+85°C 45dB(A) at 1m distance Audible noise Mechanical: Type of construction Sub rack, 19’’, 3U Cooling The rectifiers are fan-cooled (front-to-rear airflow), temperature- ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 18: Dimensional Drawings
IEC 721-3-3 class 3K3/3Z1/3B1/3C2/3S2/3M2 RFI suppression / CE-label, (EN50081-1, EN55011/55022 class „B“, EN50082-2, EN61000-4 immunity part 2/3/4/5) Compliance to safety acc. to EN60950-1, VDE0100 T410, VDE0110, EN60146 standards 5.1 Dimensional Drawings: Figure 11) - Rack dimensions ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... -
Page 19: Notes
DC Power Rack DCR PSR327-10.8 LV/HV User Manual Page 19 (20) 6. Notes ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_DCR_PSR327_10. 8_E_R1.0... - Page 20 Supplier: ELTEK VALERE DEUTSCHLAND GmbH GB Industrial Schillerstraße 16 D-32052 Herford + 49 (0) 5221 1708-210 + 49 (0) 5221 1708-222 Email Info.industrial@eltekvalere.com Internet http://www.eltekvalere.com 2009. ELTEK VALERE DEUTSCHLAND GmbH. All rights reserved.
