Connections, Factory Settings, etc

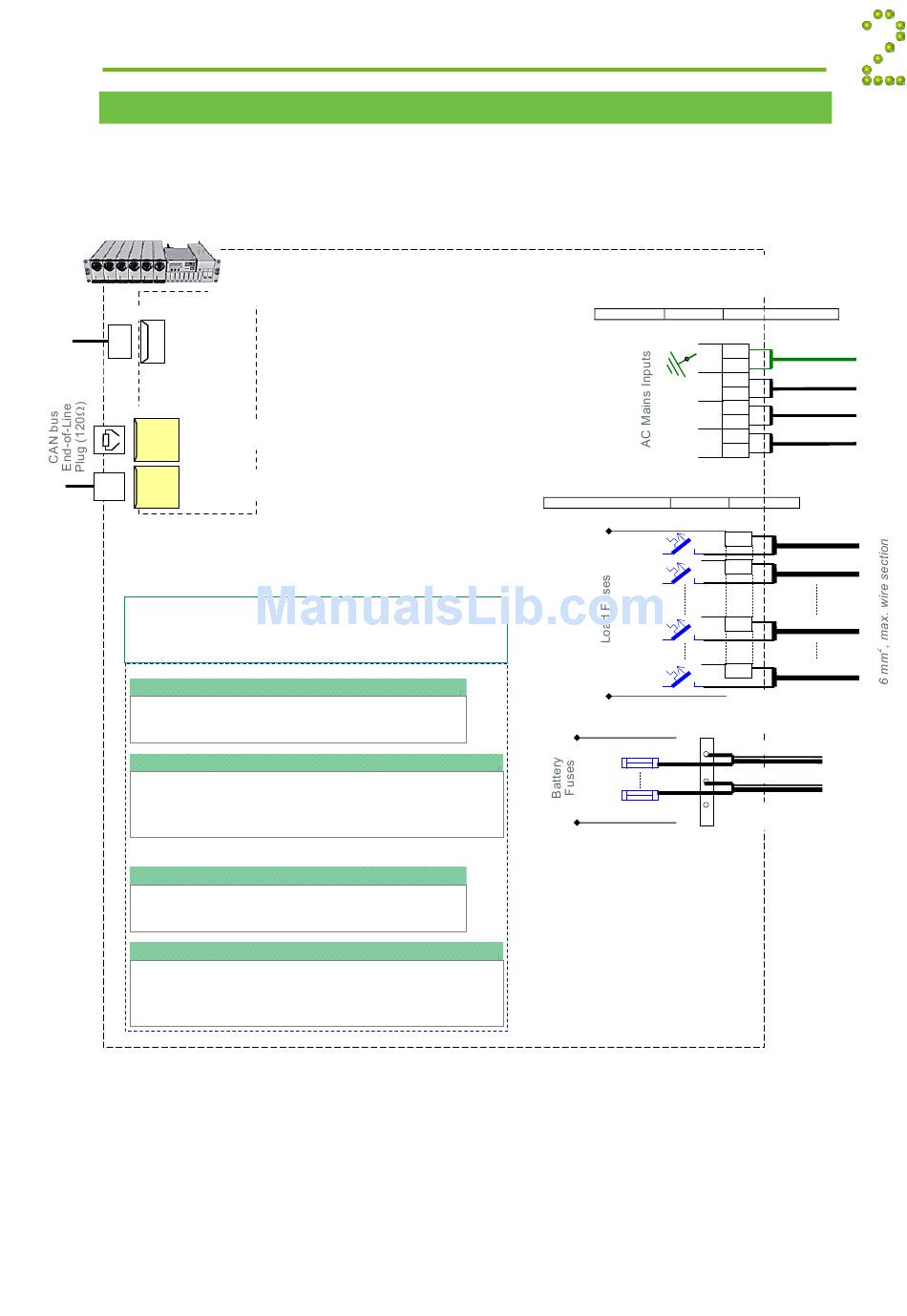

The schematic shows the connection terminals in Minipack PS Systems. Or refer to specific
drawings included with your system.
Minipack
PS System, Integrated
Smartpack
(Front)
USB
Com
USB 2.0
Cable
Type B serial port
(Rear)
CAN1 port
RJ45, 8 pins
CAN1 port
RJ45, 8 pins
CAN
Com
Cable
(For CAN bus
termination, see section
"Appendix")
Interface Cards Connections
Refer to the connections for the actual terminal circuit boards
Battery Connections (X4)
Terminal Circuit Board, Art. 200576
Battery Symmetry 1-4 and Temp. Sense 1
(See page 20 for pin-out information)
Battery Connections, Extended (X3)
Batt. Symmetry 5-8, Temp. Sense 2, Batt. Current and Batt. Fuse Fail
(Not applicable for Smartpack RS232 D-Sub option, on rear panel)
(See page 20 for pin-out information)
Alarm Outputs & Digital Inputs (X1)
Terminal Circuit Board, Art. 218470
Digital Input 1-2 and Relay Output 1-2
(See page 21 for pin-out information)
Alarm Outputs & Digital Inputs Extended (X2A & X2B)
(Not applicable for Smartpack Ethernet option)
(See page 22 for pin-out information)
Quick Start Guide Minipack PS System
installed in your system
Terminal Circuit Board, Art. 200576
Terminal Circuit Board, Art. 218473
Digital Input 3-6 and Relay Output 3-6
If the 3ph AC Input Connection Kit, part 228898
or 238394 is used, follow the kit's connection
guide.
FUNCTION
356808.103, 1v2-2008-10
Installation
FUNCTION SIGNAL TERM. POINT
X5
1
PE
PE
2
3
N3
L3
4
5
N2
L2
6
N1 7
L1
8
SIGNAL PIN-OUT
X6B X6A
1
+
MCB1
2
+
MCB2
8
+
MCB8
+ 10
MCB10
(Minipack systems with 6 rectifiers
have 8 DC load outputs available.
Systems with 4 rectifiers have 10
X7A
DC load outputs)
Battery Cables, string 1
Fb1
Battery Cables, string x
Fbx
M6 screws, cable lugs
max. 15 mm width
Common
Battery "Rail"
AC Earth (PE)
Mains Feed 3
Mains Feed 2
Mains Feed 1
2
2.5 mm , max.
wire section
M4 terminals
Load Circuit 1
Load Circuit 2
Load Circuit 8
Load Circuit 10
