Installation

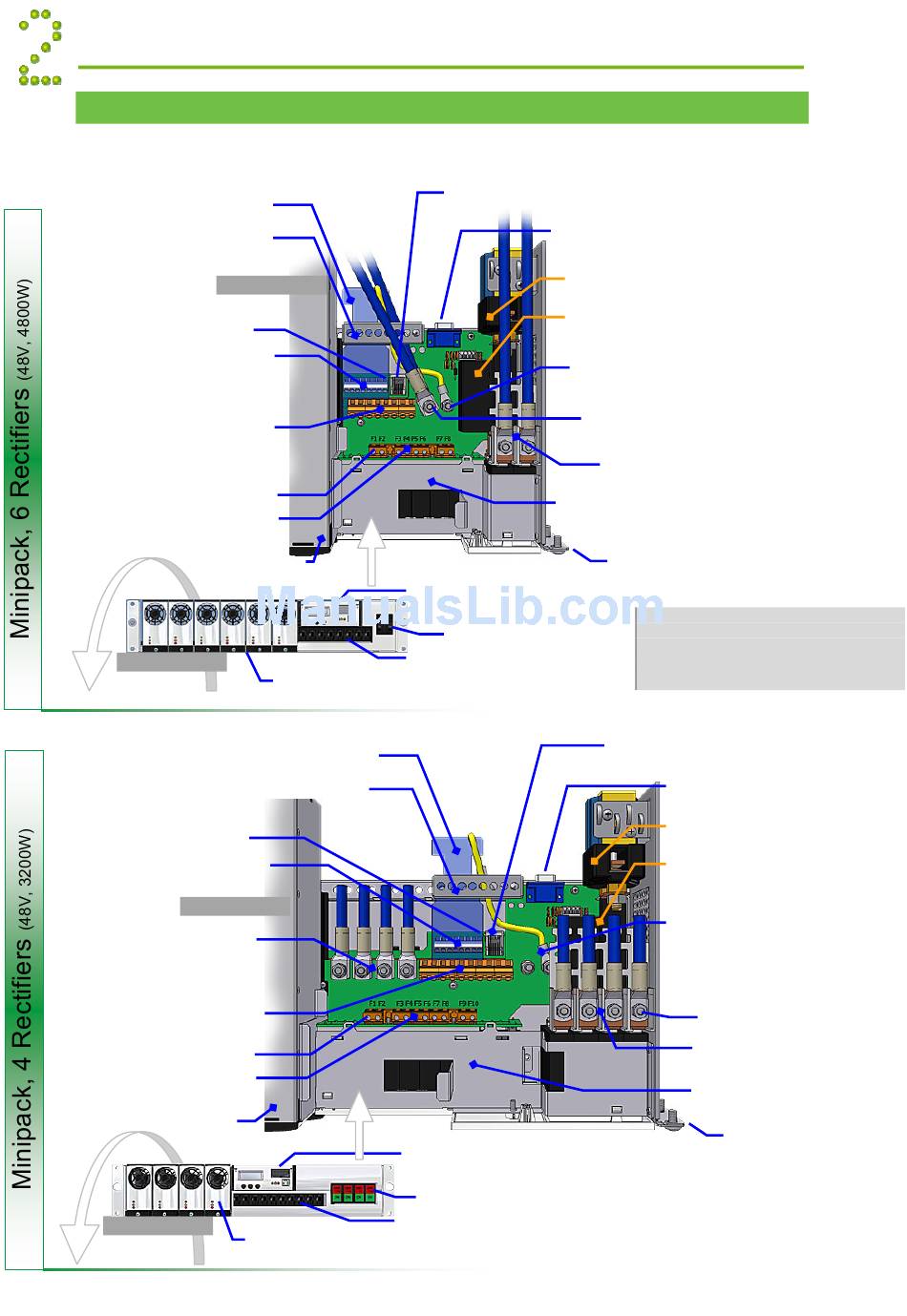

Location of Components, GA drawing
The drawings show the location of components in Minipack PS Systems. Or refer to specific
drawings included with your system.
Plastic Protective Cover for
AC Terminals
Cable Fastening Plate
X5: pin 1
AC Mains
AC Mains & Earth (PE) Terminals
Common DC Output (+)
Load terminal block
X6B: pin 1
DC Output (−)
Load terminal block
Minipack Rectifier
Front view
Plastic Protective Cover for
Cable Fastening Plate
X5: pin 1
AC Mains
AC Mains & Earth (PE) Terminals
Top view
Common Battery (+)
X7A, Battery connections
X6A:
Common DC Output (+)
Load terminal block
X6B: pin 1
DC Output (−)
Load terminal block
Minipack Rectifier
Front view
8
Top view
X6A:
Minipack rectifiers
AC Terminals
Load MCBs
Minipack rectifiers
Quick Start Guide Minipack PS System
CAN1
CAN bus communication with rectifiers (to Smartpack rear)
CON5A, For internal connections
(to Smartpack rear)
LVBD latching contactor
LVLD latching contactor (optional)
DC Earth
X7A, Exchange Ground (EG) or system
ground. Link connected to chassis
Location of
Smartpack controller
Smartpack controller
Battery Fuses
Load MCBs
Smartpack controller
Battery Fuses
Common Battery (+)
X7A, Battery connections
Fb1, Fb2
Battery connections (−)
Forward sliding
drawer shelf
NOTE: For information about connecting
Battery Symmetry, Temperature Sensor,
Alarm and Monitoring circuits, refer to
section "Appendix", and read the Battery
Monitoring, Alarms & Monitoring chapters.
CAN1
CAN bus communication with rectifiers
(to Smartpack rear)
CON5A, For internal connections
(to Smartpack rear)
LVBD latching contactor
LVLD latching contactor (optional)
DC Earth
X7A, Exchange Ground (EG) or
system ground.
Link connected to chassis
Fb1
Fb1, Fb2, Fb3, Fb4
Battery connections (−)
Location of
Smartpack controller
Forward sliding
drawer shelf
