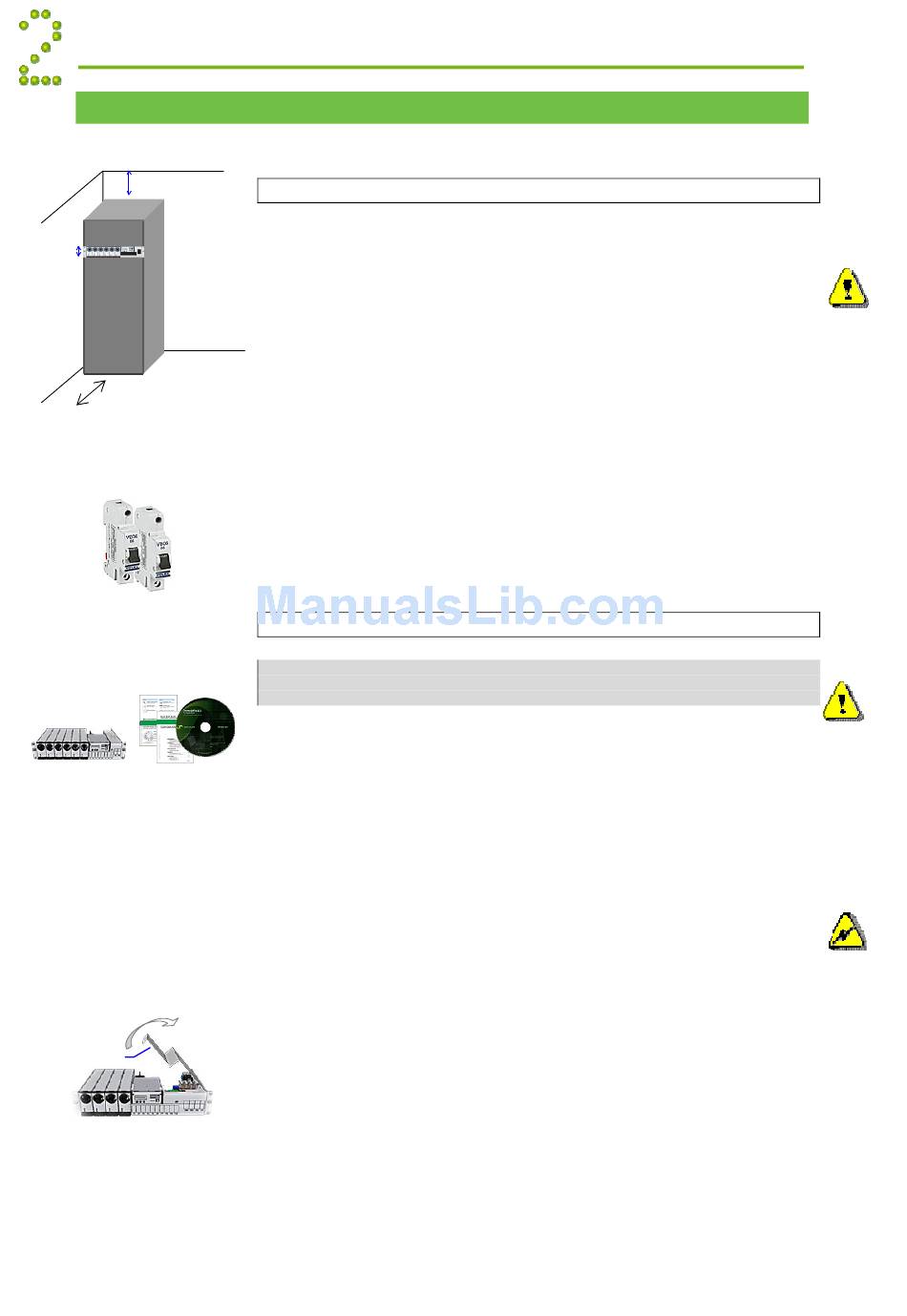

Installation

Installation Steps

200 mm
2U
600 mm
Minipack System, Cabinetized
(Minipack PSS subassembly
mounted in a cabinet)
Minipack PSS (subassembly),
Doc. Chart, QS Guide, Spec.
Dwgs, CD-ROM
Plastic Cover
Minipack drawer shelf slid out in
the maintenance position
6
Check off in the Installation Check List, that you find in the pullout section of
this folder. Also, refer to the system's specific drawings.
Preparing the Installation Site
Begin preparing the following:
1 Organize the installation site
o A 2U high spare location in existing 19", 250 mm cabinet
o Min. Clearances: 60 cm in front
o Explosive atmospheres are to be avoided. Ensure suitable
ventilation
2 Prepare the installation tools
o Use insulated tools suitable for telecom installations
3 Prepare AC Supply: AC input cable(s) and fuses
o Correct type AC supply is available
o External AC fuses have correct rating
o AC input cable(s) are sized correctly
For external AC fuses and AC input cable ratings, refer to your site's AC
supply specification. Read also our external AC fuse recommendations
in section "Appendix". In general, a site with better AC supply quality
(stable nominal voltage) may use smaller breakers.
Mechanical Installation
Carry out the following:
CAUTION: When transporting cabinetized Minipack systems with mounted rectifier modules,
ensure that support plates or structures are always mounted under the Minipack PSS
subassemblies.
4 Remove packaging and check equipment
o Check you have received all the parts and correct documentation
o Inspect the equipment for physical damage (report any damages)
o Leave rectifier modules in their packaging or in the selves, if
factory installed. To be installed under commissioning
5 Remove the cabinet's top cover and dummy front panel
o Connection terminals are accesses by opening the drawer shelf
o Battery shelves (if any) are placed behind the lower panels
6 Position and fasten the subassembly
o Minipack is fastened in existing 19" or in ETSI cabinets, using
brackets
o If required, mount the special 3ph AC Input Connection Kit, part
228898 (4800W systems) or part 238394 (3200W systems).
Follow the kit's documentation or Doc. 2045089
7 Mount the external batteries on the shelves
o Start (if applicable) placing the batteries on the lower shelf first,
and continue upwards
o Do not terminate the battery cables yet!
8 Open the Minipack drawer shelf and lift the plastic cover
o Unlock the upper and lower screws and slide the drawer shelf
open; read the Installation & Maintenance Details chapter
o Lift the Melenex plastic cover to access the connection terminals
Quick Start Guide Minipack PS System
EMC
regard
Power is OFF!
Device
hazard
Electric
shock
356808.103, 1v2-2008-10
