Summary of Contents for Eltek Valere PSR380

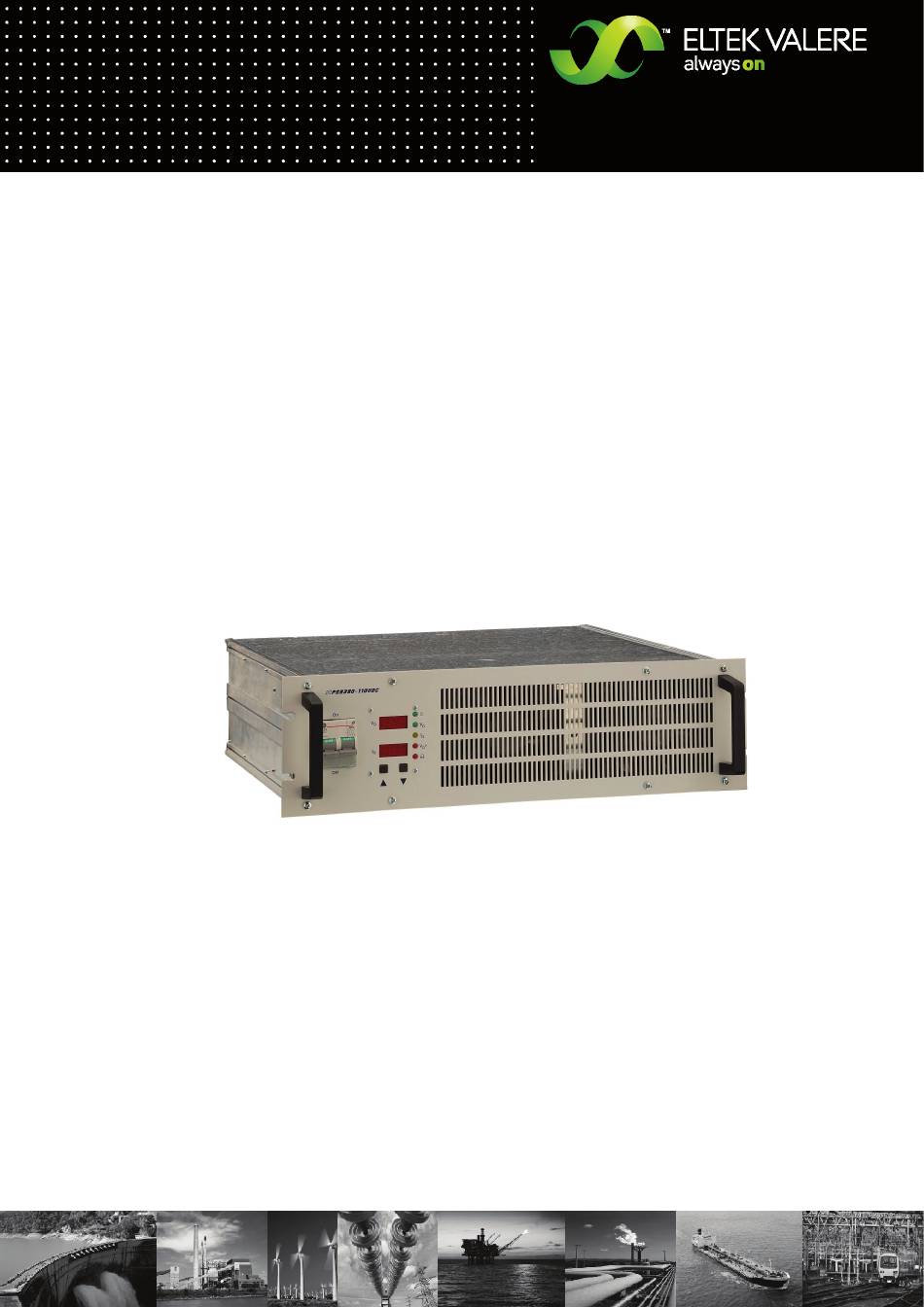

- Page 1 RECTIFIER PSR380 (110 & 220V VERSION) USER MANUAL UM_PSR380_110_220V_E_R1.0...
- Page 2 89/339 EWG (electromagnetic compatibility) if the installation and operation instructions are followed. Supplier: ELTEK VALERE INDUSTRIAL GmbH Schillerstraße 16 D-32052 Herford + 49 (0) 5221 1708-210 + 49 (0) 5221 1708-222 Email Info.industrial@eltekvalere.com Internet http://www.eltekvalere-industrial.com © Copyright ELTEK VALERE INDUSTRIAL 2007. All rights reserved. ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0...
- Page 3 Revision of the former edition “UM_PSR380_2006_E_R03” (layout 2007-11-08 change, limited to 110/220V version) Section “Commissioning” reworked, section “CAN-Bus addressing” 2008-04-24 inserted, minor text modifications Index of figures inserted, minor text modifications, new revision 2009-03-10 status numbering (X.X) introduced. ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0...
-
Page 4: Table Of Contents
Index of figures Figure 1) Front view....................................7 Figure 2) Electrical connectors (110 & 220V version) ........................8 Figure 3) Module airflow..................................9 Figure 4) Output power diagram (PSR380/110V) ..........................11 Figure 5) Module dimensions ................................17 ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0... -
Page 5: Safety Instructions And Waste Disposal Rules
The above statement from EU directive 2002/96/EC applies to all electric modules installed within EU countries. In countries outside the EU, different rules may apply regarding waste disposal of electric modules. For more information about waste disposal of your discarded equipment, contact your ELTEK VALERE INDUSTRIAL partner. ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0... -
Page 6: General Information
2. General Information The rectifier PSR380 rectifies sinusoidal three-phase AC input voltage to DC output voltage. The PSR380 has rear side connectors and is designed to be mounted in an assembly kit (19’’ sub rack) according to section 3.2. Due to the state-of-the-art circuit design the unit has low losses and therefore very compact dimensions, low weight and a very high power density. -
Page 7: Front View/Operation Elements
In the initial state (operating mode), the upper display indicates the output voltage, the lower display indicates the output current. At the setting mode (see section 4.6.1) the parameters to be set are shown at the displays. For more information about the displays and operation elements, see the following sections. ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0... -
Page 8: Electrical Connectors
Page 8 (20) 3.4 Electrical Connectors The PSR380 is designed to be mounted in an assembly kit (19’’ sub rack) with backplane. Figure 2) shows the terminal area (AC input, DC output and signals) of the backplane. Figure 2) Electrical connectors (110 & 220V version) shown from the rear side of the backplane ELTEK VALERE INDUSTRIAL ©2007... -
Page 9: Cooling And Air Flow Direction
3.6 Communication Interface The PSR380 rectifier is equipped with a serial data interface in accordance with the Controller Area Network (CAN) specification. The CAN-Bus connection is integrated in the rear side connector of the module and is available as an RJ11 (6-pole) connector at the backplane of the assembly kit. -
Page 10: Handling
Secure the module using four screws (M4x12). Note: The PSR380 (110 & 220V version) is not serially equipped with an internal decoupling on the output. An external decoupling diode is required for hot plug-in functionality (that enables the operator to add modules even under operating conditions). -
Page 11: Charge Characteristic Curve/Output Power Diagram
Page 11 (20) 4.3 Charge Characteristic Curve/Output Power Diagram The charge characteristic curve of the PSR380 is a power limited IV-characteristic curve according to DIN 41772/DIN 41773. For devices in parallel operation mode a current balancing of approximately ±10% is attained due to a sloping output voltage line (-1% at 100% Imax). -
Page 12: Led Indications
3 times. If this fails the module value. (criterion: Vout ≤83% of Vnom) switches off and must be manually restarted. *For factory-preset output voltage threshold values, see section 4.6 ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0... -
Page 13: Factory-Preset Default And Threshold Values
User Manual Page 13 (20) 4.6 Factory-preset default and threshold values The following default values (factory-preset) are stored in the PSR380. But the values can be changed by the user according to his requirements (see section 4.6.1). Default values 110V version... -
Page 14: External Functions
If an external sensor lead for the output Check voltage is used: Is the connection faultless? If the unit still does not work even though all checks are done, please contact your sales agent or the ELTEK VALERE INDUSTRIAL service department. ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0... -
Page 15: Technical Specifications
Yes (max. 48 units with DC controller unit UPC3); current balancing ≤10% Iomax; sloping output voltage line (-1% at 100% Iomax) Internal decoupling at the no; external decoupling diode required (hot plug-in functionality) output Internal output fuse no, external fuse required ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0... - Page 16 28kg Type of enclosure IP20 (front panel) Colour (front panel) RAL 7035; blackprint Compliances: CE conformity Compliance to safety standards EN60950-1; VDE0100 T410; VDE0110; EN50178; EN60146 Compliance to EMC standards EN55011/22 class “B“; EN61000-4 T2-5 ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0...
-
Page 17: Dimensional Drawings
Rectifier PSR380 (110 & 220V) User Manual Page 17 (20) 8.1 Dimensional Drawings Figure 5) Module dimensions ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0... -
Page 18: Notes
Rectifier PSR380 (110 & 220V) User Manual Page 18 (20) 9 Notes ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0... - Page 19 Rectifier PSR380 (110 & 220V) User Manual Page 19 (20) Notes ELTEK VALERE INDUSTRIAL ©2007 UM_PSR380_110_220V_E_R1.0...
- Page 20 Supplier: ELTEK VALERE INDUSTRIAL GmbH Schillerstraße 16 D-32052 Herford + 49 (0) 5221 1708-210 + 49 (0) 5221 1708-222 Email Info.industrial@eltekvalere.com Internet http://www.eltekvalere-industrial.com © Copyright ELTEK VALERE INDUSTRIAL 2009. All rights reserved.
