Details
Plug for MCB1
Minipack front
MCB1
MCB8
0
1
MCB8
(Upper and
lower plugs)
Priority Load Screws
(accessible with unplugged MCBs)
Plugs for MCB1
F3-F10 Screw (Y6)
F5-F10 Screw (Y7)
F7-F10 Screw (Y24)
F9-F10 Screw (Y25)

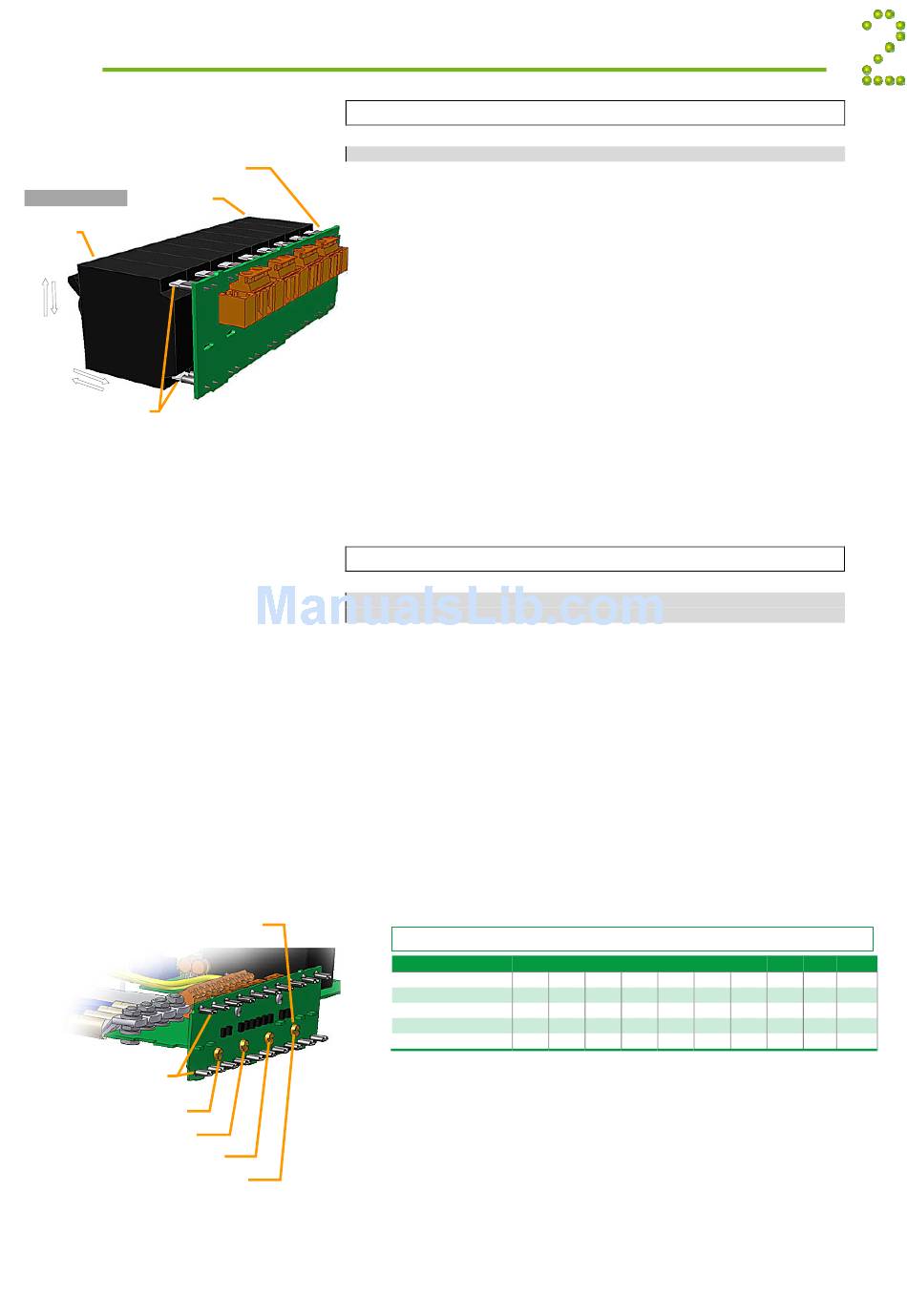

Quick Start Guide Minipack PS System
Removing or Mounting Load MCBs
CAUTION: Power must be OFF during this operation!
1. Remove the F1, F2... plastic cover by
unscrewing the cover's frontal screw,
then inserting a small screwdriver into the cover's gap and
carefully press down and out to release the locking tabs.
2. Switch OFF the MCB by
switching the MCB handle to "0" position (upwards)
3. Remove or insert the MCB by
using your fingers — or the MCB extraction tool, if
available — to pull out and unplug the MCB
or
pressing the MCB into the upper and lower plugs
Configuring Priority and Non-Priority Load Circuits
CAUTION: Power must be OFF during configuration! Only one screw may be
removed.
1. Remove the F1, F2... plastic cover by
unscrewing the cover's frontal screw,
then inserting a small screwdriver into the cover's gap and
carefully press down and out to release the locking tabs.
2. Switch OFF and unplug the actual MCBs by
switching the MCB handle to "0" (upwards),
then using your fingers to pull out the MCB
3. Remove the actual Priority Load Screw by
using a screwdriver to unscrew the Priority Load Screw
(refer to table below).
Keep the removed screw in the clip, on the cover's inside
Configuration of Priority & Non Priority Load Circuits
Screw Removed F1
None P
Y25 NP
Y24 NP
Y7 NP
Y6 NP
WARNING: Only one screw can be removed at a time.
P=Priority Load Circuits
356808.103, 1v2-2008-10
Installation
F2 F3 F4 F5 F6
P P P P P
NP NP NP NP NP
NP NP NP NP NP
NP NP NP P P
NP P P P P
NP =Non Priority Load Circuits
F7 F8 F9 F10
P P P P
NP NP P P
P P P P
P P P P
P P P P
5
