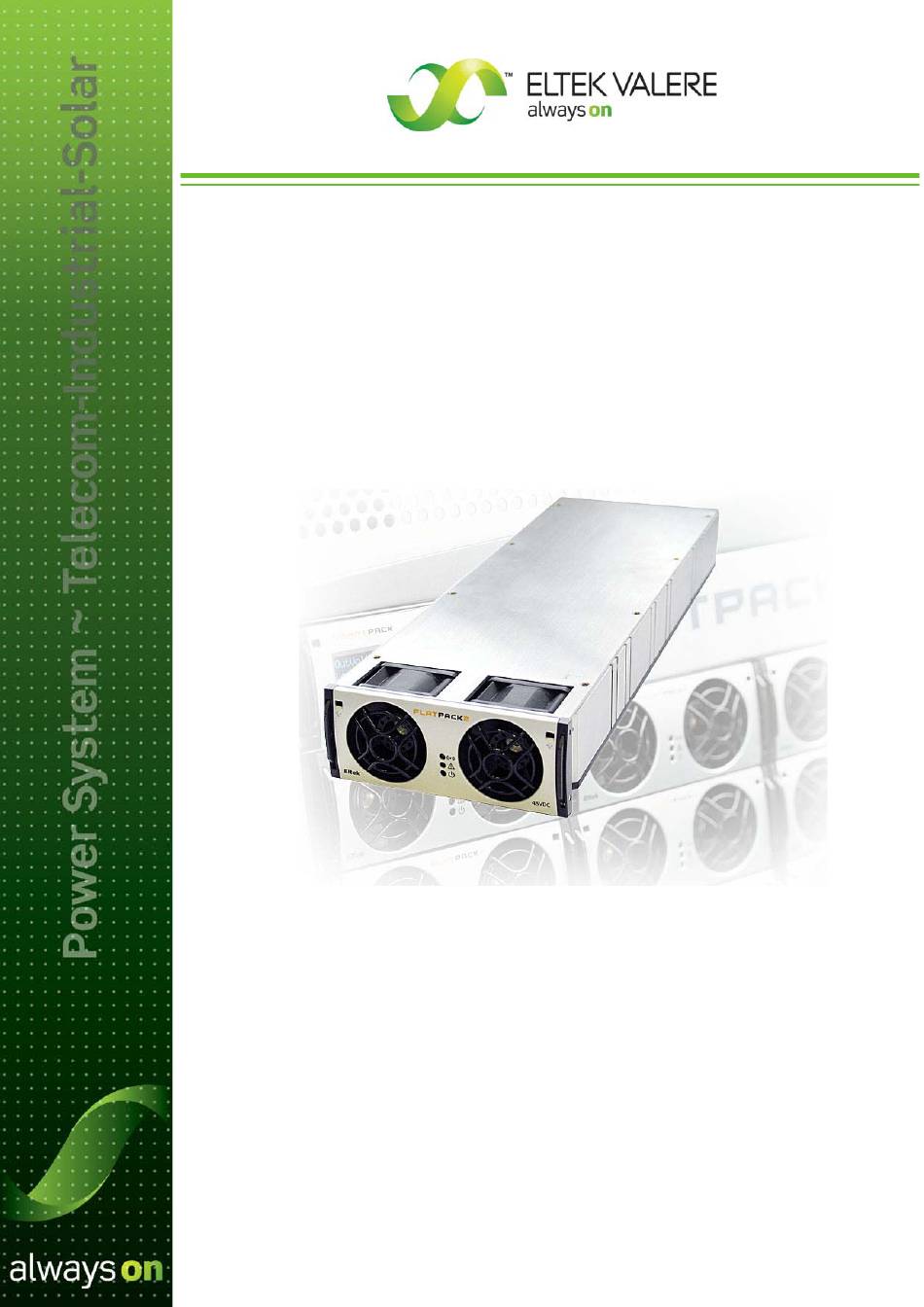

- Page 1 User's Guide Flatpack2 Rectifiers Flatpack2 DC Power Supply Systems 350002.013...
- Page 2 4072-2007-AQ-NOR-NA The equipment described in this manual must only be operated by Eltek Valere personnel or by persons who have attended a suitable Eltek Valere training course The equipment represents an energy hazard and failure to observe this could cause terminal injury and invalidate our warranty ...
-
Page 3: Table Of Contents
Specifications Flatpack2 Rectifier 48V, 3000W HE ............23 Specifications Flatpack2 Rectifier 48-60V, 2000W HE ..........24 Specifications Flatpack2 Solar Charger 48V, 1500W HE – (Solar) ......25 Specifications Flatpack2 Rectifier 110VDC, 2000W HE WOR - (Industrial) ....26 Specifications Flatpack2 Rectifier 220VDC, 2000W HE WOR - (Industrial) ....27 Specifications Flatpack2 Rectifier 48V, 2000W HE, BF .......... -
Page 4: Introduction
Flatpack2 PS System ~ Telecom The example in Figure 1 represents a typical Flatpack2 PS system for DC power supply of telecom equipment. The system is fed from an external AC mains supply, and consists of rectifiers in power shelves, a controller and DC distribution unit. -
Page 5: Flatpack2 Ps System ~ Hybrid Solar
1 Introduction Flatpack2 PS System ~ Hybrid Solar The example in Figure 2 represents a typical hybrid, solar Flatpack2 PS system for DC power supply of telecom and industrial equipment. The system is fed from strings of solar panels (DC feed), and uses a diesel generator as AC feed backup at night and during cloudy days, thus ensuring extra battery charging. -
Page 6: Flatpack2 Ps System ~ Industrial
1 Introduction Flatpack2 PS System ~ Industrial The example in Figure 3 represents a typical Flatpack2 PS system for DC power supply of industrial equipment, in all areas of the industry, power generation and distribution. The system is fed from an external AC mains supply, and consists of rectifiers in power shelves, a system controller and DC distribution unit. -

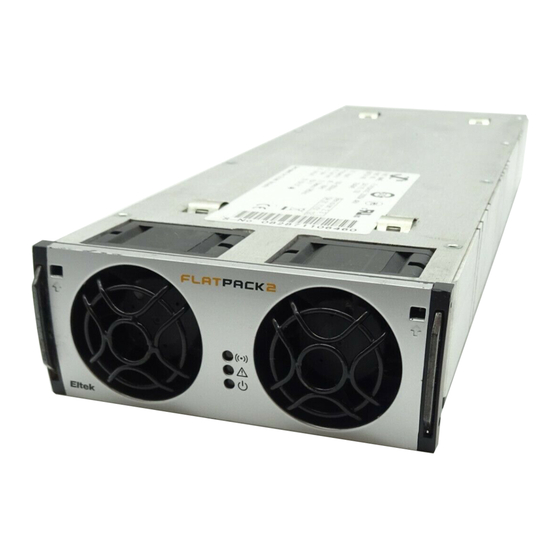

Page 7: Flatpack2 Rectifier
Flatpack2 DC power systems are implemented by mounting the rectifiers in 23” or 19” power shelves (4 rectifiers across). A wide range of features are implemented in the Flatpack2 rectifier, as mentioned below. Key Features Highest efficiency in minimum space Resonant topology makes the module efficiency industry leading, and contributes to the rectifier’s ultra compact dimensions. -
Page 8: Module Options
Flatpack2 Rectifier 48V, 2000W BF 241115.115 Flatpack2 Rectifier 48V, 2000W HE, BF CAUTION: Never install Flatpack2 rectifiers in power shelves with different output voltage than the rectifier’s. The rectifier’s output voltage and the power system’s output voltage must always be the same. Device Hazard... -
Page 9: Flatpack2 Rectifier 24V, 1800W He
2 Flatpack2 Rectifier Flatpack2 Rectifier 24V, 1800W HE Part number 241115.205. For a description, refer to chapter “Flatpack2 Rectifier 48V, 2000W HE”, page 9. For technical data, read chapter “Specifications Flatpack2 Rectifier 24V, 1800W HE”, page 18. Flatpack2 Rectifier 48V, 1800W Part number 241115.001. -
Page 10: Flatpack2 Rectifier 48V, 3000W He
The Flatpack2 HE SOLAR charger is suitable for any telecom site with autonomous (solar only) or hybrid solar power. It can be used in parallel with any other Flatpack2 rectifiers (front-to-back air flow systems only) fed by generator or unreliable mains, on hybrid sites. -
Page 11: Flatpack2 Rectifier 110Vdc, 2000W He Wor - (Industrial)
84 to 105 are fully supported. The “Flatpack2 Rectifier 110VDC, 2000W HE WOR” is only to be used in Smartpack2-based or UPC4-based power systems. The rectifiers are to be mounted in dedicated High Current &... -
Page 12: Heat Management ~ Back-To-Front Air Flow
2 Flatpack2 Rectifier Heat Management ~ Back-to-Front Air Flow Air Flow The following Flatpack2 rectifier options are always to be installed in power systems designed for Back-to-Front Air Flow heat management. CAUTION: Do not install rectifiers with Front-to-Back heat management in power systems designed for Back-to-Front heat management;... -
Page 13: Installation Of Flatpack2 Rectifiers
CAUTION: Do not relocate already hot-plugged rectifiers to other positions in the power shelf. New Flatpack2 rectifiers must be hot-plugged in the power shelf, one at time, starting with position 1, 2, 3 and so on. This is usually performed before shipment of the system. Read your system’s quick start guide for more information. -
Page 14: Connections
CAN Bus Addressing (plug-and-play) When a Flatpack2 rectifier is hot-plugged in the power shelf the first time, the system’s main controller automatically assigns the rectifier with the next available ID number (CAN bus address). The rectifier will retain its ID (and serial number), even after removing and reinserting it in the power shelf. -
Page 15: Operation
4 Operation 4. Operation The Flatpack2 Rectifier Module is designed for parallel operation in a system. The front panel LEDs provides information about the rectifier status and CAN bus activity. Front Panel Interface Warning Alarm LED Lamp (yellow) LED Lamp (red) Figure 6 Example of a Flatpack2 Rectifier Module’s front panel... -
Page 16: Technical Specifications
5 Technical Specifications 5. Technical Specifications Specifications Flatpack2 Rectifier 24V, 2000W AC Input Other Specifications Voltage 85-290 VAC (Nominal 176 – 275 VAC) Efficiency Typical 89% Isolation 3.0 KVAC – input and output Frequency 44 to 66Hz 1.5 KVAC – input earth Maximum 13.0 A... -
Page 17: Specifications Flatpack2 Rectifier 24V, 2000W Wor
5 Technical Specifications Specifications Flatpack2 Rectifier 24V, 2000W WOR AC Input Other Specifications Voltage 85-300 VAC (Nominal 185 – 275 VAC) Efficiency Typical 91% Isolation 3.0 KVAC – input and output Frequency 44 to 66Hz 1.5 KVAC – input earth Maximum 12.5 A... -
Page 18: Specifications Flatpack2 Rectifier 24V, 1800W He
5 Technical Specifications Specifications Flatpack2 Rectifier 24V, 1800W HE AC Input Other Specifications Voltage 85-300 VAC (Nominal 176 – 275 VAC) Efficiency >95% at 30-70% load Isolation 3.0 KVAC – input and output Frequency 45 to 66Hz 1.5 KVAC – input earth Maximum Current 11.25 A... -
Page 19: Specifications Flatpack2 Rectifier 48V, 1800W
5 Technical Specifications Specifications Flatpack2 Rectifier 48V, 1800W AC Input Other Specifications Voltage 85-300 VAC (Nominal 185 – 275 VAC) Efficiency Typical 92%, min. 91% at 40-90% load Isolation 3.0 KVAC – input and output Frequency 45 to 66Hz 1.5 KVAC – input earth Maximum 10.7 Arms maximum at nominal input and... -
Page 20: Specifications Flatpack2 Rectifier 48V, 2000W
5 Technical Specifications Specifications Flatpack2 Rectifier 48V, 2000W AC Input Other Specifications AC Voltage 85-300 VAC (Nominal 185 – 275 VAC) Efficiency Typical 92%, min. 91% at 40-90% load Isolation 3.0 KVAC – input and output Frequency 45 to 66Hz 1.5 KVAC –... -
Page 21: Specifications Flatpack2 Rectifier 48V, 3000W
5 Technical Specifications Specifications Flatpack2 Rectifier 48V, 3000W AC Input Other Specifications Voltage 85-300 VAC Efficiency Typical 93%, (Nominal 176 – 275 VAC) min. 92% at 25-100% load Frequency 45 to 66Hz Isolation o 3.0 KVAC – input and output o 1.5 KVAC –... -
Page 22: Specifications Flatpack2 Rectifier 48V, 2000W He
5 Technical Specifications Specifications Flatpack2 Rectifier 48V, 2000W HE AC Input Other Specifications Voltage 85-300 VAC (Nominal 185 – 275 VAC) Efficiency >96% at 30-70% load Isolation 3.0 KVAC – input and output Frequency 45 to 66Hz 1.5 KVAC – input earth Maximum Current 11.6 A... -
Page 23: Specifications Flatpack2 Rectifier 48V, 3000W He
5 Technical Specifications Specifications Flatpack2 Rectifier 48V, 3000W HE AC Input Other Specifications Voltage 85-300 VAC (Nominal 176 – 277 VAC) Efficiency >95.5% at 25-75% load Isolation 3.0 KVAC – input and output Frequency 45 to 66Hz 1.5 KVAC – input earth Maximum Current 19.2 A... -
Page 24: Specifications Flatpack2 Rectifier 48-60V, 2000W He
5 Technical Specifications Specifications Flatpack2 Rectifier 48-60V, 2000W HE AC Input Other Specifications Voltage 85-300 VAC (Nominal 185 – 275 VAC) Efficiency >95% at 30-70% load Frequency 45 to 66Hz Isolation 3.0 KVAC – input - output 1.5 KVAC – input earth Maximum 11.6 A... -
Page 25: Specifications Flatpack2 Solar Charger 48V, 1500W He - (Solar)
5 Technical Specifications Specifications Flatpack2 Solar Charger 48V, 1500W HE – (Solar) Input Other Specifications Voltage Nominal: 170 – 230 VDC Efficiency >96% at 30-80% load and 200VDC input Tolerances: 85-265 VDC Isolation 3.0 KVAC – input and output Start-up voltage 150VDC 1.5 KVAC –... -
Page 26: Specifications Flatpack2 Rectifier 110Vdc, 2000W He Wor - (Industrial)
5 Technical Specifications Specifications Flatpack2 Rectifier 110VDC, 2000W HE WOR - (Industrial) Other Specifications AC Input Voltage 85-300 VAC (Nominal 185 – 275 VAC) Efficiency >94% at 30-70% load Isolation 3.0 KVAC – input to output Frequency 45 to 66Hz 1.5 KVAC –... -
Page 27: Specifications Flatpack2 Rectifier 220Vdc, 2000W He Wor - (Industrial)
5 Technical Specifications Specifications Flatpack2 Rectifier 220VDC, 2000W HE WOR - (Industrial) AC Input Other Specifications Voltage 85-300 VAC (Nominal 185 – 275 VAC) Efficiency >95% at 35-65% load Isolation 3.0 KVAC – input to output Frequency 45 to 66Hz 1.5 KVAC –... -
Page 28: Specifications Flatpack2 Rectifier 48V, 2000W He, Bf
5 Technical Specifications Specifications Flatpack2 Rectifier 48V, 2000W HE, BF AC Input Other Specifications Voltage 85-300 VAC (Nominal 185 – 275 VAC) Efficiency >96% at 35-60% load Isolation 3.0 KVAC – input and output Frequency 45 to 66Hz 1.5 KVAC – input earth Maximum Current 11.6 A... - Page 29 5 Technical Specifications User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09...
- Page 30 5 Technical Specifications User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09...
- Page 31 5 Technical Specifications User’s Guide Flatpack2 Rectifier Modules, 350002.013, 7v0-2010-09...
- Page 32 Headquarters: Eltek Valere Gråterudv. 8, Pb 2340 Strømsø, 3003 Drammen, Norway Phone: +47 32 20 32 00 Fax: +47 32 20 32 10...
