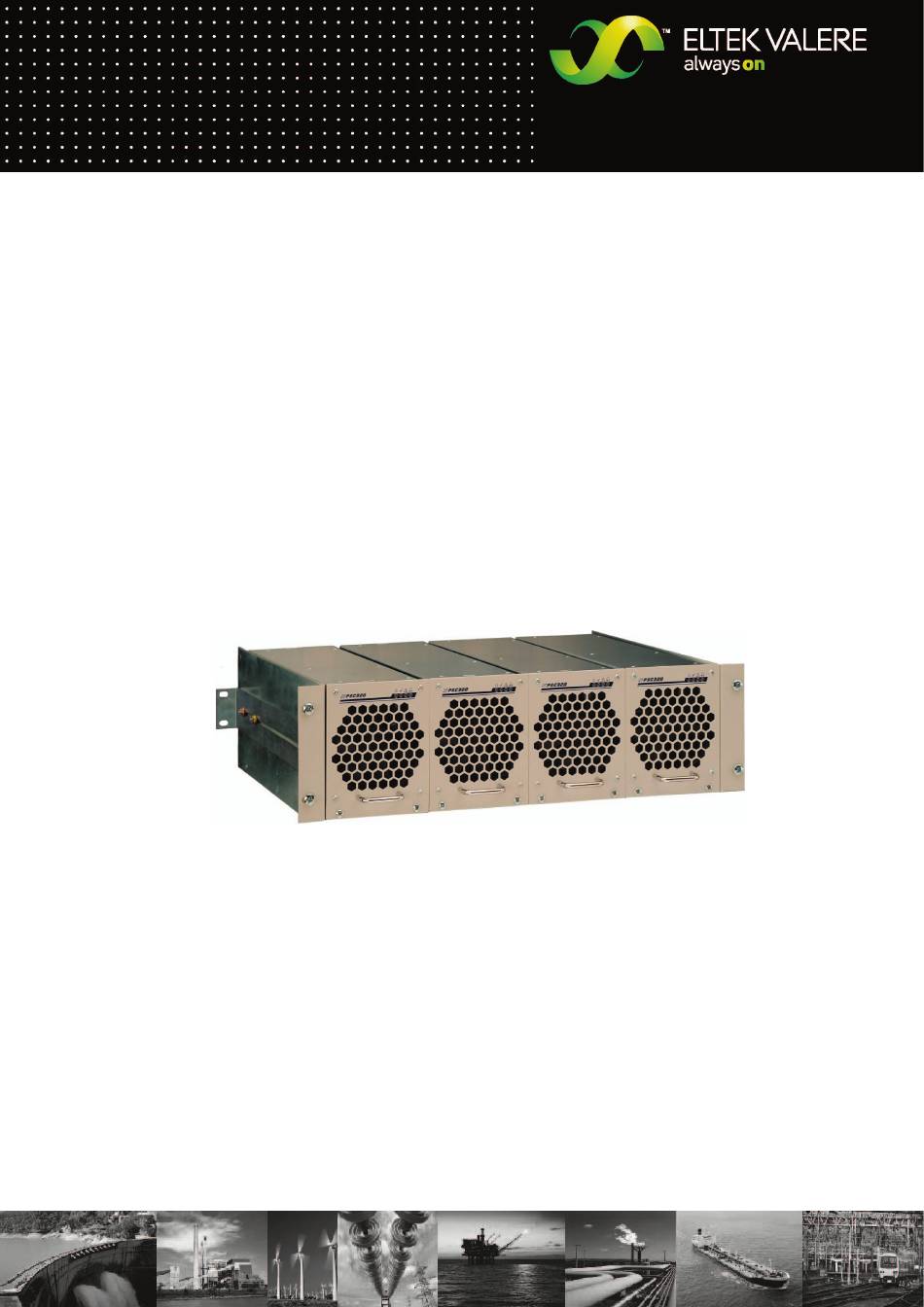

- Page 1 DC/DC Power Rack DDR PSC320-8.0 HV USER MANUAL UM_DDR_PSC320-8.0_HV_E_R1.0...
- Page 2 Supplier: ELTEK VALERE INDUSTRIAL GmbH Schillerstraße 16 D-32052 Herford + 49 (0) 5221 1708-210 + 49 (0) 5221 1708-222 Email Info.industrial@eltekvalere.com Internet http://www.eltekvalere-industrial.com © Copyright ELTEK VALERE INDUSTRIAL 2008. All rights reserved. ELTEK VALERE INDUSTRIAL ©2008 UM_DDR_PSC320-8.0_HV_E_R1.0...
- Page 3 DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 3 (20) The current revision status of this user manual is the following: Revision: Date: 2008-11-19 Revision Description of change Writer Date First edition 2008-11-19 ELTEK VALERE INDUSTRIAL ©2008 UM_DDR_PSC320-8.0_HV_E_R1.0...
-
Page 4: Table Of Contents
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 4 (20) Table of Contents 1. SAFETY INSTRUCTIONS AND WASTE DISPOSAL RULES ...............5 2. GENERAL INFORMATION ..........................6 Block Diagram ..............................6 Possible rack configurations ...........................7 Perspective View..............................8 Optional Equipment ............................8 Cooling and Air Flow Direction.........................9 3. -
Page 5: Safety Instructions And Waste Disposal Rules
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 5 (20) 1. Safety Instructions and Waste Disposal Rules Warning! Because several components of operating electrical devices are charged by dangerous voltage, the improper handling of electrical devices may be the cause of accidents involving electrocution, injury, or material damages. -
Page 6: General Information
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 6 (20) 2. General Information The DC/DC power rack is a unit ready for integration in system cabinets with a standard 19’’ frame. The unit can be equipped with a maximum of four DC/DC converters of type PSC320 (PSC312) and delivers an output power to a maximum of 8kW (PSC312: 4.8kW). -
Page 7: Possible Rack Configurations
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 7 (20) Possible rack configurations Up to four DC/DC converters PSC320HV (PSC312HV) with output voltages according to the table below can be integrated into one rack. For DC/DC converter type/ Designation... -
Page 8: Perspective View
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 8 (20) Perspective View Figure 2) - Power rack fully equipped with four DC/DC converters PSC320. Four screws M6 to fix the sub rack to the frame of the system cabinet... -
Page 9: Cooling And Air Flow Direction
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 9 (20) Cooling and Air Flow Direction The modules are cooled with internal fans. The airflow is from the front to rear side. The fans are monitored and speed controlled dependent on module temperature. To provide sufficient air flow, a minimum space (see figure 3, item “A”) of 50 mm is required between the backplane of the rack and... -
Page 10: Handling
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 10 (20) 3. Handling Storage Power racks must be stored in a dry, dust free environment with a storage temperature in accordance with the specific technical data (see section 5). Commissioning 1. -
Page 11: Communication Interface
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 11 (20) View into the empty DC/DC power rack: Slot1 Slot2 Slot3 Slot4 PSC320 PSC320 PSC320 PSC320 Figure 5) - Front view of the empty rack Figure 6) - Rotary switch= CAN... -
Page 12: Can Address Designation
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 12 (20) 3.2.3 CAN Address Designation All racks (modules) within a system must be addressed for a clear identification through the control unit. The specific address for each rack must be designated with the CAN address selector (rotary switch) shown in figure 6). -
Page 13: Rear View/Electric Connectors
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 13 (20) 3.2.5 Rear View/Electric Connectors Figure 8) - Rear view With the stickers affixed on the plexiglass guard, the connectors are labelled (X1 … X10) for a clear identification. Connect the input and output wires as well as the alarm wires to the rear connectors in accordance with the connection table on following page. -
Page 14: Connection Table
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 14 (20) 3.2.6 Connection Table Assignment of the rear side connectors according to figure 9). Connec- Function Recommended wire cross section DC input 1 2.5 mm 2.5 mm Plus (+) 2.5 mm... -
Page 15: Schematic Diagram (Example Of Use)
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 15 (20) 3.2.7 Schematic Diagram (Example of use) Figure 10) - Schematic diagram An individual fuse for each input is recommended! With this fuses each module individually can be switched ON/OFF and therefore unused slots are isolated (higher safety level). -
Page 16: Maintenance
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 16 (20) 4. Maintenance In general, the system is maintenance-free. A yearly inspection with following checks is recommended: • Correct fan operation (modules) • Optical/mechanical inspection • Removal of dust and dirt •... -
Page 17: Technical Specifications
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 17 (20) 5. Technical Specifications Type designation DDR PSC320-8.0 HV Article code 202-320-408.00 Main Data: Modules Designed for the use of one up to max. four DC/DC converters of series PSC312 (Vo= 24V ) or PSC320 (Vo= 48;... -
Page 18: Dimensional Drawings
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 18 (20) Minimum installation depth 438 mm Weight approx. 4.9 kg (excluding PSC modules) Applicable standards: Mechanical construction acc. to VDE 0160 edition 5.88 chapter 7.2.2 Protection class IP20 Climatic conditions acc. -
Page 19: Notes
DC/DC Power Rack DDR PSC320-8.0 HV User Manual Page 19 (20) 6. Notes ELTEK VALERE INDUSTRIAL ©2008 UM_DDR_PSC320-8.0_HV_E_R1.0... - Page 20 Supplier: ELTEK VALERE INDUSTRIAL GmbH Schillerstraße 16 D-32052 Herford + 49 (0) 5221 1708-210 + 49 (0) 5221 1708-222 Email Info.industrial@eltekvalere.com Internet http://www.eltekvalere-industrial.com © Copyright ELTEK VALERE INDUSTRIAL 2008. All rights reserved.
