SET MODE
Set mode items

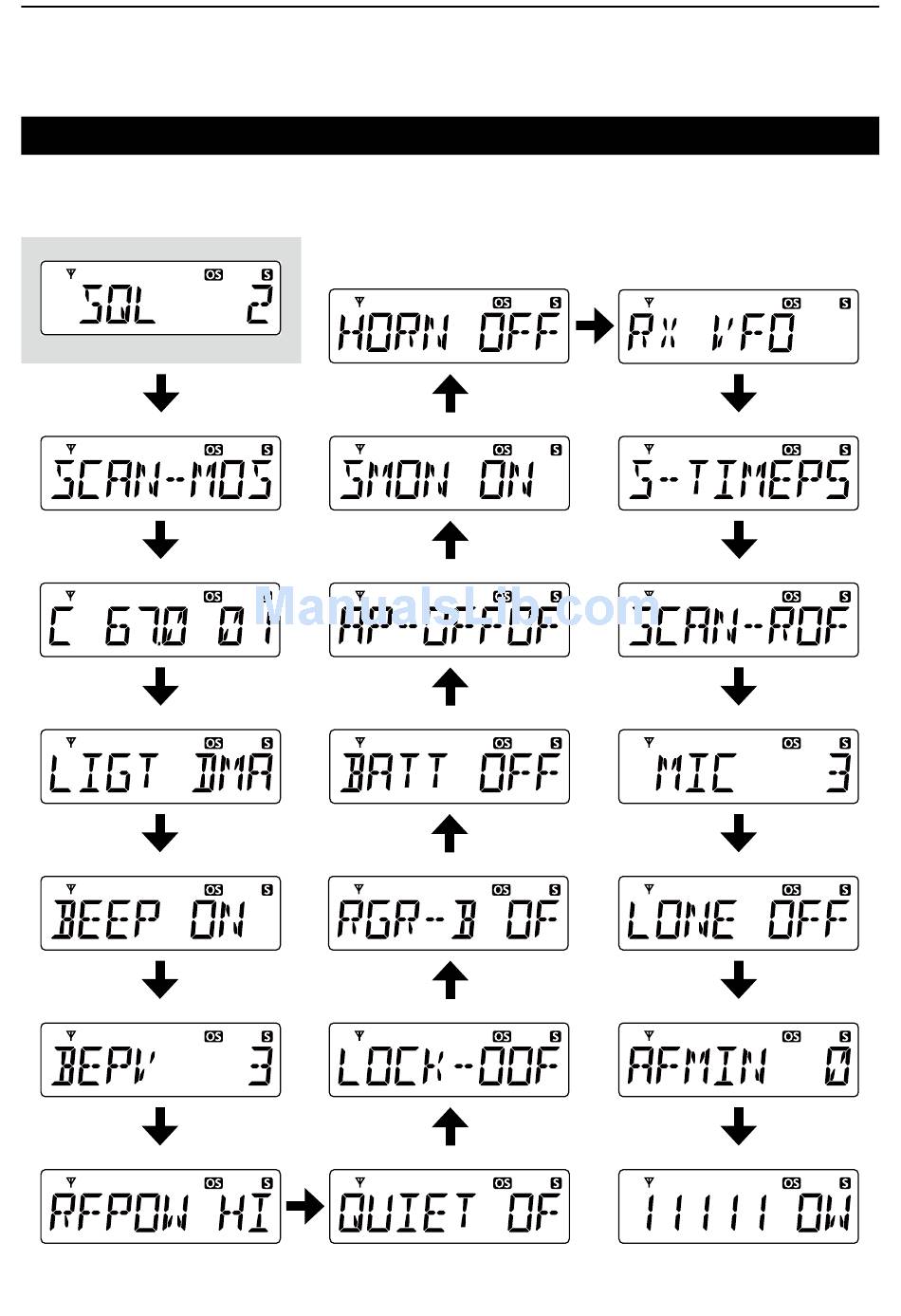

D Set mode sequence
The table below describes the sequence of the items in the Set mode.
• The sequence is as shown below when you push [FUNC] in the Set mode.
• Squelch level
Starting item
• Scan mode
• CTCSS/DTCS*
1
• Backlight
• Beep
• Beep Level
• RF Power
*
1
Selected CTCSS or DTCS code is displayed.
*
2
May not be displayed, depending on the transceiver's setting.
*
3
5 digit Own ID is displayed.
• Horn
• Signal Monitor
• Auto Power Off
• Battery Voltage
• Roger Beep
• Lockout
• Quiet mode
3-2
• RX VFO
• Scan Stop Timer
• Scan Restart
• Mic Gain
• Lone Worker
*
2
• AF Minimum Level
*
2
• Own ID*
2
*
3
