ACCESSORIES AND INSTALLATION

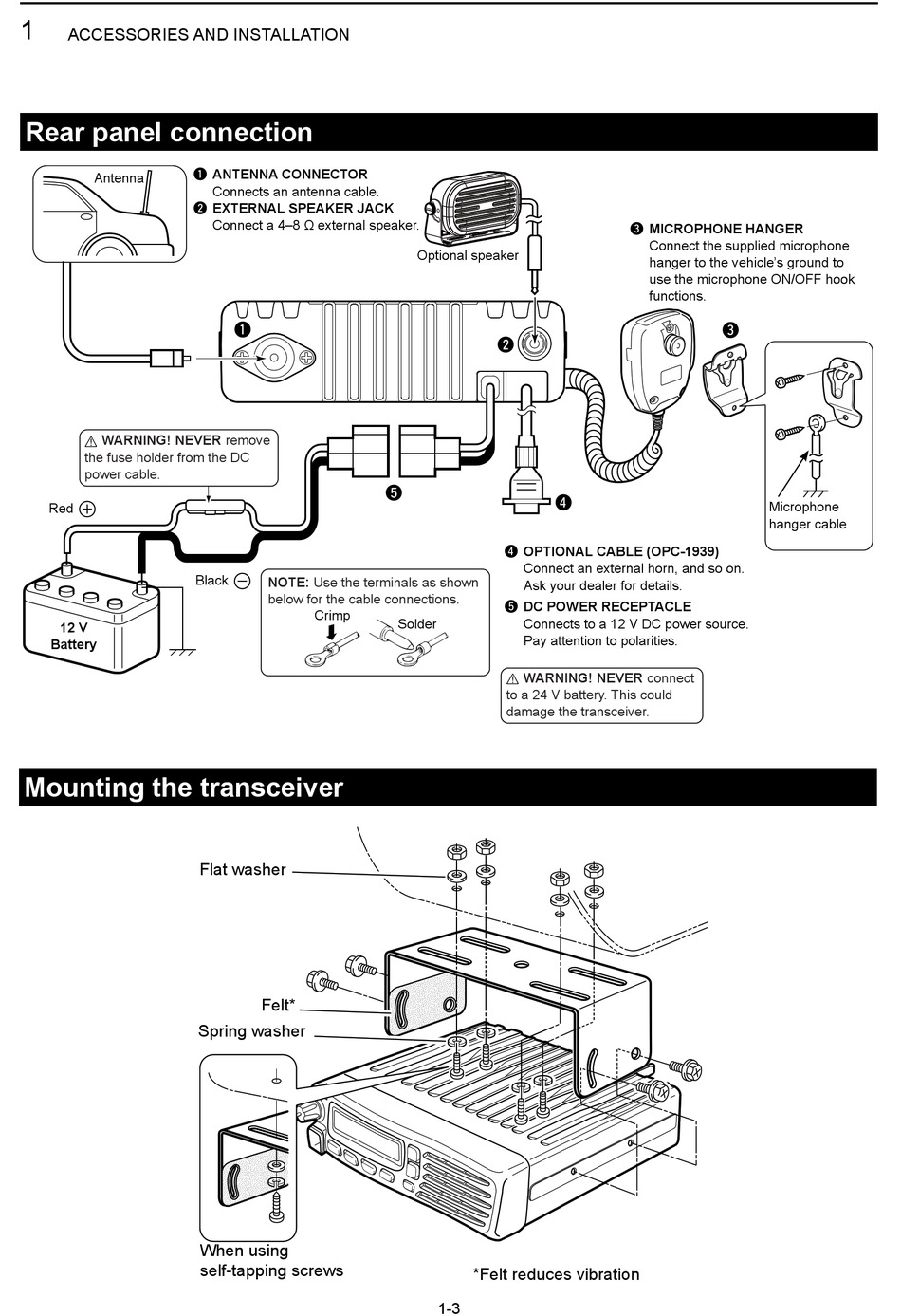

Rear panel connection
Antenna
WARNING! NEVER remove
R
the fuse holder from the DC
power cable.
Red
12 V
Battery
Mounting the transceiver
q ANTENNA CONNECTOR
Connects an antenna cable.
w EXTERNAL SPEAKER JACK
C onnect a 4–8 Ω external speaker.
q
Black
NOTE: Use the terminals as shown
below for the cable connections.
Crimp
Flat washer
Felt*
Spring washer
When using
self-tapping screws
Optional speaker
w
t
r
r OPTIONAL CABLE (OPC-1939)
C onnect an external horn, and so on.
Ask your dealer for details.
t DC POWER RECEPTACLE
Connects to a 12 V DC power source.
Solder
Pay attention to polarities.
WARNING! NEVER connect
R
to a 24 V battery. This could
damage the transceiver.
*Felt reduces vibration
1-3
e MICROPHONE HANGER
Connect the supplied microphone
hanger to the vehicle's ground to
use the microphone ON/OFF hook
functions.
e
Microphone
hanger cable
