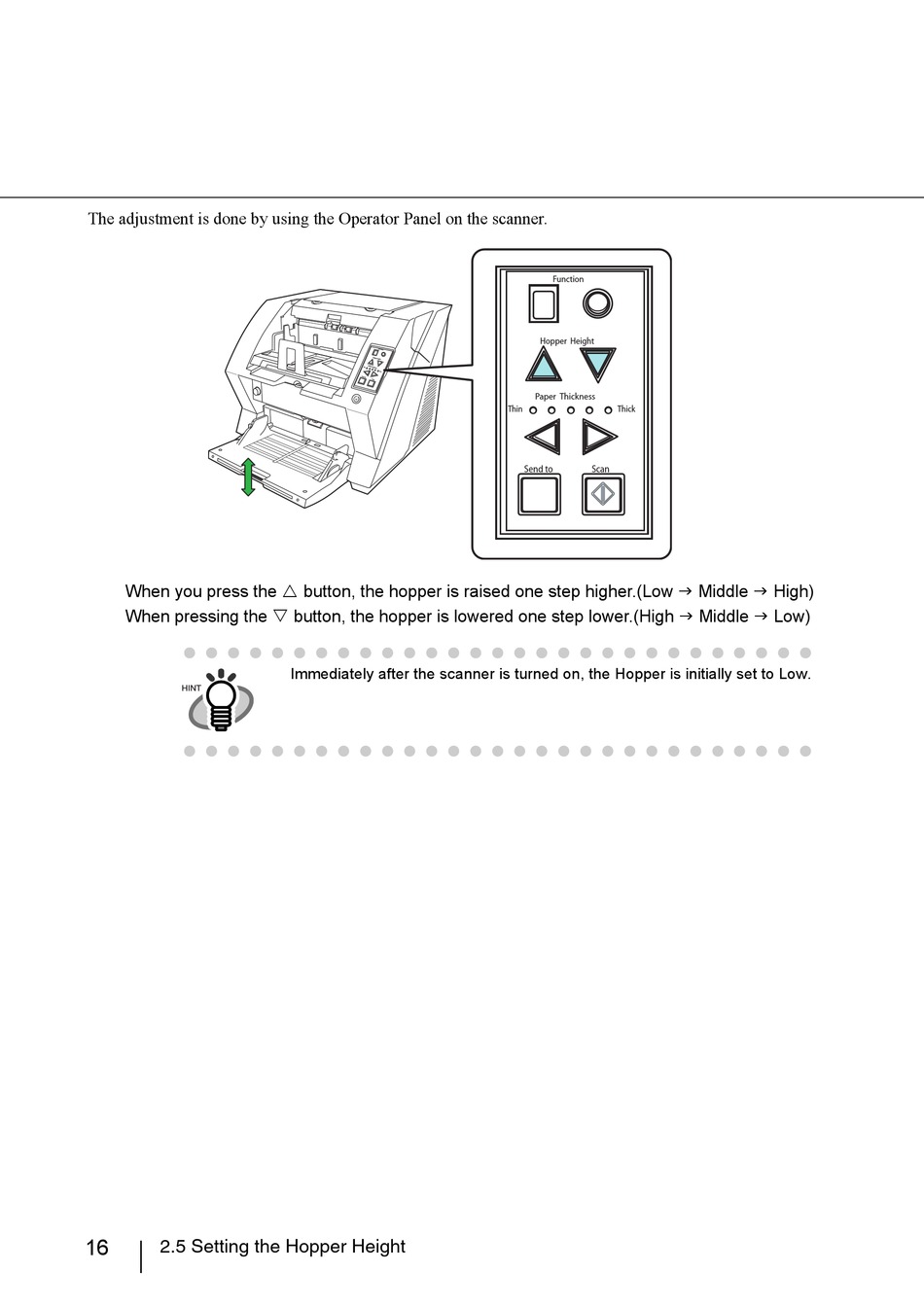

The adjustment is done by using the Operator Panel on the scanner.
Function
Hopper Height
Paper Thickness
Thin
Thick
Send to
Scan
When you press the  button, the hopper is raised one step higher.(Low  Middle  High)
When pressing the  button, the hopper is lowered one step lower.(High  Middle  Low)
Immediately after the scanner is turned on, the Hopper is initially set to Low.
HINT
16
2.5 Setting the Hopper Height
