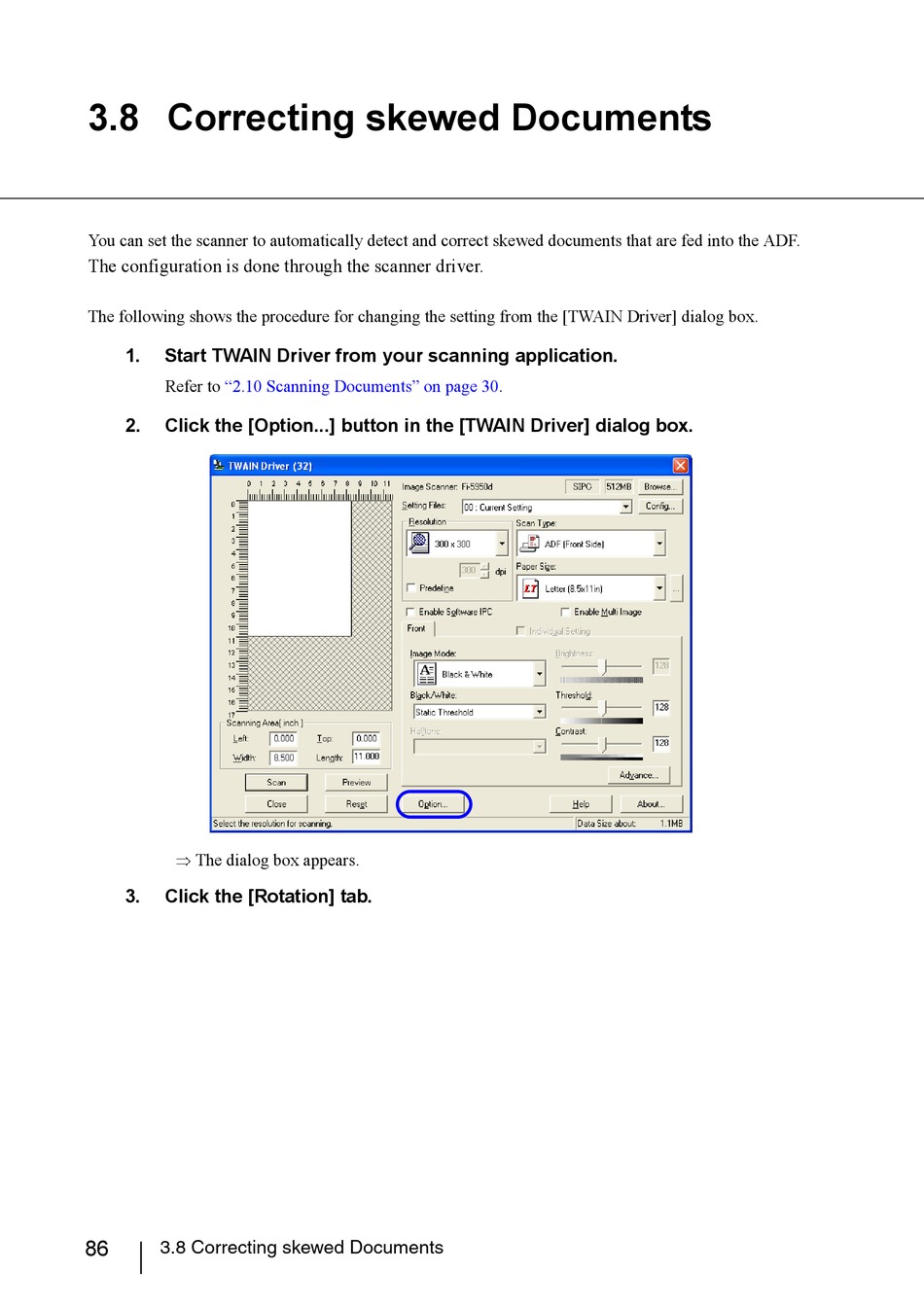

3.8 Correcting skewed Documents

You can set the scanner to automatically detect and correct skewed documents that are fed into the ADF.
The configuration is done through the scanner driver.
The following shows the procedure for changing the setting from the [TWAIN Driver] dialog box.
1. Start TWAIN Driver from your scanning application.
Refer to "2.10 Scanning Documents" on page
2. Click the [Option...] button in the [TWAIN Driver] dialog box.
 The dialog box appears.
3. Click the [Rotation] tab.
86

3.8 Correcting skewed Documents

30.
