5.3 Replacing the Pad

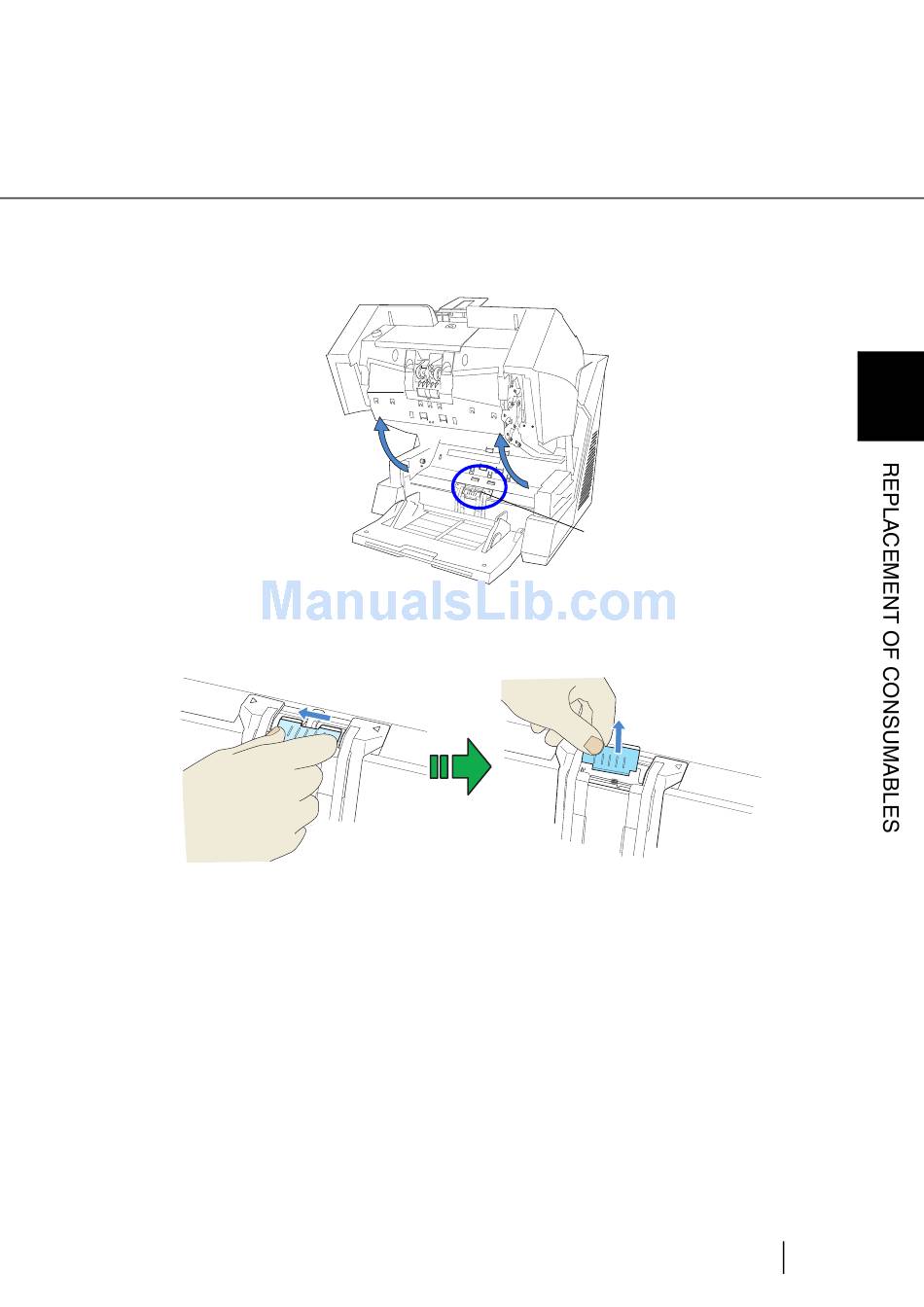

1. Open the ADF cover.
Refer to "2.3 Opening and Closing ADF" on page
2. Move the Pad to the left, than pull it up in order to remove it from the
scanner.
3. Install the new Pad in the reversed order of the removable.
4. Close the ADF cover.
Refer to "2.3 Opening and Closing ADF" on page
5. Reset the Pad counter.
Refer to "5.2 How to check and reset the Consumable/Cleaning Counter" on page
12.
Pad
12.

5.3 Replacing the Pad

5
123.
127
