Using the Console

On-Screen Display

The On-Screen Display (OSD) allows you to switch servers, assign names to your
servers, and set the desired scan time intervals for AutoScan and the OSD menu.
To access the OSD menu, press "Scroll Lock", "Scroll Lock", and the space bar.
Immediately, the OSD overlay screen will appear. The superimposed menu screen is
generated by the Console, and does not affect the function of your server, operating
system, or software function.

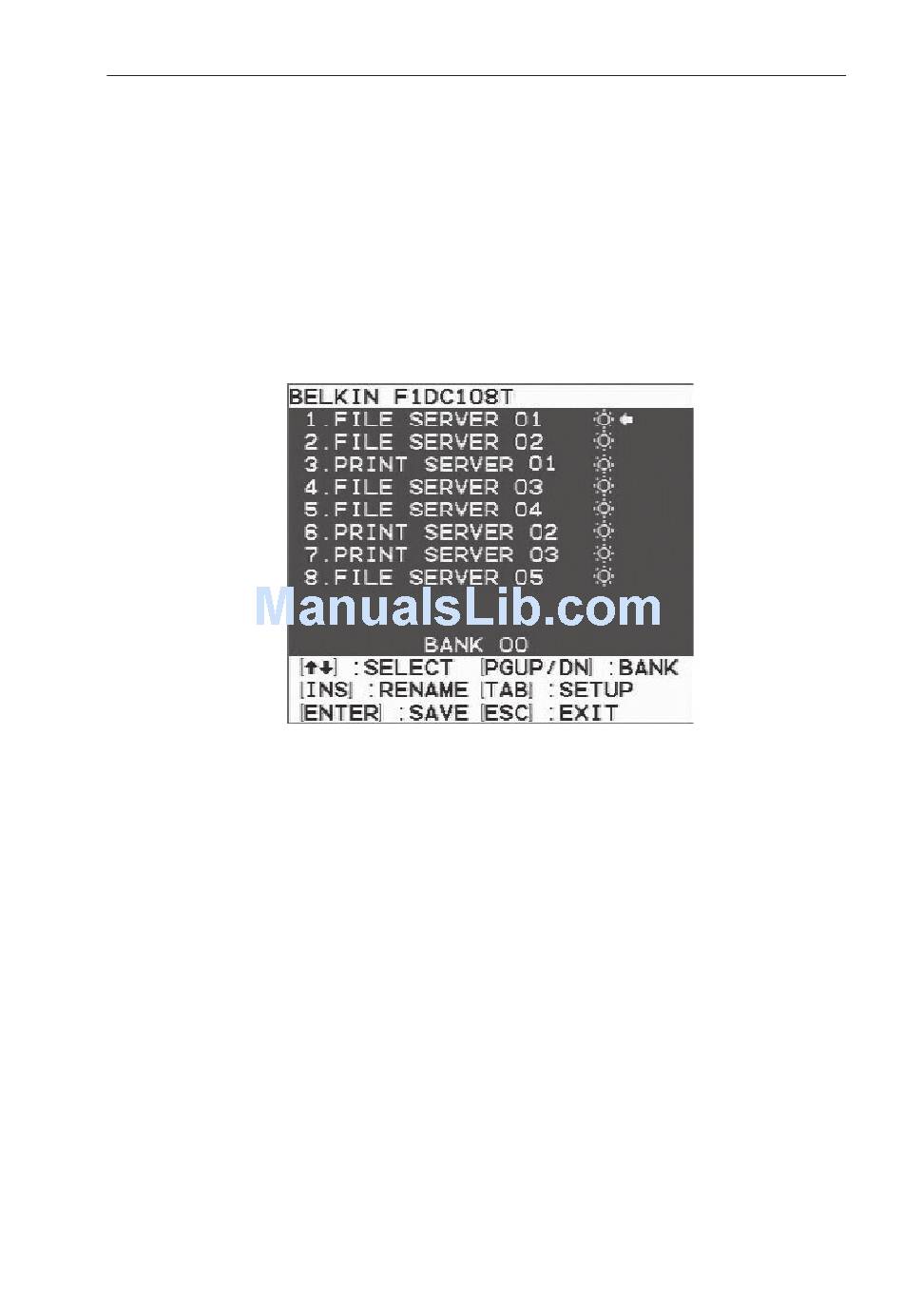

Main OSD Menu Page
The main OSD menu displays the current selected BANK and connected servers to
that BANK. If you have no KVM switches daisy-chained to the Console, the OSD menu
will display "BANK 00".
