Installation
Step 1 Mounting the Console
The Console comes with brackets already attached for mounting the front of the
Console to your rack or enclosure. These brackets allow for maximum rotation of
the LCD panel when displayed. Your packaging includes two alternate sets of front
mounting brackets. Choose the brackets that will give you the desired clearance from
the front rails of your rack or enclosure.
The Console also includes two brackets for mounting the back of the Console, which
can be adjusted to fit the depth of your rack or enclosure.
1.1
Choose the desired front bracket length. Replace the brackets on the front of

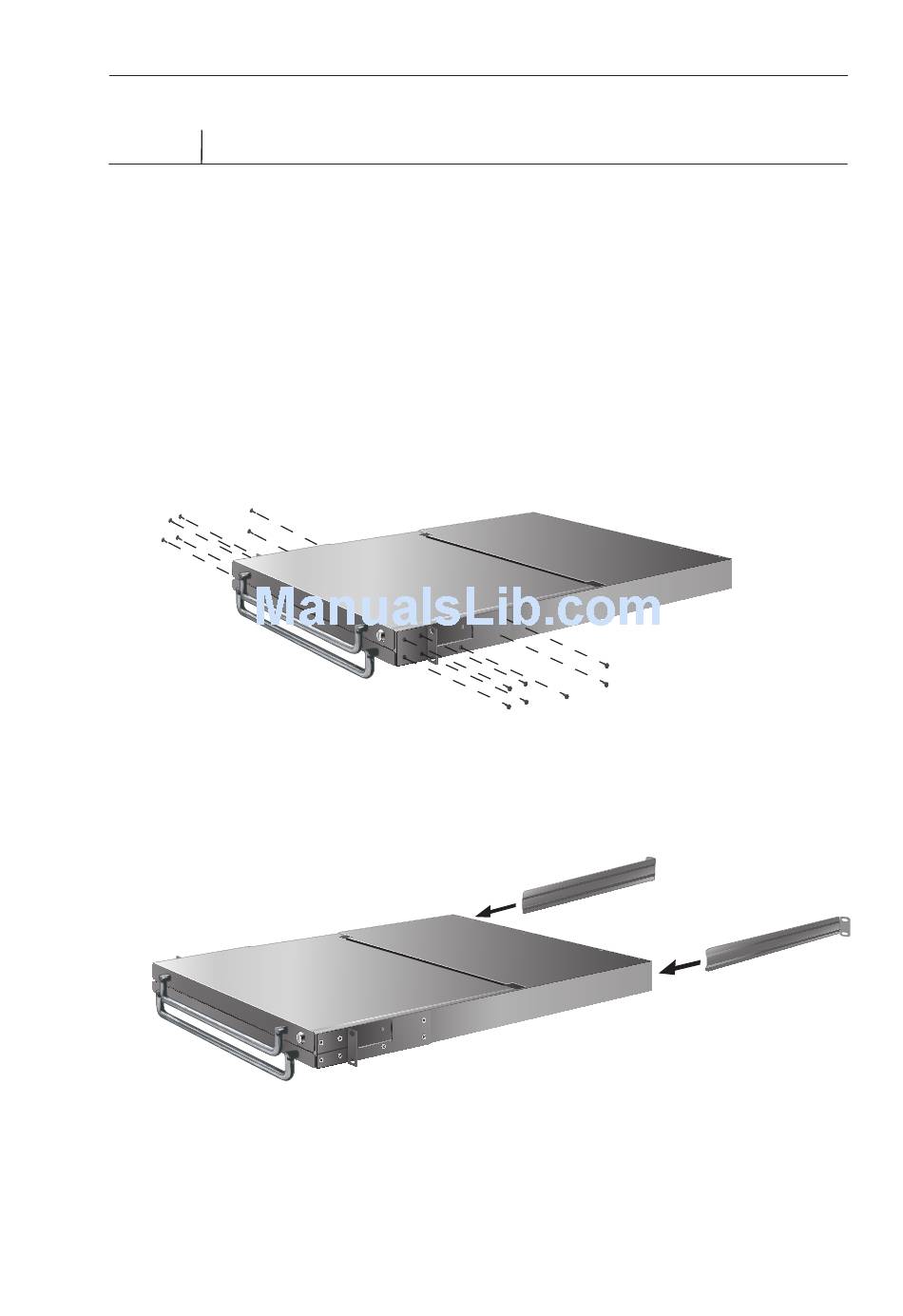

the Console, if necessary. (Refer to diagram below.)
1.2
Insert the rear rack-mount brackets into the side rails of the Console.
(Refer to diagram below.)
