Belkin OmniView F1DC100P Quick Installation Manual

Introduction
This booklet will guide you through the basic steps needed to install
the OmniView ENTERPRISE Quad-Bus Series 1U Rack-Mount Console.
Package Contents:

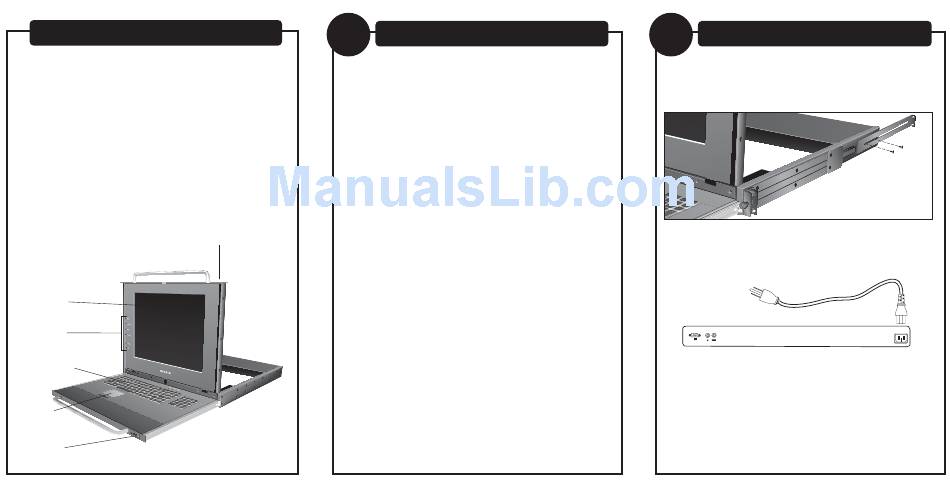

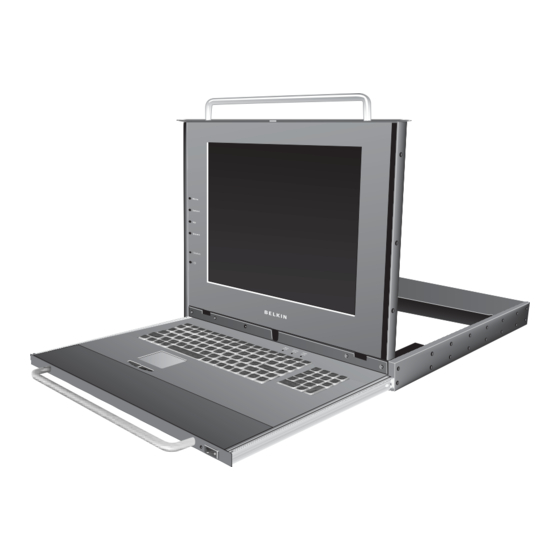

• OmniView™ ENTERPRISE Quad-Bus Series 1U Rack-Mount Console
• Rack-Mount Brackets with Screws
• Quick Installation Guide
• Registration Card
15-Inch TFT/LCD
Active-Matrix
Color Panel
LCD Front-
Panel Controls
105-Key
Keyboard (PS/2)
Touch Pad
(PS/2)
Power Switch
with Status LED
1
Material
Power
Net Weight
Unit Dimension
LCD Display Specifications
Display Type
Resolution
Contrast Ratio
Key-Locking Brightness
Mechanism
Pixel Pitch
Panel Color
Viewing Angle
Keyboard with Touch-Pad Specifications
Keyboard Connection
Touch Pad Connection
Operating life of individual keys
Specifications
Heavy-duty steel
Auto-Switching
100 to 240VAC
50 to 60Hz
48 Watts
17.3kg. (38 lbs.)
19" (W) x 17.5" (D) x 1.75" (H)
15" TFT/LCD active-matrix color
Up to 1024x768 RGB
350:1
250 cd/m2 typical
0.297mm (H) x 0.297mm (W)
16.7 million display colors
140˚ (Horiz.)/115˚ (Vert.)
PS/2
PS/2
8 million cycles
2
Installation
STEP 1: Remove the contents from the box.
STEP 2: Install the rack-mount brackets and place the Console on a rack.
STEP 3: Connect the IEC power cable to an active power outlet and
power up the Console.
The Console offers three power on/off methods:
• a front-control button;
• an LCD power-save (with drawer closure);
• and an LCD panel button.
