Installation

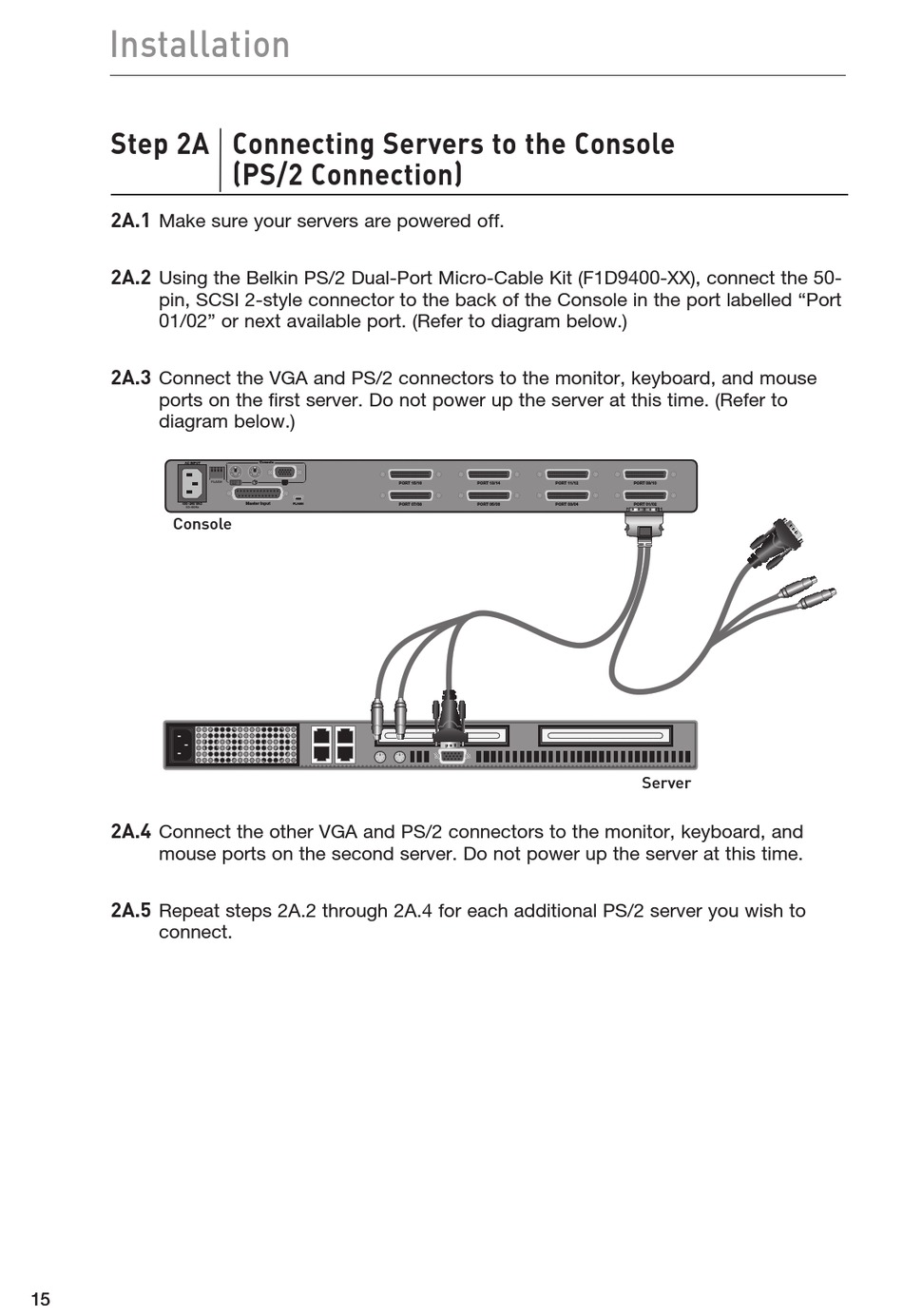

Step 2A Connecting Servers to the Console
2A.1
Make sure your servers are powered off.
2A.2
Using the Belkin PS/2 Dual-Port Micro-Cable Kit (F1D9400-XX), connect the 50-
pin, SCSI 2-style connector to the back of the Console in the port labelled "Port
01/02" or next available port. (Refer to diagram below.)
2A.3
Connect the VGA and PS/2 connectors to the monitor, keyboard, and mouse
ports on the first server. Do not power up the server at this time. (Refer to
diagram below.)
�� �����
������� ���
50~60Hz
Console
2A.4
Connect the other VGA and PS/2 connectors to the monitor, keyboard, and
mouse ports on the second server. Do not power up the server at this time.
2A.5
Repeat steps 2A.2 through 2A.4 for each additional PS/2 server you wish to
connect.
15 15 15
(PS/2 Connection)
�������
FLASH
������ ����� �����
���� ����� ���� ����� ���� �����
���� ����� ���� ����� ���� �����
���� �����
���� �����
Server
