Belkin M Series Installation Manual

Installation Guide
Belkin Secure KVM Terminal to RS-232 Tool Ver. 1 .02 – Administrator Guide Ver.2.0
List of supported SW versions for the KVM Terminal Tool setup:
All SKVM with the below firmware and software versions:
1. EX_SC_15220623_PP_17150523
2. SC446_18160622-PP446_13130622
Compatible models include:
Universal 2nd Gen - Secure KVM

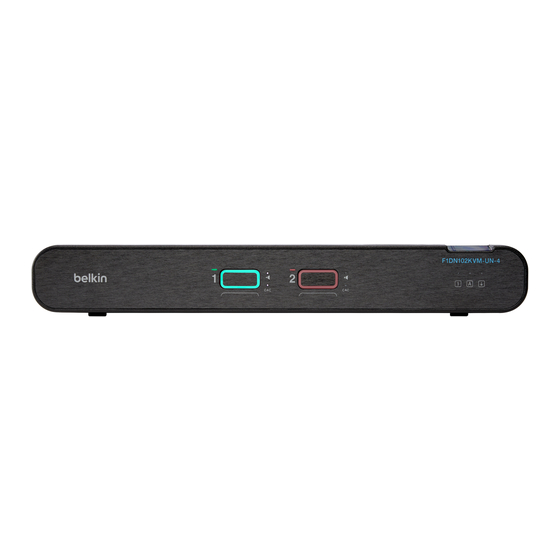

F1DN102KVM-UN-4 F1DN204KVM-UN4M
F1DN104KVM-UN-4 F1DN204KVM-UN-4
F1DN108KVM-UN-4 F1DN208KVM-UN-4
F1DN116KVM-UN-4 F1DN102KVM-UNN4
F1DN202KVM-UN-4 F1DN104KVM-UNN4
F1DN202KVMUNN4M F1DN104KVMUNN4Z
F1DN204KVMUNN4M F1DN108KVM-UNN4
Installation Guide
Hardware Requirements:
1. Belkin Secure KVM M series
2. Windows-compatible PC (Windows 10/11 8GB RAM)
3. USB-to-RJ11 cable (F1DN-RC-USB-CBL)
a. To create your own cable, please refer to the Belkin Administrator
Manual found at: https://www.belkin.com/products/product-resources/
cybersecurity-skvm/resources/.
Installation Instructions:
Download from Belkin Resource Center at:

https://www.belkin.com/products/product-resources/cybersecurity-skvm/
resources/
a. Install the application: Belkin_RS232Term_setup_1.02.exe
b. Choose the location to install files and select "Next"
c. Create a desktop shortcut
d. Select "Install" to begin and follow the installation wizard to complete
the process
Launch the application

a. A window will open – Click About on the upper right side to verify the
version.
Universal 2nd Gen - Modular Secure KVM
F1DN202KVM-UNN4
F1DN102MOD-BA-4
F1DN204KVM-UNN4
F1DN104MOD-BA-4
F1DN204KVMUNN4Z F1DN108MOD-BA-4
F1DN202MOD-BA-4
F1DN204MOD-BA-4
F1DN208MOD-BA-4
F1DN102MOD-DD-4
Software Requirements:
1. OS: Windows 10/11 8GB RAM
2. Belkin SKVM M series Terminal to RS-232 Software version 1.02
Administrator PC/
F1DN102MOD-HH-4
F1DN102MOD-PP-4
F1DN104MOD-DD-4
F1DN104MOD-HH-4
F1DN104MOD-PP-4
F1DN202MOD-DD-4
F1DN202MOD-HH-4

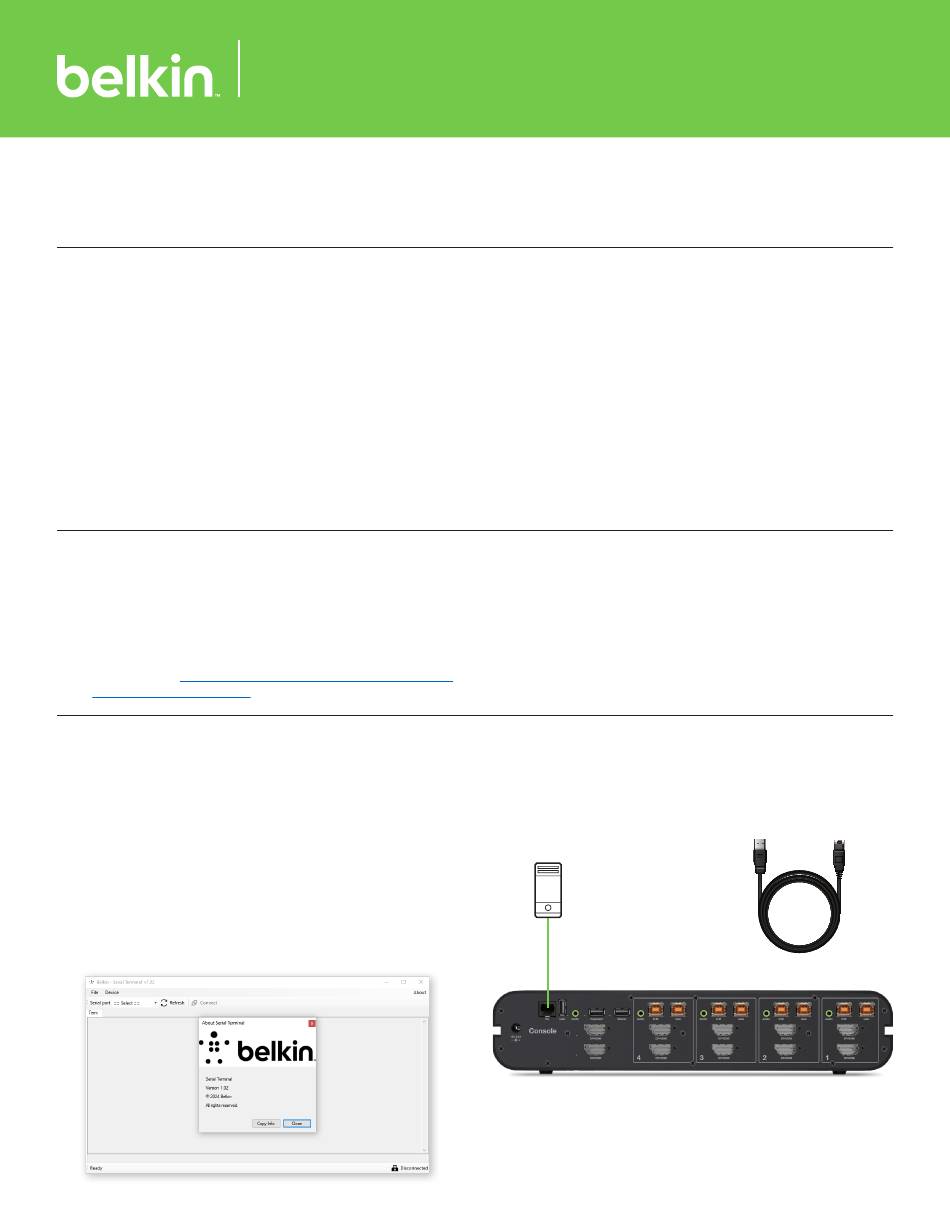

b. Connect the Administrator PC and SKVM as follows:
Terminal to
RS-232 Tool
USB type A to
RJ14/RS-232
Belkin Secure KVM
c. Using the USB-A to RJ14/RS-232 cable, connect USB-A to the PC and
RJ14/RS-232 to the RCU port on the SKVM.
d. Connect the AC power cable to the SKVM.
F1DN202MOD-PP-4
F1DN204MOD-DD-4
F1DN204MOD-HH-4
F1DN204MOD-PP-4
USB-A to RJ14
0000-00000 Rev.A00
