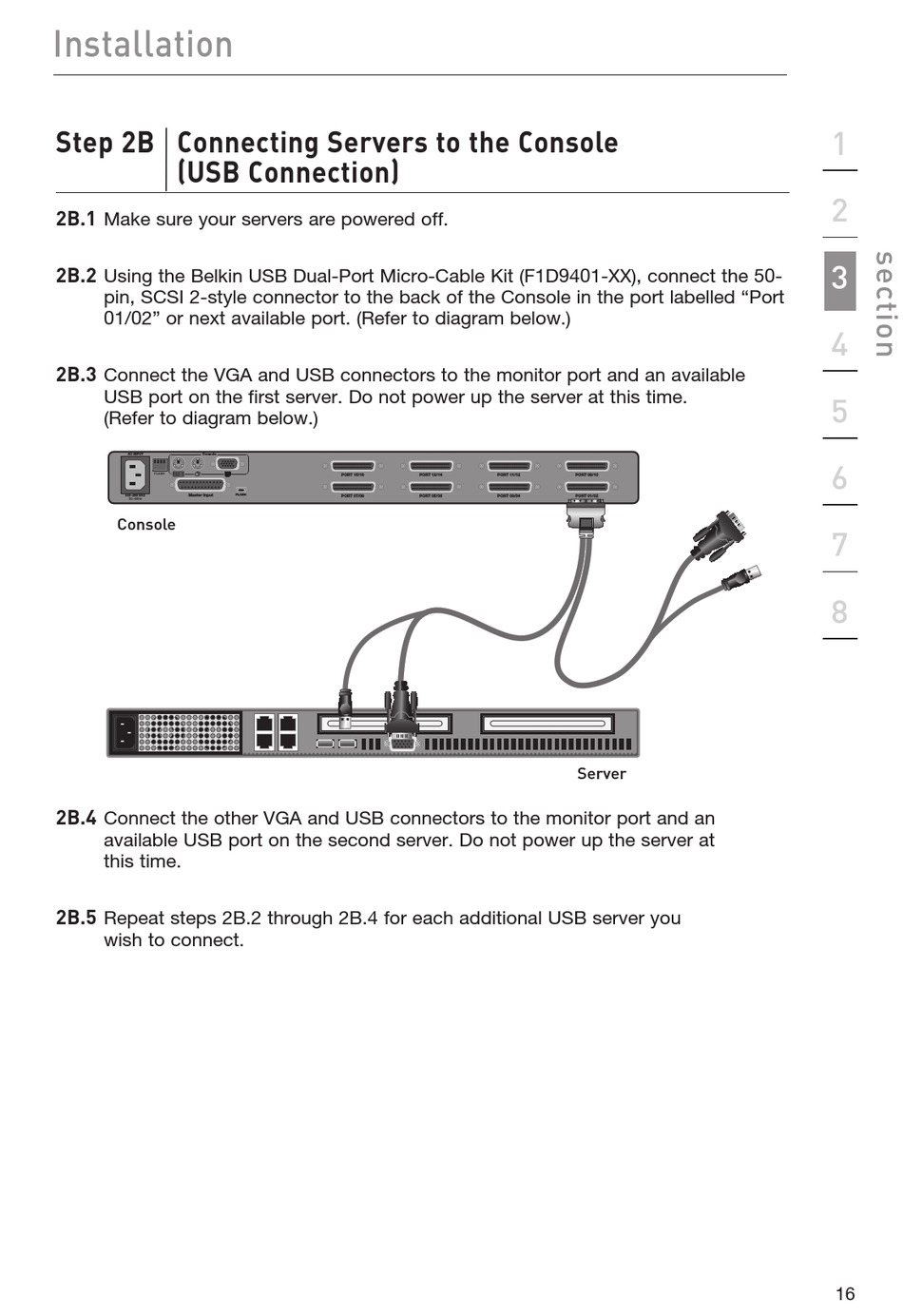

Belkin OmniView PRO2 Rack User Manual page 16

Installation
Step 2B Connecting Servers to the Console
(USB Connection)
2B.1
Make sure your servers are powered off.
2B.2
Using the Belkin USB Dual-Port Micro-Cable Kit (F1D9401-XX), connect the 50-
pin, SCSI 2-style connector to the back of the Console in the port labelled "Port
01/02" or next available port. (Refer to diagram below.)
2B.3
Connect the VGA and USB connectors to the monitor port and an available
USB port on the first server. Do not power up the server at this time.
(Refer to diagram below.)
�������
�� �����
FLASH
������� ��� ������ �����
50~60Hz
Console
2B.4
Connect the other VGA and USB connectors to the monitor port and an
available USB port on the second server. Do not power up the server at
this time.
2B.5
Repeat steps 2B.2 through 2B.4 for each additional USB server you
wish to connect.
���� �����
�����
���� �����
���� ����� ���� ����� ���� �����
���� ����� ���� ����� ���� �����
Server
1
2
3
4
5
6
7
8
