Installation

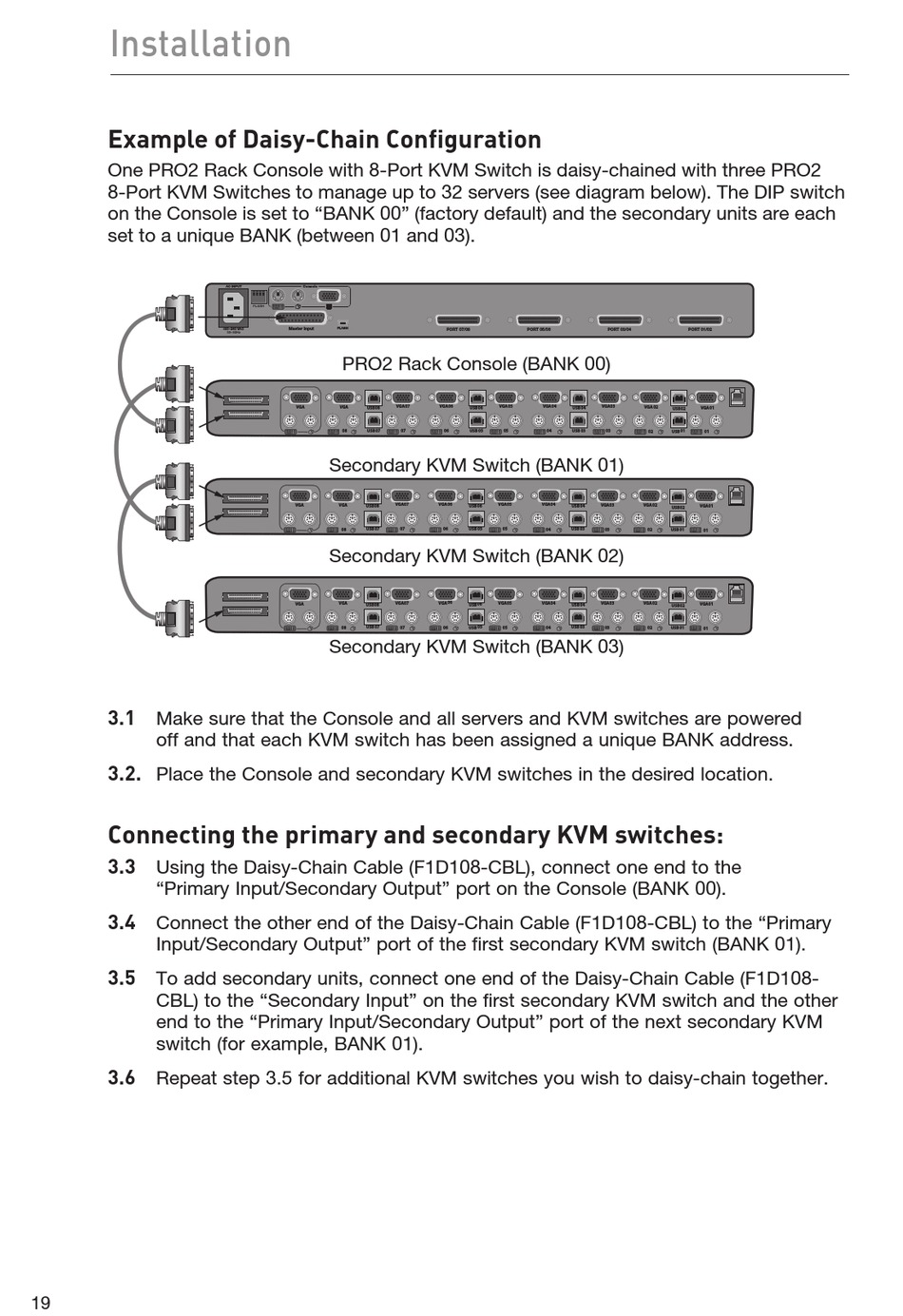

Example of Daisy-Chain Configuration
One PRO2 Rack Console with 8-Port KVM Switch is daisy-chained with three PRO2
8-Port KVM Switches to manage up to 32 servers (see diagram below). The DIP switch
on the Console is set to "BANK 00" (factory default) and the secondary units are each
set to a unique BANK (between 01 and 03).
3.1
Make sure that the Console and all servers and KVM switches are powered
off and that each KVM switch has been assigned a unique BANK address.
3.2.
Place the Console and secondary KVM switches in the desired location.
Connecting the primary and secondary KVM switches:
3.3
Using the Daisy-Chain Cable (F1D108-CBL), connect one end to the
"Primary Input/Secondary Output" port on the Console (BANK 00).
3.4
Connect the other end of the Daisy-Chain Cable (F1D108-CBL) to the "Primary
Input/Secondary Output" port of the first secondary KVM switch (BANK 01).
3.5
To add secondary units, connect one end of the Daisy-Chain Cable (F1D108-
CBL) to the "Secondary Input" on the first secondary KVM switch and the other
end to the "Primary Input/Secondary Output" port of the next secondary KVM
switch (for example, BANK 01).
3.6
Repeat step 3.5 for additional KVM switches you wish to daisy-chain together.
19
�������
�� �����
FLASH
������ �����
������� ��� �����
50~60Hz
PRO2 Rack Console (BANK 00)
���
���
��� ��
��� ��
��
Secondary KVM Switch (BANK 01)
��� ���
��� ��
�� ��� ��
Secondary KVM Switch (BANK 02)
��� ���
��� ��
��� ��
��
Secondary KVM Switch (BANK 03)
���� ����� ���� �����
��� �� ��� �� ��� �� ��� ��
��
���
��
�� �� ��� �� ��
��� �� ��� �� ��� �� ��� ��
��� ��
�� �� ��� �� �� ��
��
��� �� ��� ��� �� ��� ��
��� ��
�� �� ��� �� ��
��
���� ����� ���� �����
��� �� ��� ��
��� ��
��� ��
��� ��
��� ��
�� �� ��� ��
��
��� ��
��� ��
��� �� ��� ��
��� ��
��� �� �� ��
�� ��� ��
��� �� ��� ��
��� �� ��� ��
��
���
��� ��
�� �� ��� �� ��
