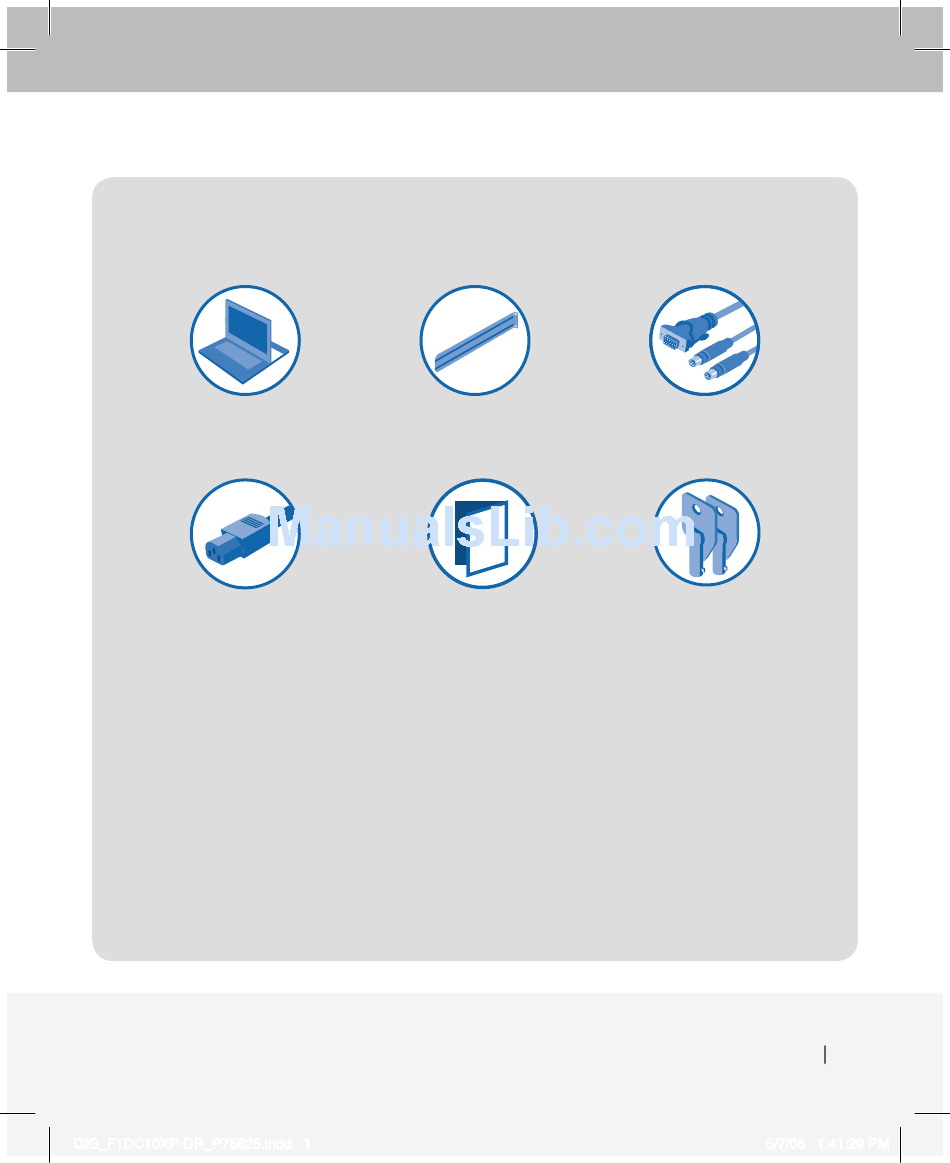

Package Contents
15" or 17" LCD
Bracket Kit
VGA, PS/2 Cable Kit
Rack Console with
Dual-Rail Technology
Keys
IEC Power Cable
Quick Installation
Guide
Introduction
This booklet will guide you through the basic steps needed to install the
15" or 17" LCD Rack Console with Dual-Rail Technology.
Introduction
1
QIG_F1DC10XP-DR_P75625.indd 1
5/7/08 1:41:29 PM
Advertisement
Table of Contents
Related Manuals for Belkin F1DC101P-SR - 17" LCD Rack Console
Summary of Contents for Belkin F1DC101P-SR - 17" LCD Rack Console
-
Page 1: Package Contents
Package Contents 15" or 17" LCD Bracket Kit VGA, PS/2 Cable Kit Rack Console with Dual-Rail Technology Keys IEC Power Cable Quick Installation Guide Introduction This booklet will guide you through the basic steps needed to install the 15" or 17" LCD Rack Console with Dual-Rail Technology. Introduction QIG_F1DC10XP-DR_P75625.indd 1 5/7/08 1:41:29 PM... -
Page 2: Specifications
Specifications Material Heavy-duty steel Power Auto-switching 100 to 240VAC 50 to 60Hz 48 watts Net Weight 30.6 lbs. (13.9kg.) [F1DC100P-DR] 32.6 lbs. (14.8kg.) [F1DC101P-DR] Unit Dimensions 19 (W) x 26.3 (D) x 1.70 (H) in. (483.2 x 668.51 x 43.18mm) [F1DC100P-DR and F1DC101P-DR] Minimum Rack-Mount Depth 26 in. - Page 3 Panel Color 16.0 million display colors [F1DC100P-DR] 16.7 million display colors [F1DC101P-DR] Response Time Rising 5ms, Decay 11ms [F1DC100P-DR] Rising 2ms, Decay 14ms [F1DC101P-DR] Keyboard Type Laptop style Keyboard Connection PS/2 Mouse Type Touchpad style Mouse Connection PS/2 Operating Life of Individual Keys 8 million cycles Key-Locking Handle...
-
Page 4: Installation
Installation Step 1 Place the console inside the rack. Step 2 Mount the front brackets to the rack. Step 3 Connect the rear brackets to the Console with the provided screws. Step 4 Adjust the length of the rack-mount brackets. Installation QIG_F1DC10XP-DR_P75625.indd 4 5/7/08 1:41:30 PM... - Page 5 Step 5 Lock the adjustable brackets by tightening the rear screws. Step 6 Connect the IEC power cable to an active power outlet and power up the Console. Installation QIG_F1DC10XP-DR_P75625.indd 5 5/7/08 1:41:30 PM...
- Page 6 Connecting the KVM Switch or Server Step 1 Make sure your KVM switch or server is powered OFF. Step 2 Using the included PS/2 KVM Cable Kit, connect one set of VGA and PS/2 connectors to the back of the Console. (Refer to diagrams below.) Step 3 Connect the other end of the Cable Kit to the console monitor, keyboard, and mouse ports on your KVM switch or server.
- Page 7 You are now ready to use your LCD Rack Console. Console Console KVM Switch Server The Console offers two power on/off methods: • a power switch on the rear, and • an LCD power-save (with drawer closure). Connecting the KVM Switch or Server QIG_F1DC10XP-DR_P75625.indd 7 5/7/08 1:41:30 PM...
-
Page 8: Troubleshooting
Troubleshooting My Console doesn’t appear to be on. Make sure that the power switch located at the front of the keyboard drawer is “on” and that the power cable is connected properly. What is the maximum video resolution that the LCD panel supports? The LCD panel supports a resolution of up to 1024x768 (F1DC100P-DR) and 1280x1024 (F1DC101P-DR). -
Page 9: Start Here
15” or 17” LCD Rack Console with Dual-Rail Technology Start Here © Quick Installation Guide F1DC100P-DR F1DC101P-DR QIG_F1DC10XP-DR_P75625.indd 9 5/7/08 1:41:40 PM... - Page 10 Express Business Park, Shipton Way Rushden, NN10 6GL, United Kingdom +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax © 2008 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. P75625 QIG_F1DC10XP-DR_P75625.indd 10...
