4.2.2 Scanner Unit

When removing the Scanner Unit, take care not to break the
C A U T I O N
ground cable, which is connected to the printer.
With the FFC disconnected, take care not to break the ferrite
cores by hitting them against each other.
1. Remove the Panel Assy. (p.80)
2. Remove the FFC Cover.
3. Disconnect the FFCs (x2) of the Scanner Unit from the Main Board, together with the
FFC Clamp.
4. Remove the screws (x2).
5. Lift the Scanner Unit carefully, and unplug the ground cable from the printer frame.
C H E C K
Remove the Scanner Unit, while holding it in an open position,
P O I N T
from the printer body.
(Continued to next page)
Disassembly and Assembly
Chassis Assy (LCD Assy)
Removal of Exterior Parts
Disconnect ground cable from frame
FFC Cover
FFC Clamp

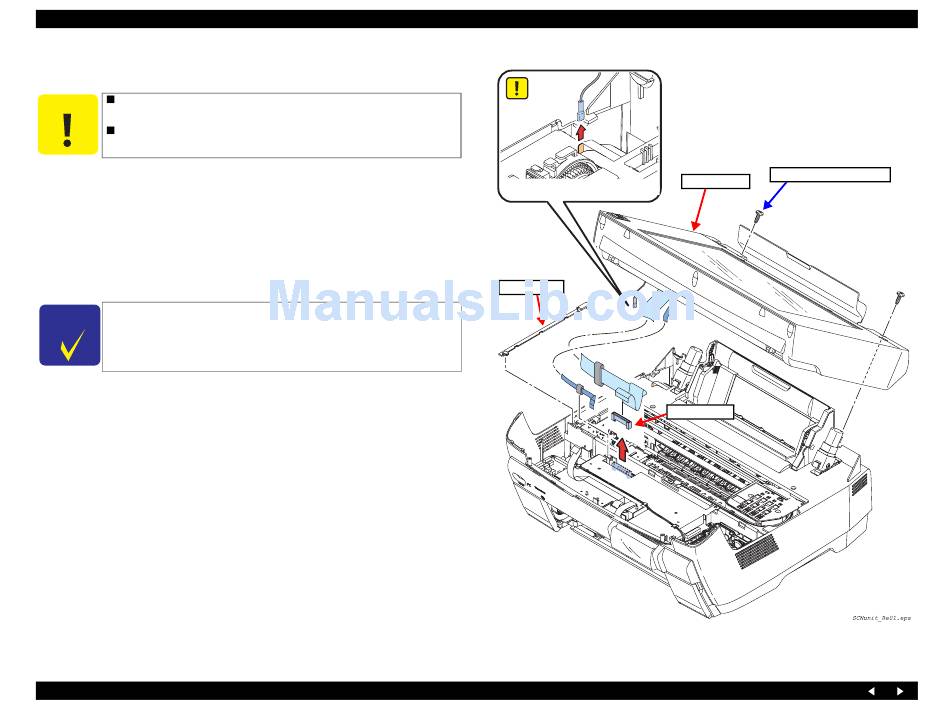

Figure 4-5. Removing the Scanner Unit
Revision A
C.B.P-Tite 3x10 F/NI (x2)
Scanner Unit
Torque: 0.6 ± 0.1N
⋅
m
