SurroundVideo® O mni G 2

Corner Mount

For a corner mount installation, the AV-WMJB wall mount, AV-CRMA corner mount, and SO-CAP
mount cap are required (sold separately). A corner mount should only be attached onto hard corner
surfaces including wood, plastic, metal, and concrete.
1. Using the Mounting template, prepare the mounting provisions for the camera installation.
2. Connect the wall mount cap and wall mount.
3. Attach the AV-JBA (Junction Box Adapter) to the Corner Mount Adapter (Figure 1).
4. Remove the conduit plug on the junction box adapter and connect ¾" NPT conduit to the
junction box adapter (Figure 1).

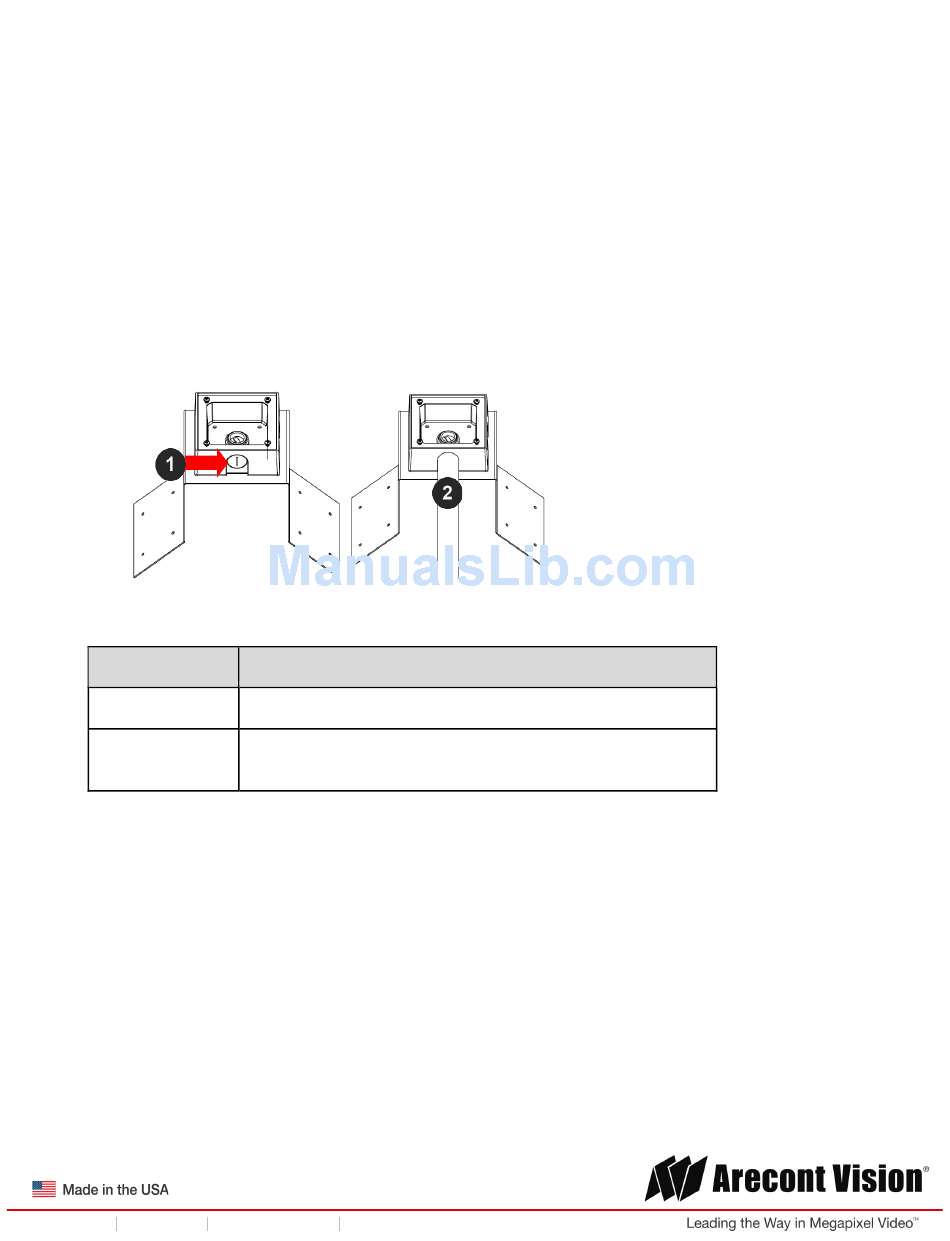

Figure 1: Attach conduit to SV-JBA junction box adapter
Reference #
1
2
NOTE: Use silicon or water pipe seal tape to make sure no water leakage between conduit pipe
and junction box adapter.
5. Run the Ethernet cable and outside power cable (if necessary) through the supplied rubber
gasket and then through the Junction Box Adapter and SV-WMJB, Wall Mount Adapter. Ensure
the gasket is seated properly.
6. Attach the Wall Mount Adapter (SV-WMJB) to the Corner Mount Adapter (AV-CRMA) as shown
in Figure 2.
Page | 19 support@arecontvision.com
+1.818.937.0700 877.CAMERA.8
Description
Remove conduit plug
Connect ¾" NPT conduit to junction box adapter (ensure
use of water seal tape)
