SurroundVideo® O mni G 2
Reference #
1
2
3
4
5
6. Route the cable tree from the camera around the rear of the camera module and secure all
cables. See the Connections section for details on how to connect the camera.
7. Check that the indicator LED's are illuminated to the desired conditions (see LED Indicator
table).
Page | 15 support@arecontvision.com
+1.818.937.0700 877.CAMERA.8

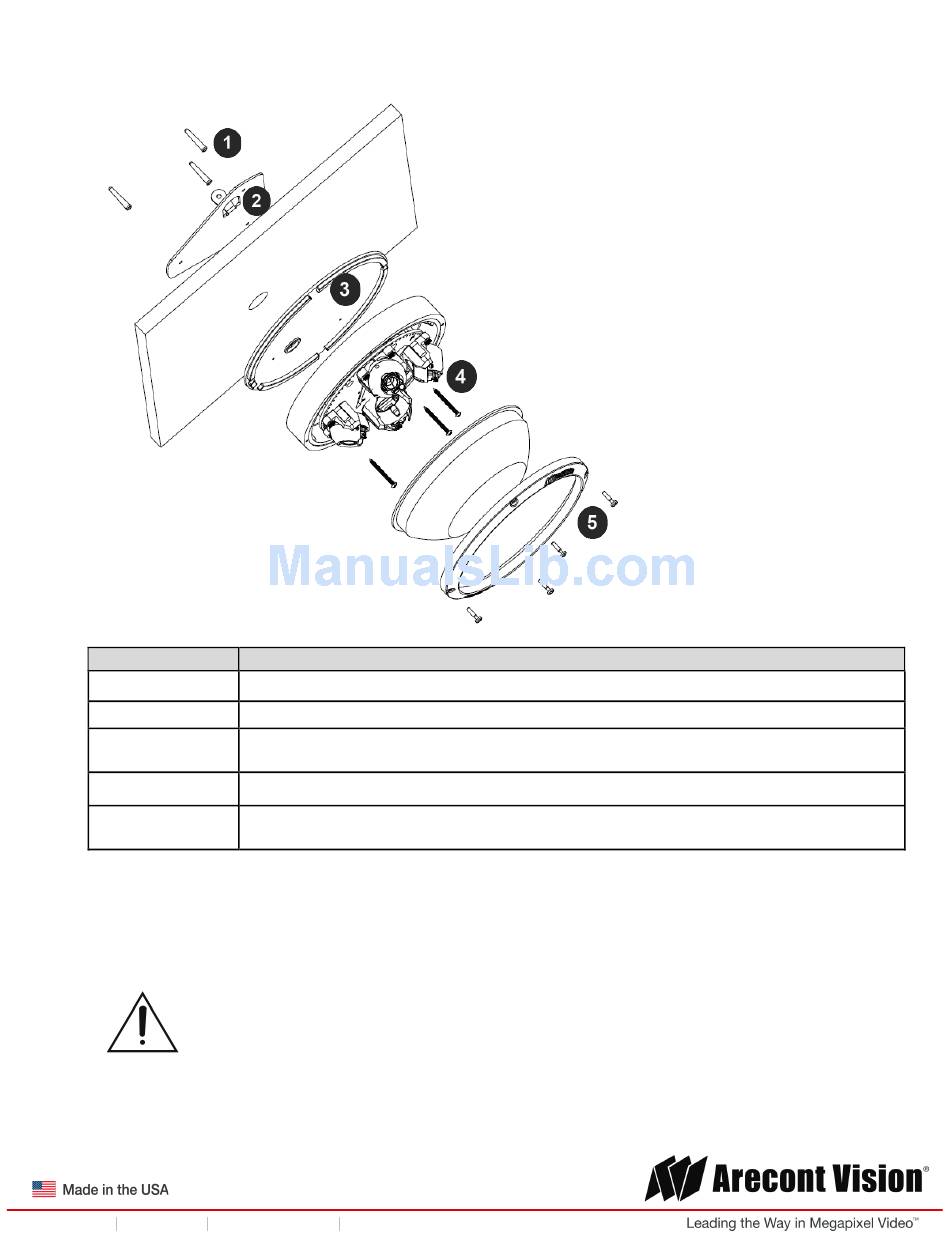

Description
Install 3 supplied dry wall anchors using the supplied mounting template
Attach supplied (optional) tether plate
Attach supplied rubber gasket to the camera housing by threading the camera
cable through the hole in the gasket (ensure the gasket is seated properly)
Align 3 supplied screws with the dry wall anchors and screw camera into place
Attach the dome cover, ensuring the rubber gasket is properly seated, with the
tamper resistant screws
CAUTION! The captive fasteners must be used to properly secure the dome cover. Failure
to use the captive fastener may result in serious injury. When mounting the dome cover to
the camera housing, ensure that the gasket is properly seated and not folded. Failure to
do so may result in water and dust ingress. Water damage from improper installation is not
covered by the warranty!
